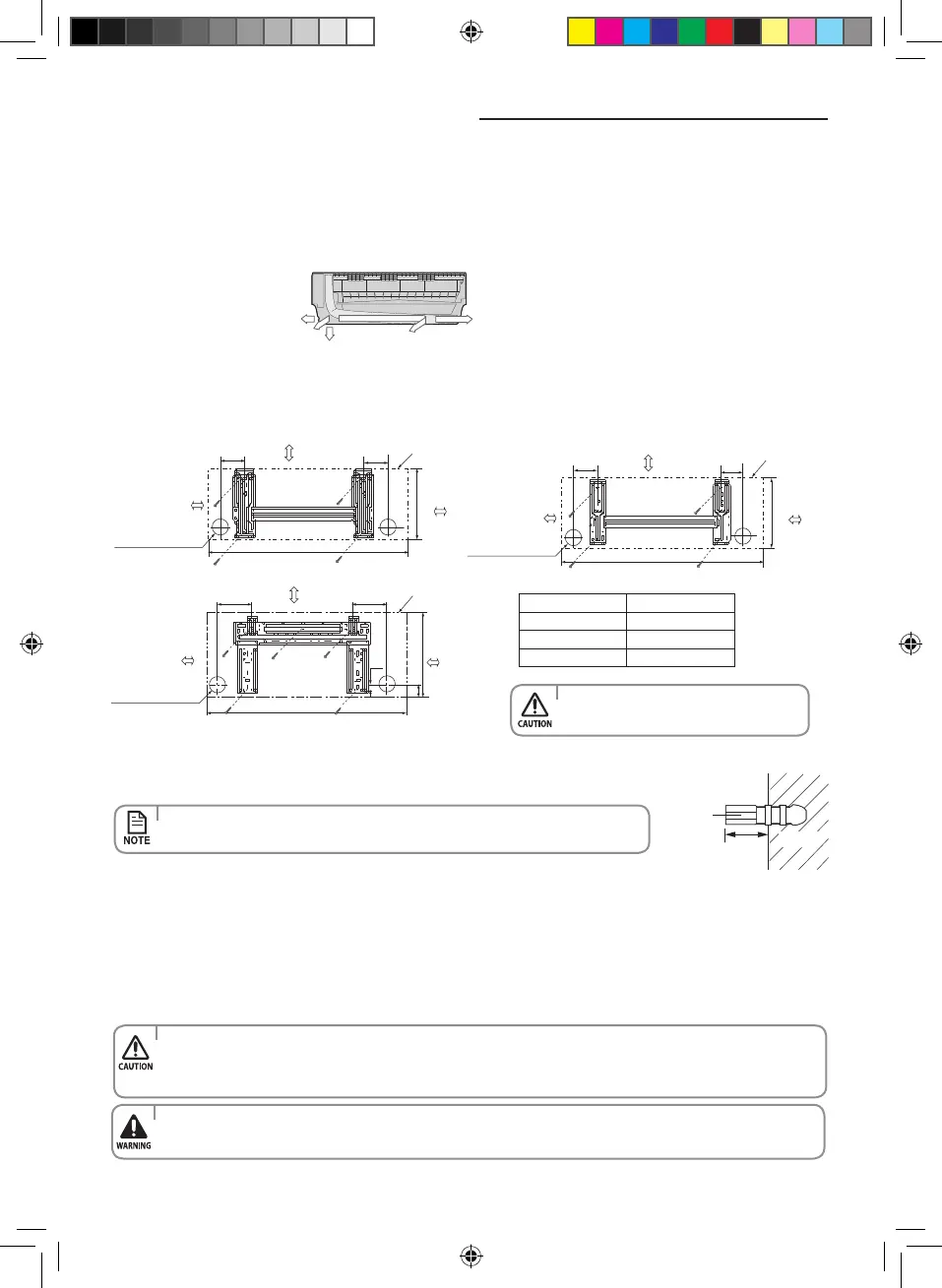

Fixing the installation plate
You can select the direction of the drain hose depending on where you want to install the indoor unit. Therefore before xing
the installation plate to a wall or a window frame, you must determine the position of the 65mm hole through which the cable,
pipe and hose pass to connect the indoor unit to the outdoor unit.
When facing the wall, the pipe and cable can be connected from the:
1. Determine the position of the pipe and drain hose hole as seen in the picture and drill the hole with an inner diameter
of 65mm so that it slants slightly downwards.
Wall
<20mm
Plastic
Anchor
2. Fix the indoor unit.
If you x the indoor unit on a wall
(1) Fix the installation plate to the wall giving attention to the weight of the indoor unit.
If you x the indoor unit on a window frame
(1) Determine the positions of the wooden uprights to be attached to the window frame.
(2) Attach the wooden uprights to the window frame giving attention to the weight of the indoor unit.
(3) Attach the installation plate to the wooden upright using tapping screws.
If you x the indoor unit on a gypsum board
(1) Use stud nder to nd out locations of the studs.
(2) Fix the plate hanger on two studs.
• Ifyoumounttheplatetoaconcretewallusingplasticanchors,makesurethatgaps
between the wall and the plate, created by projected anchor, is less than 20mm.
• Makesurethatawallcanwithstandtheweightoftheproduct.Ifyouinstalltheproductinaplacewhereitisnot
strong enough to withstand the product weight, the unit could fall and cause injury.
• Searchforotherspotsiftherearelessthantwostuds,orthedistancebetweenthestudsaredierentfromthe
plate hanger.
• Fixtheinstallationplatewithoutincliningtooneside.
A
C
B
D
D
Direction of pipe
•Right(A)
•Left(B)
•Underside_right(C)
•Rear_rightorleft(D)
100
95
800
275
110
100
275
315
940
293
163
45
1045
21.5
A
B
C
• Makesuretodrillonlyoneholeafter
choosing the direction of the pipe.
150mm or more to ceiling
150mm or more to ceiling
150mm or more to ceiling
120mm or more
to wall
Rear side refrigerant
pipe hole Φ65
Indoor unit outline
120mm
or more
to wall
120mm
or more
to wall
120mm
or more
to wall
Rear side refrigerant
pipe hole Φ65
Indoor unit outline
Indoor unit outline
120mm or more
to wall
Rear side refrigerant
pipe hole Φ65
120mm
or more
to wall
model Plate Type
09/12
A
18
B
24
C
English-34
