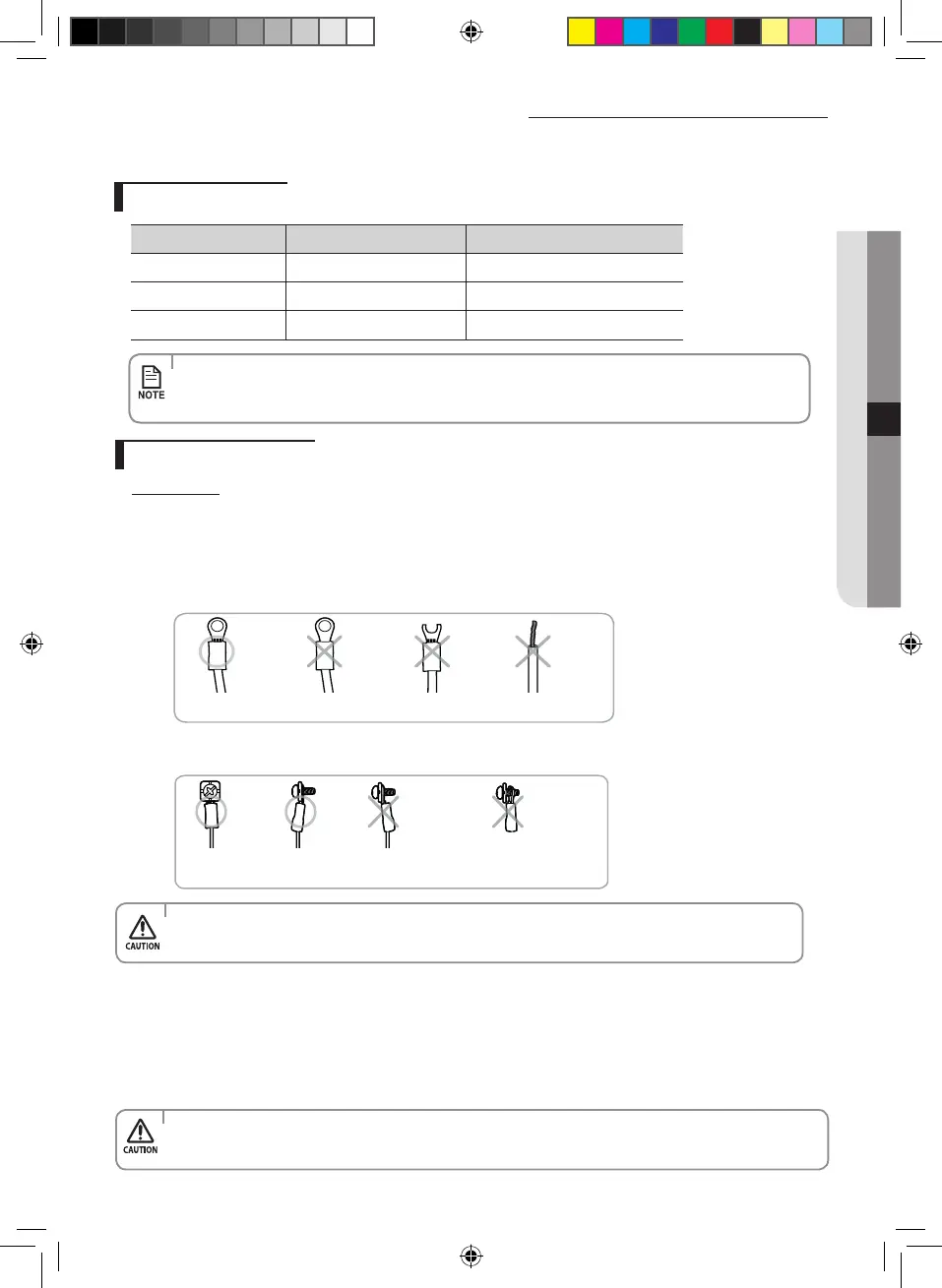

Connecting the assembly cable
Cable specication
Connecting the cable
Electrical work
(1) For electrical and earth works, comply with the ‘technical standards of electrical installations’ and the the ‘wiring
regulations’ of the Local wiring regulations.
(2) Tightentheterminalblockscrewtounder1.2N•m(12kgf•cm).
(3)Precautionswhenconnectingterminalblocksoftheindoorunit
Before connecting, make sure the connecting part of the terminal socket is facing upwards.
Upside down
The terminal
socketis damaged.
There is no ring terminalto
cover the wire.
There must be no space between the terminal and the screw when connected.
- Any remaining space may become a re hazard due to overheating of the electrical contact.
The terminal socket
is upside down.
Either the screw is not fitted
properly or there is a space
between the screw and the
ring terminal.
• Fortheterminalblockwiring,useawirewitharingterminalsocketonly.
Regular wires without a ring terminal socket may become a re hazard due to overheating of the electrical
contact during a wiring work.
• Donotconnecttwoormoredierentcablestoextendthelength.Itmaycausere.
1. Extend the assembly cable if necessary.
When you install the unit, make rst refrigerant connections and then electrical connections.
Connect the air conditioner to grounding system before performing the electrical connection.
If unit is uninstalled, rst disconnect electrical cables, then refrigerant connections.
If the outdoor unit is more than 4.5 meters away from the indoor unit, you must extend the cable. The maximum length of the
cable is 15(09/12/18) / 20(24) meters.
Model Power cable Interconnection cable
09/12
3G1.5 mm² H05VV-F 3G1.5 mm² H07RN-F
18
3G2.5 mm² H05VV-F 3G2.5 mm² H07RN-F
24
3G2.5 mm² H05VV-F 4G2.5 mm² H07RN-F
• Connectthepowercabletotheauxiliarycircuitbreaker.Ifeverypolefailstoconnecttothepowersupply,
it must be incorporated in a wire with a contact opening of ≥3 mm.
• Useshieldcable(Category5;lessthan50pF/m)fornoisyenvironmentalsite.
English-35
INSTALLATION07
Midea ODM Africa CO IB&IM_DB68-00000A_EN.indd 35 2014/5/26 10:27:16
