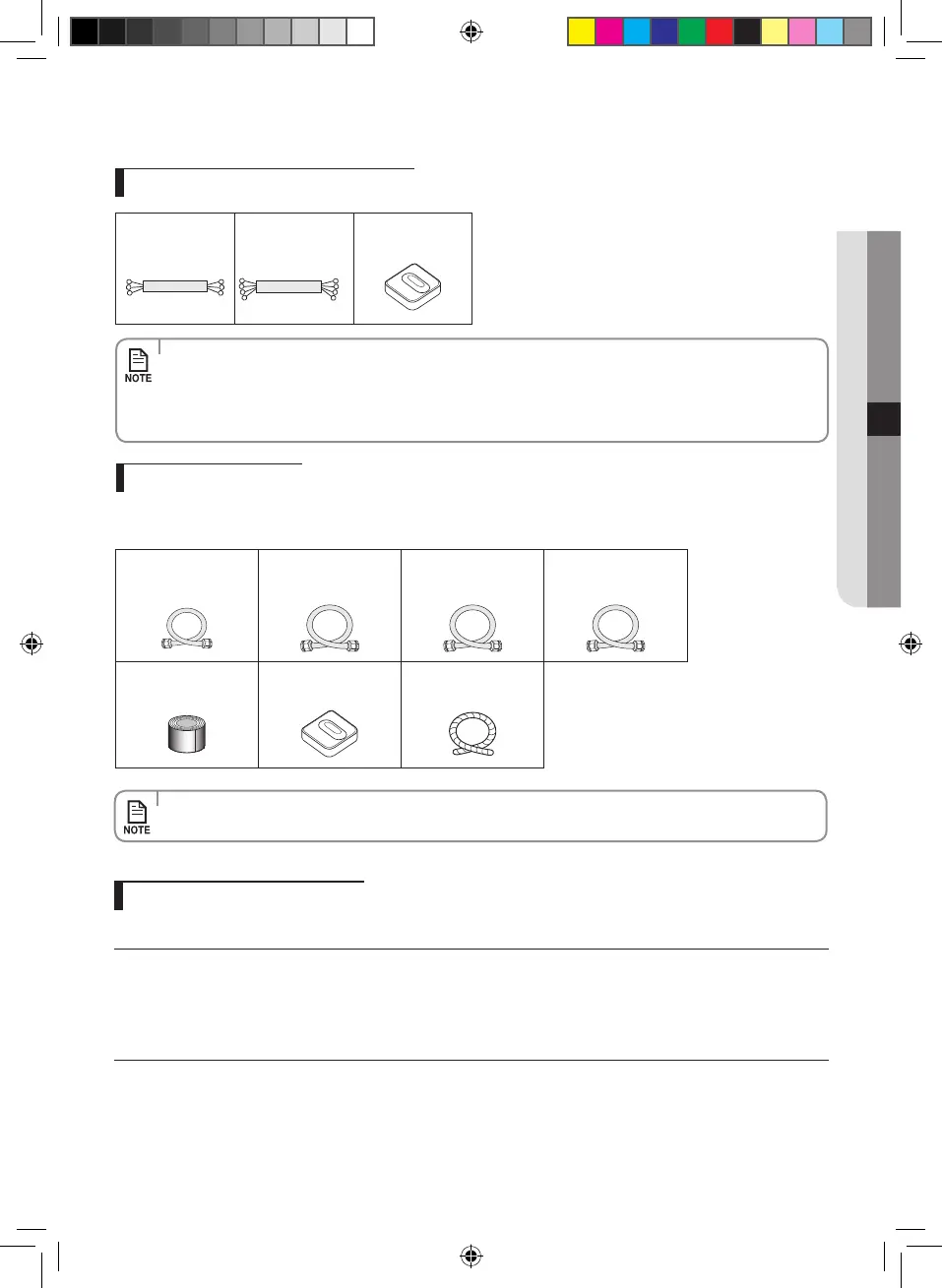

Accessories in the outdoor unit case
• Thearenutsareattachedtotheendofeachpipeofanevaporatororaserviceport.
Use the nuts when connecting the pipes.
• Theassemblycableisoptional.Ifitisnotsupplied,usethestandardcable.
• Thedrainplugandrubberlegareonlyincludedwhentheairconditionerissuppliedwithouttheassembly
pipe as seen in the picture below.
3-wire
Assembly Cable (1)
4-wire
Assembly Cable (1)
Rubber Leg (4)
Tools required for installation
General Tools
•VacuumPump(Backwardowingprevention) •ManifoldGauge •StudFinder
•TorqueWrench •PipeCutter •Reamer •PipeBender •SpiritLevel
•ScrewDriver •Spanner •Drill •LWrench •MeasuringTape
Tools for test operations
•Thermometer •ResistanceMeter •Electroscope
Optional accessories
The following connection accessories are optional. If they are not supplied, you should obtain them before installing the air
conditioner.
• Iftheseaccessoriesaresupplied,theywillbeintheaccessorybox.
Insulated Assembly
Pipe, Ø6.35 mm (1)
Insulated Assembly
Pipe, Ø9.52 mm (1)
09
Insulated Assembly
Pipe, Ø12.70 mm (1)
12/18
Insulated Assembly
Pipe, Ø15.88 mm (1)
24
Vinyl Tapes (2) Rubber Legs (4)
Drain Hose,
length 2 m (1)
English-33
INSTALLATION07
Midea ODM Africa CO IB&IM_DB68-00000A_EN.indd 33 2014/5/26 10:27:15
