Installation Procedure

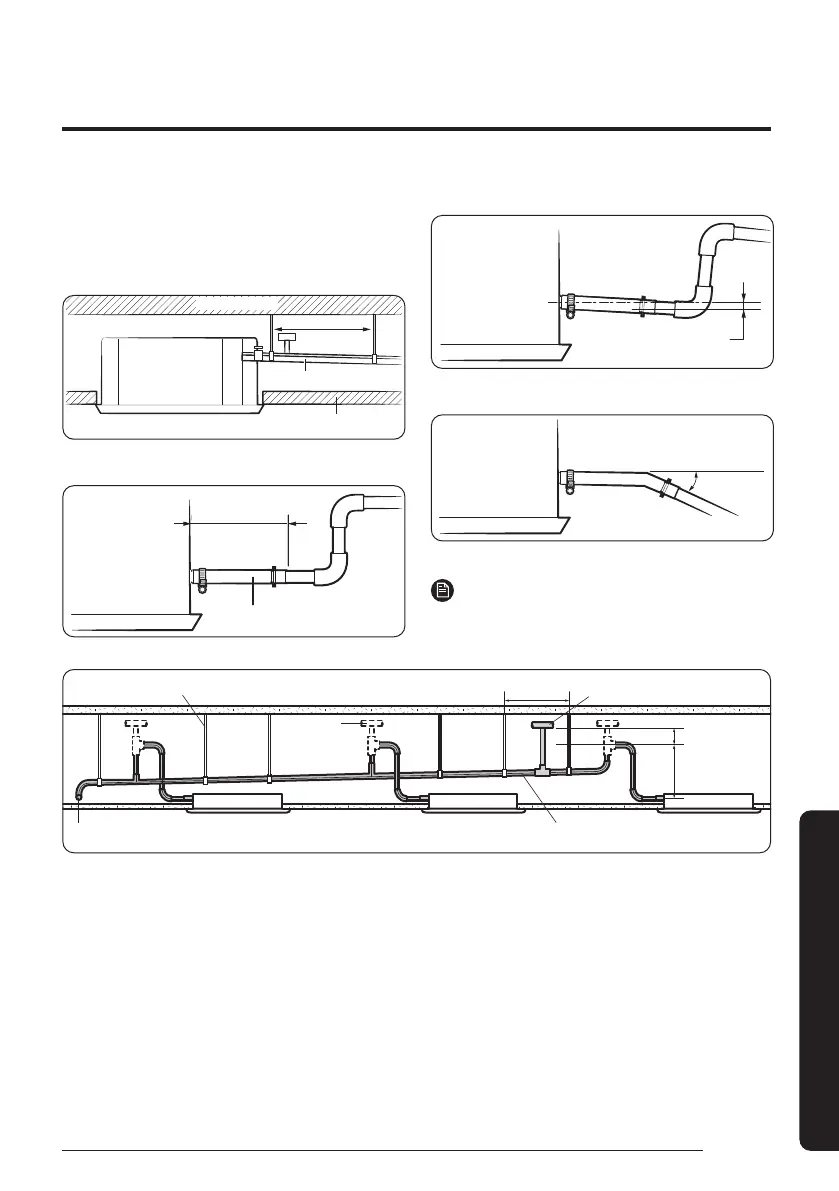

• Do not apply force to the piping on the unit side

when connecting the drain hose. The hose should

not be allowed to hang loose from its connection

to the unit. Fasten the hose to a wall, frame or

other support as close to the unit as possible.

Support pieces

1 to 1.5 m

1/100 or more

Ceiling

• Install horizontally.

Be horizontal

Indoor unit

Flexible hose

• Max. allowable axis gap.

Max. 20 mm

Indoor unit

• Max. allowable bending angle.

Indoor unit

Max. 30˚

NOTE

• If a concentrated drain pipe is installed, refer to

the figure below.

Hanger

1~1.5m

Individual

air vent

Main drainpipe

Main air vent

200 mm or more

300 to 550 mm

Centralized horizontal drainpipe (more than 1/100 slope)

• If 3 or more units are installed, install the main air vent at the front of the farthest indoor unit from the

main drain pipe.

• To prevent water from flowing back to indoor units, install an individual air vent at the top of each indoor

unit.

– The air vents should be T or 7 shaped to prevent dust or foreign substances from entering.

– You may not need to install air vent if the horizontal drain pipe is in proper slope.
