Installation Procedure

English

Installation Procedure

Step 5 Connecting the power and

communication cables

Power and communication cable

connection

• Before wiring work, you must turn off all power

source.

• Connect the power and communication cable

among the units within maximum length to set

the voltage drop under 10%.

• The auxiliary circuit breaker (ELCB, MCCB, ELB)

should be considered more capacity if many

indoor units are connected from one breaker.

• Connect F3, F4(for communication) to the

communication cable of the wired remote control.

• Tighten the electric wires with a proper tool

within the torque limit to connect and fix them

firmly, and then organize the wires to prevent

outside pressure being exerted on the covers

and other parts. Failure to do so may result in

overheating, electric shock, and fire.

Tightening torque (N•m)

M3.5 0.8 ~ 1.2

M4 1.2 ~ 1.8

(1 N•m = 10 kgf•cm)

• To protect the product from water and possible

shock, you should keep the power and the

communication cables of the indoor and outdoor

units in the iron pipe.

• Connect the power cable to the auxiliary circuit

breaker (ELCB, MCCB, ELB).

• Keep distances of 50mm or more between power

cable and communication cables.

• Power supply cords of parts of appliances

for outdoor use shall not be lighter than

polychloroprene sheathed flexible cord. (Code

designation IEC:60245 IEC 57 / CENELEC:

H05RN-F or IEC:60245 IEC 66 / CENELEC:

H07RN-F)

• Screws on terminal block must not be unscrewed

with the torque less than 12 kgf•cm.

• When installing the indoor unit in a computer

room, use the double shielded (tape aluminum /

polyester braid + copper) cable of FROHH2R type.

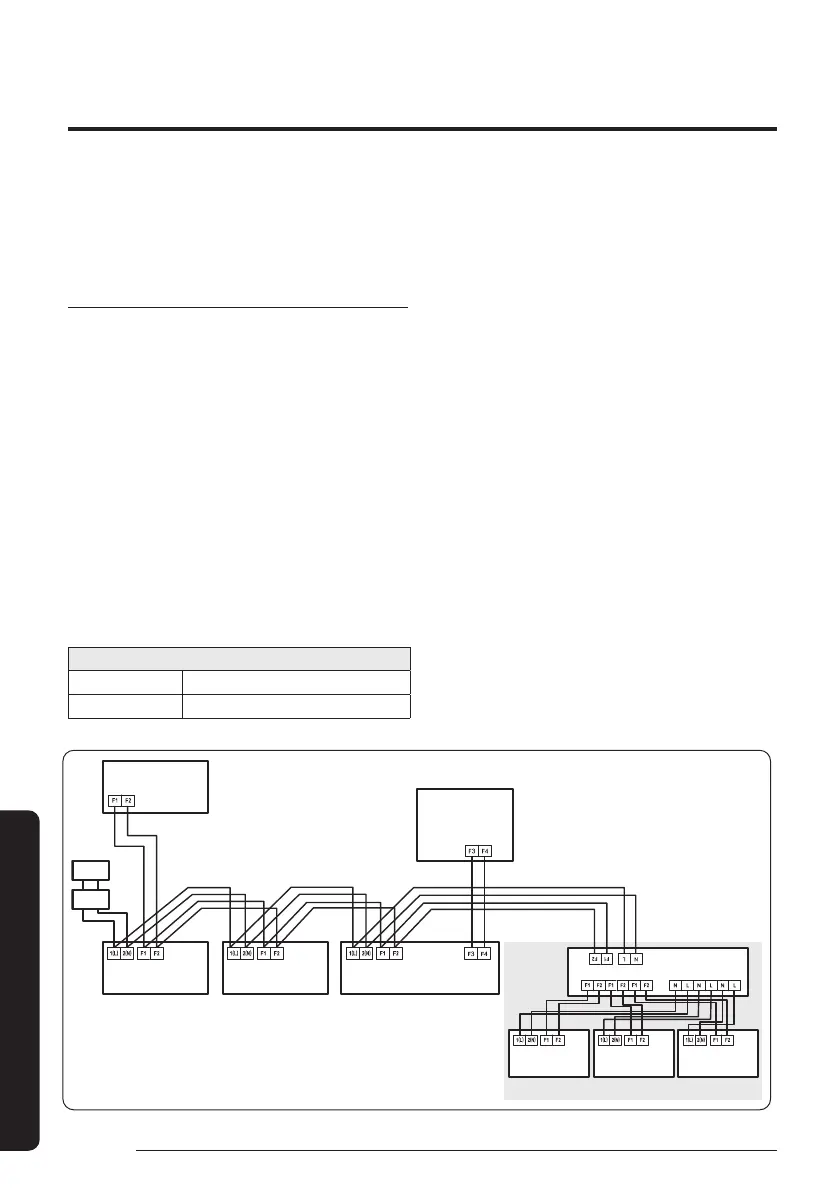

Outdoor Unit

220~240V~

ELB

MCCB

Indoor Unit 1 Indoor Unit 2 Indoor Unit 3

Indoor Unit 4 Indoor Unit 5 Indoor Unit 6

EEV kit

Wired Remote

Control

※ ELB : Esse

ntial Installation

※ Ceiling, wall-mounted indoor unit.
