Installation Procedure

• Refrigerant pipe before EEV kit and MCU or

without EEV kit and MCU

– You can contact the gas side and liquid

side pipes but the pipes should not be

pressed.

– When contacting the gas side and liquid

side pipe, use 1 grade thicker insulator.

• Refrigerant pipe after EEV kit and MCU

– Install the gas side and liquid side pipes,

leave 10mm of space.

– When contacting the gas side and liquid

side pipe, use 1 grade thicker insulator.

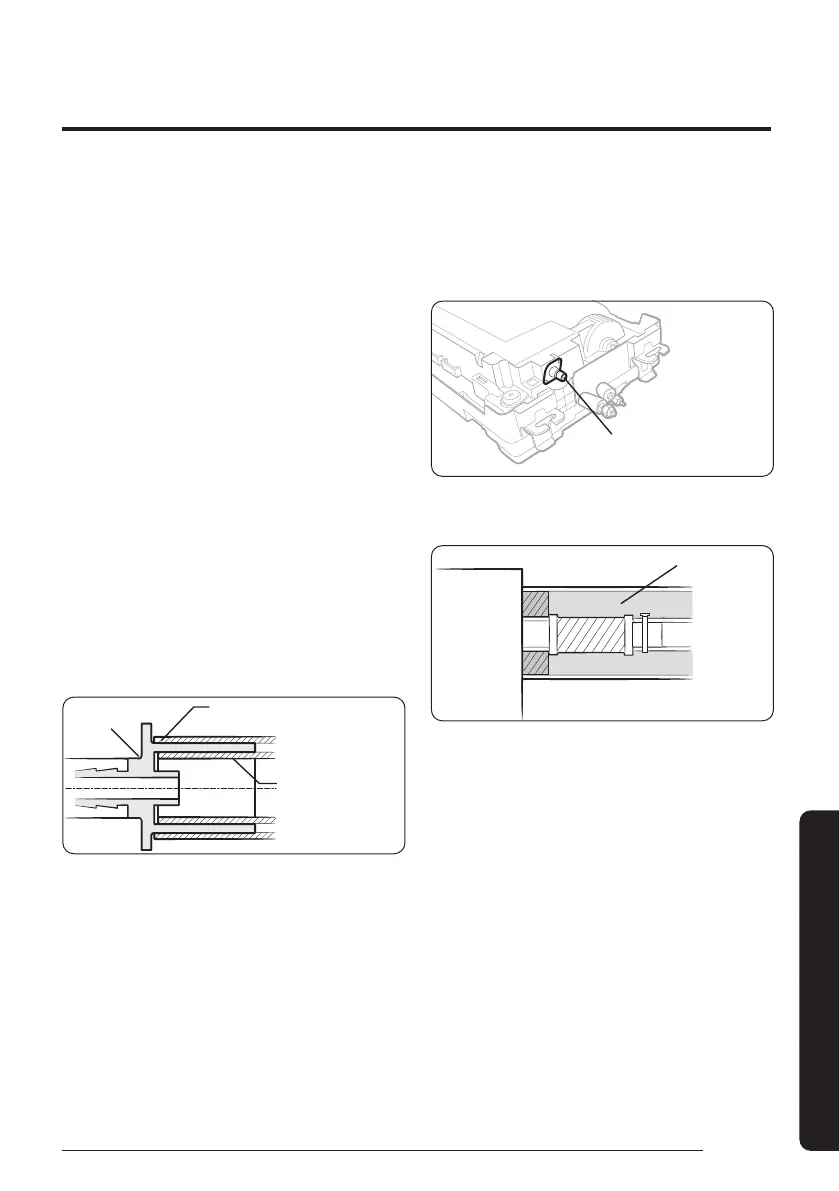

Step 4 Installing the drain hose

and drain pipe

1way cassette

1 Fix the flexible hose to the drain pipe.

• The connection port of the flexible hose

and PVC drain pipe must be fixed with PVC

adhesives.

Check out that the connected part doesn’t

ak.

VP 20 (Drain pipe)

(OD: 26mm, ID: 20mm)

PVC T

ube Joint

+ VP25 (OD: 32 mm, ID: 25 mm)

Drain h

ose

2 Connect the flexible hose to the drain hose port.

• Make sure that a rubber ring is installed on

the drain hose port.

• The drain hose port location differs

depending on the unit types.

Drain hose port

3 Cover the flexible hose with the provided

insulation drain.

Insulation drain

Indoor unit

4 Install the drain pipe as shortly as possible

(field supply).

5 Insulate the whole drain pipe inside the building

(field supply).

The whole drain pipe must be insulated with 5t

(or

more) insulation to prevent condensation.

DB68-13032A-00_IBIM_DVM R32 WindFree 1,4way_EU_EN_.indd 33DB68-13032A-00_IBIM_DVM R32 WindFree 1,4way_EU_EN_.indd 33 2024-07-29 오전 10:10:492024-07-29 오전 10:10:49
