Installation Procedure

English

Installation Procedure

3 Finish wrapping insulating tape around the rest

of the pipes leading to the outdoor unit.

4 The pipes and electrical cables connecting the

indoor unit with the outdoor unit must be fixed to

the wall with suitable ducts.

CAUTION

• Must fit tightly against body without any gap.

• Make sure that all refrigerant connection

must be accessible for easy maintenance and

detachment.

• Install the insulation not to get wider and use the

adhesives on the connection part of it to prevent

moisture from entering.

• Wind the refrigerant pipe with insulation tape if

it is exposed to outside sunlight.

• Install the refrigerant pipe respecting that the

insulation does not get thinner on the bent part

or hanger of pipe.

• Add the additional insulation if the insulation

plate gets thinner.

• All refrigerant connection must be accessible,

in order to permit eithernit maintenance or

removal.

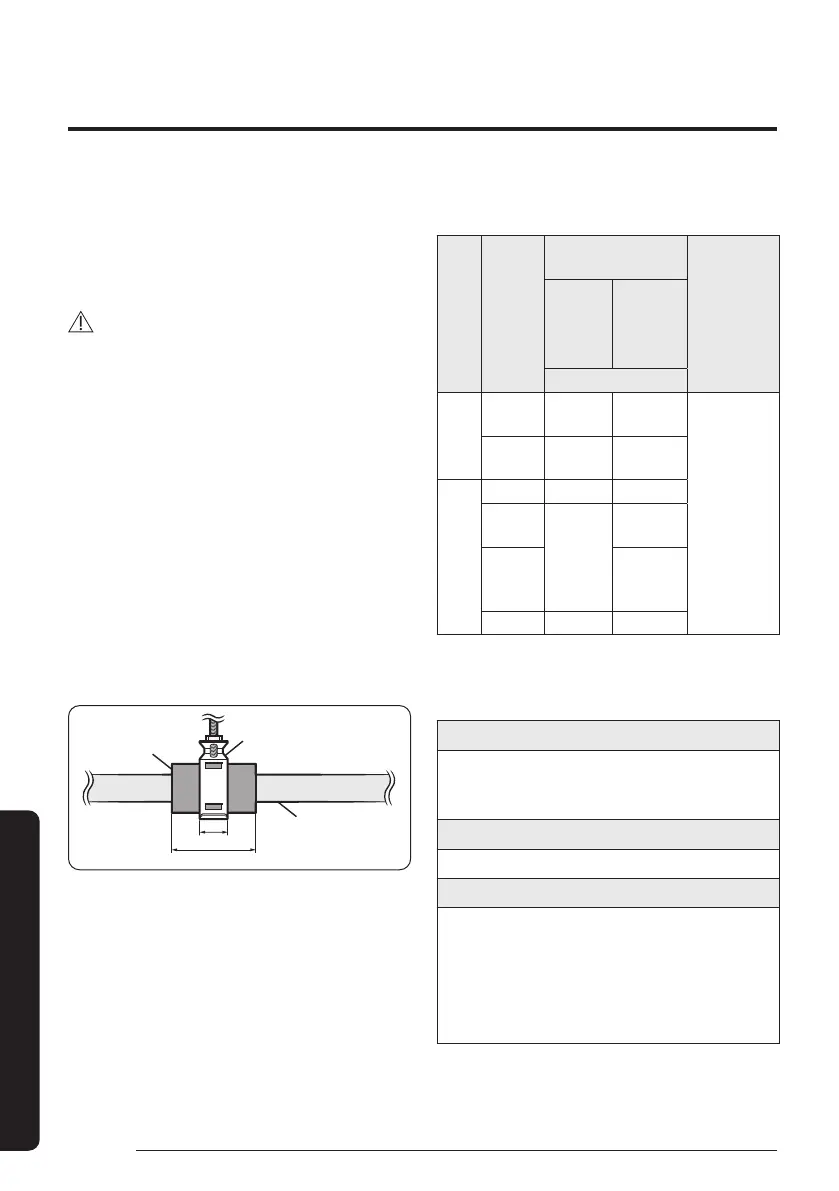

Additional insulation

Hanger

Refrigerant pipe insulation

a x 3

5 Select the insulation of the refrigerant pipe.

• Insulate the gas side and liquid side pipe,

noting the insulation thickness that must

differ according to the pipe size.

• Standard: Less than an indoor temperature

of 30°C, with humidity at 85%. If installing

in a high humidity environment, use one

grade thicker insulator by referring to the

table below. If installing in an unfavourable

environment, use thicker one.

• The heat-resistance temperature of the

insulator must be more than 120°C.

Pipe

Pipe size

(mm)

Insulation Type

(Heating/Cooling)

Remarks

Standard

[30°C,

85%]

High

humidity

[30°C,

over 85%]

EPDM, NBR

Liquid

pipe

Ø6.35 to

Ø9.52

9t ←

Internal

temperature

is higher

than 120°C

Ø12.7 to

Ø50.80

13t ←

Gas

pipe

Ø6.35 13t 19t

Ø9.52 to

Ø25.40

19t

25t

Ø28.58

Ø44.45

32t

Ø50.80 25t 38t

• When installing insulation in the places and

conditions below, use the same insulation

that is used for high humidity conditions.

High humidity locations such as shorelines, hot

springs, lake or riversides, and ridges (when part of

the building is covered by earth and sand)

Restaurant ceiling, sauna, swimming pool etc.

Ceilings frequently exposed to moisture and cooling

are not covered. For example, pipes installed at a

corridor of a dormitory and studio or near an exit

that opens and closes frequently.

Places (where the pipes are installed) that are highly

humid due to a lack of ventilation.

DB68-13032A-00_IBIM_DVM R32 WindFree 1,4way_EU_EN_.indd 32DB68-13032A-00_IBIM_DVM R32 WindFree 1,4way_EU_EN_.indd 32 2024-07-29 오전 10:10:492024-07-29 오전 10:10:49
