Installation Procedure

30

English

Installation Procedure

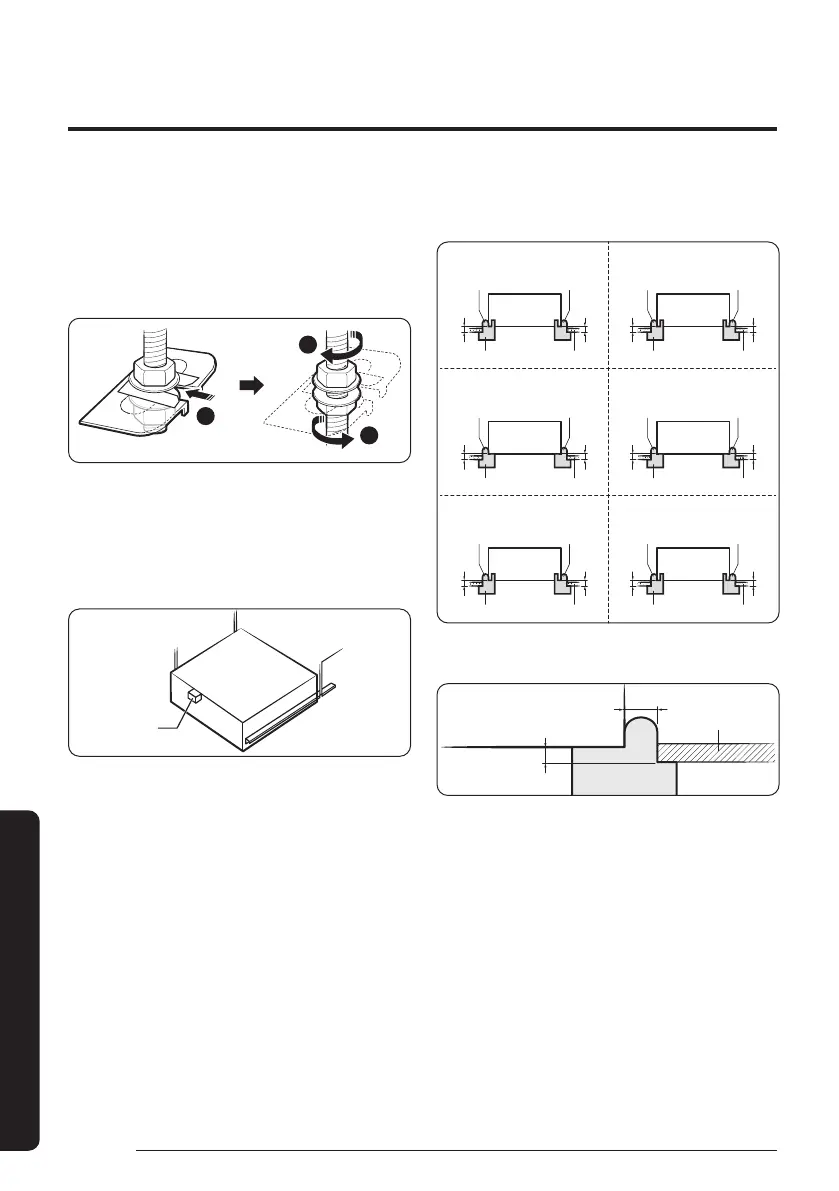

5 Hang the indoor unit to the suspension bolts

between two nuts. Cut a pad stopper and place

it on the suspension bolts to hold the washer.

Remove the stopper and screw the nuts to fix

the unit.

• Stoppers are only included in 4WAY products.

1

2

6 Check the level of the indoor unit by using a

leveler.

• A tilt of the indoor unit may cause

malfunction of a built-in float switch and

water leaks.

Level

7 Adjust the unit to the appropriate position,

taking into account the installation area for the

front panel.

• Place the pattern sheet on the indoor unit.

• Adjust the space between the ceiling and the

indoor unit by using a dimension gauge.

• Fix the indoor unit securely after adjusting

the level of the unit by using a leveller.

• Remove the pattern sheet, connect the other

cables. and install the front panel.

1way cassette

(Unit: mm)

Slim 1way cassette

(Small, WindFree)

Slim

1way cassette

(Medium, WindFree)

Sl

im

1way cassette

(Medium)

Slim 1way cassette

(Large)

Slim

1way cassette

(Large, WindFree)

Slim 1way cassette

(Small)

Air outl

et side

Air outlet side

Air outlet sideAir outlet side

Air outlet side

Jig

Jig Jig

JigJig

Jig

6

10

15

10

16

810

15

10

18

Air inlet side

Indoor unit

Indoor unitIndoor unit

Indoor unit

Ceiling

Ceiling Ceiling

CeilingCeiling

Ceiling

4way cassette

20 mm

Indoor unit

Ceiling

17 mm

Gauge of dimensions
