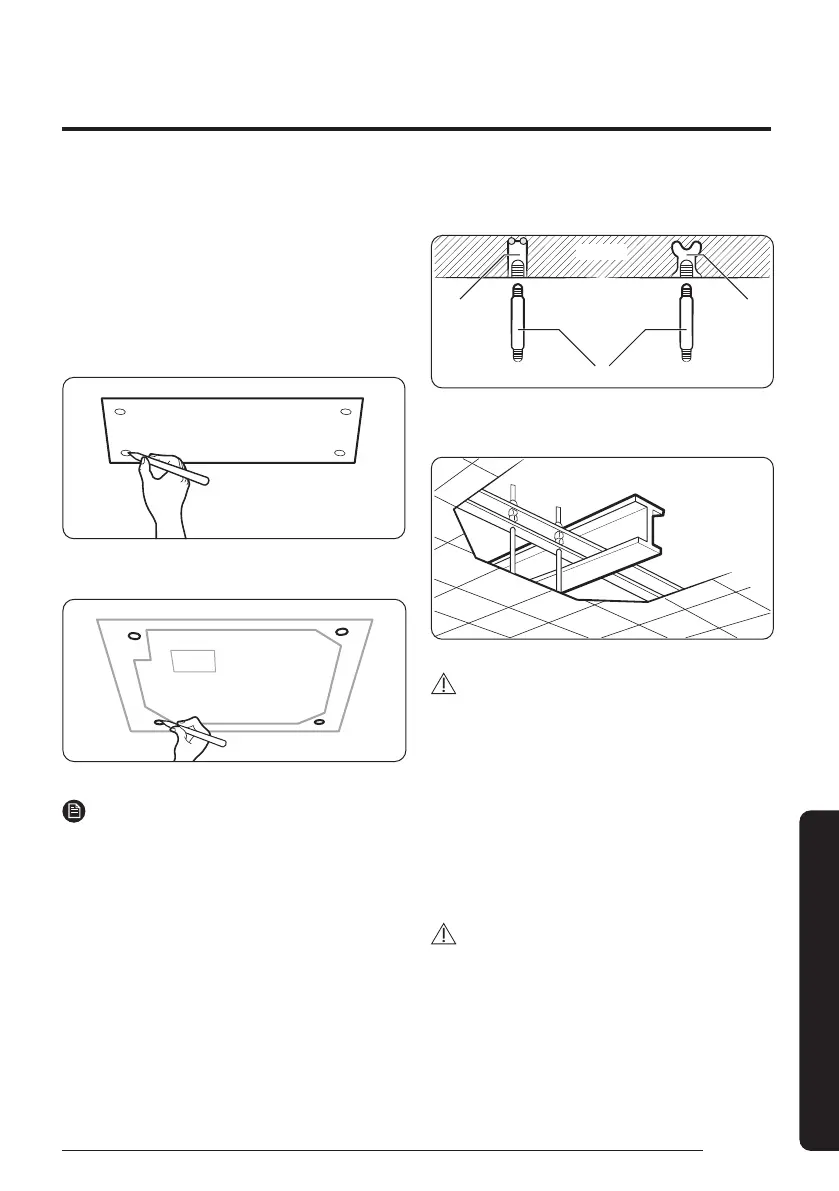

Installation Procedure

Step 1 Installing the indoor unit

When deciding on the location of the air conditioner

the following restrictions must be taken into

account.

1 Place the pattern sheet on the ceiling at the spot

where you want to install the indoor unit.

1way cassette

4way cassette

NOTE

• Since the diagram is made of paper, it may

shrink or stretch slightly due to temperature

or humidity. For this reason, before drilling the

holes, be sure to maintain the correct dimensions

between the markings.

2 Insert bolt anchors, use existing ceiling supports or

construct a suitable support as shown in figure.

Concrete

Suspension bolt (ø9.52 or M10)

Hole in anchor Insert

Hole in plug

3 Install the suspension bolts, depending on the

ceiling type.

Ceiling support

CAUTION

• Make sure that the ceiling is strong enough to

support the weight of the indoor unit. Before

hanging the unit, test the strength of each attached

suspension bolt.

• If the length of the suspension bolt is more than 1.5

m, you are required to prevent vibration.

4 Screw eight pairs of nuts and washers to the

suspension bolts, making space for hanging the

indoor unit.

CAUTION

• You must install all of the suspension rods.

• It is important to leave sufficient space in the false

ceiling to allow access for maintenance or repairs to

the drainage pipe connection, the refrigerant pipe

connection, or to remove the unit if necessary.

Installation Procedure
