61
English
Installation Procedure

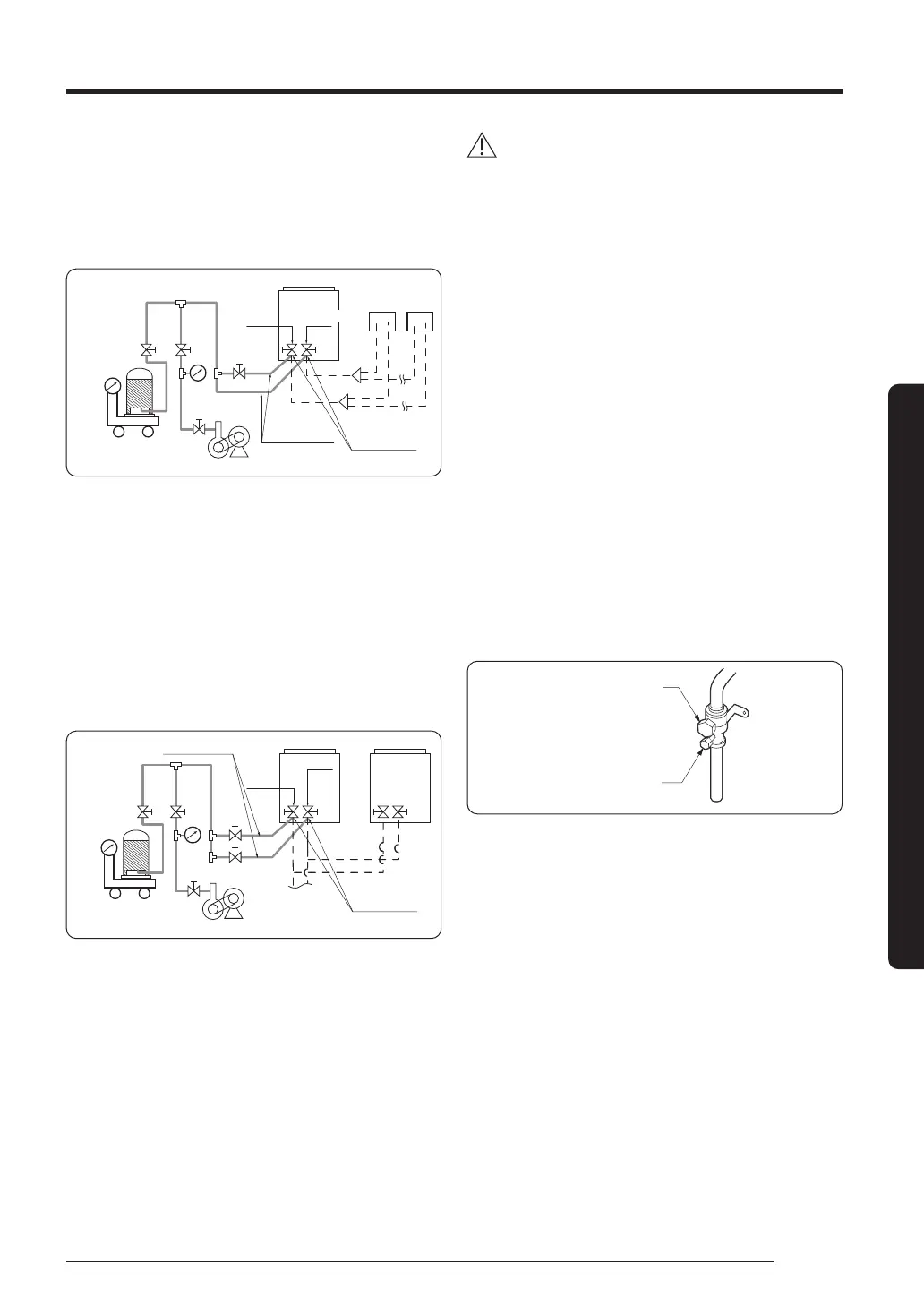

Refrigerant charging
Single installation
• Open the manifold gauge valve connected to the liquid side
service valve and add the liquid refrigerant.
• If you cannot add the whole quantity of the refrigerant while
the outdoor unit is stopped, open the gas side and liquid side
service valve. Then, add remaining refrigerant by pressing the
refrigerant adding button of the outdoor PCB.
Gas side
Scale
R-410A
(Inject
liquid
refrigerant)
Liquid side
Vacuum port
Manifold gage
Service valve
Outdoor unit
Module installation
• Open the manifold gauge valve connected to the liquid side
service valve and add the liquid refrigerant.
• If you cannot add the whole quantity of the refrigerant while
the outdoor unit is stopped, open the gas side and liquid side
service valve. Then, add remaining refrigerant by pressing the
refrigerant adding button of the outdoor PCB.
• If you use the refrigerant charging function from the PCB,
outdoor unit will operate and charge the refrigerant. At
this time, you must use gas side manifold gauge for cooling
operation and use charging port for heating at the manifold
gauge for heating operation.
Gas
side
Scale
R-410A
(Inject
liquid
refrigerant)
Liquid side
Vacuum port
Liquid side
pipe
Service valve
Outdoor unit
Outdoor unit
Manifold gage
CAUTION
• Open the gas side and liquid side service valve completely
after charging the refrigerant. (If you operate the air
conditioner with the service valve closed, the important parts
may be damaged.)
• Put on safety equipment when charging refrigerant.
• Do not charge the refrigerant when you adjust or control other
product such as indoor units or EEV kits.
• If you charge the refrigerant with the front cabinet open, be
very careful with the fan on the top of the product to prevent
personal injury.
• When the ambient temperature is low in winter time, do
not heat the refrigerant container to speed up the charging
process. There is risk of explosion.
• Beware for possibility of refrigerant leakage when you connect
the manifold gauge to the charging port for heating.
• Close the valve of the refrigerant container immediately after
charging the refrigerant. If not, there might be a change in
entire amount of refrigerant.
Using service valve for gas
• After charging the refrigerant, close all caps as shown in the
illustration.
• Tightening torque for the cap of refrigerant charging port
10~12N‧m
• Tightening torque for the cap of control part 20~25N‧m
• Opening/closing torque for the valve
– Over Ø 19.05 : 10.0N·m
Cap for the control part
Cap for the refrigerant
charging port
