Pipe insulation
English
Installation Procedure

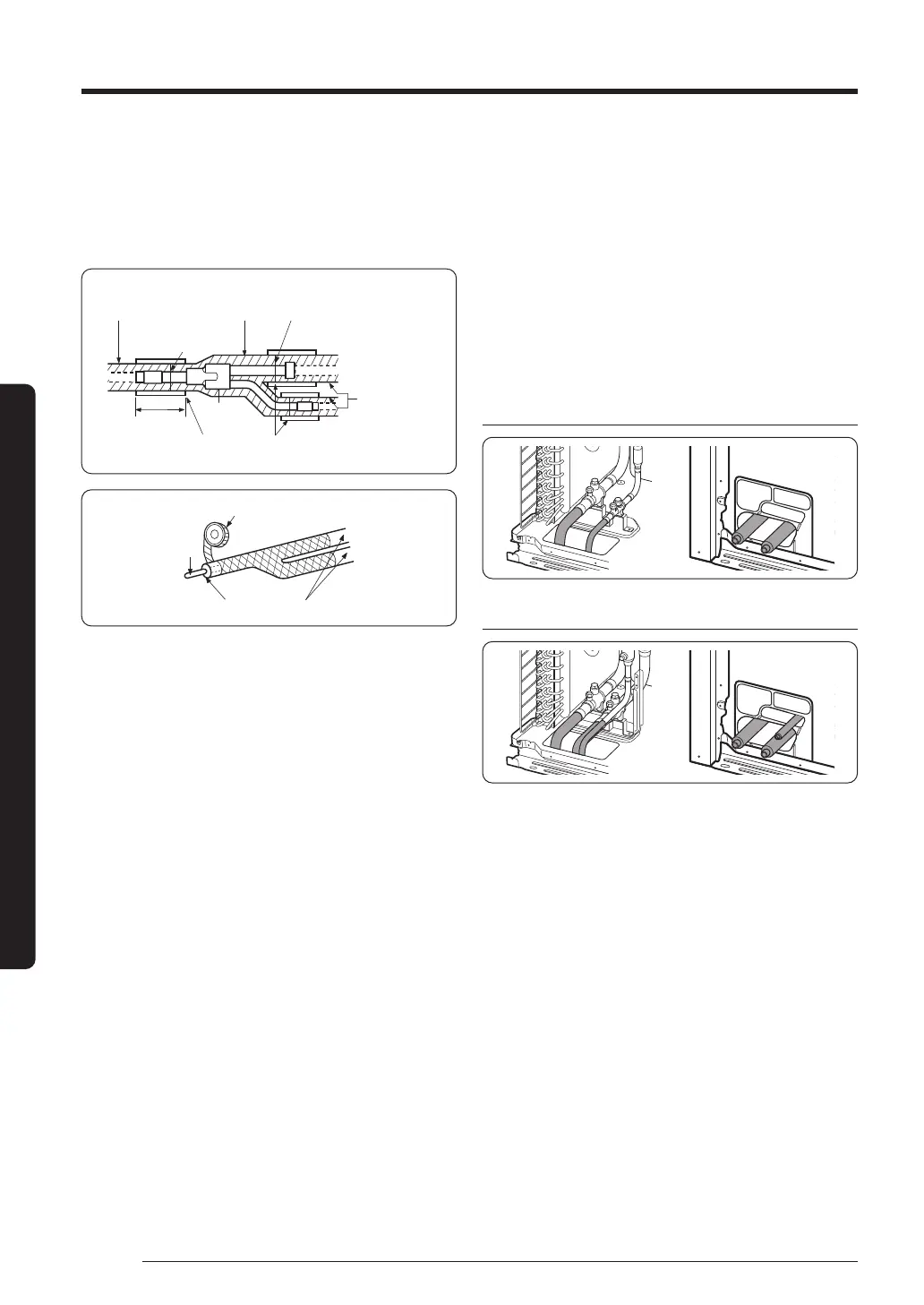

Insulating the branch joint
• Tightly attach the insulator, provided with the branch joint,
to the separately purchased insulator. Wrap the connected
part with an insulator (separately purchased item) that has
thickness of at least 10mm.
• Use an insulator that resist heat up to 120°C. Wrap the branch
joint with an insulation that has thickness of at least 10mm.
Fix securely without any gap.
Provided
Insulator
Fix securely
without any gap.
Pipe insulator
(Separately
purchased item)
Pipe insulator
(Separately
purchased item)
150mm
Branch
joint
Thickness of the insulator (Separately purchased item) should be
thicker than 10mm.
Insulation tape (Separately purchased item)
Pipe insulator (Separately purchased item)
Pipe
※ Attach the adhesive insulation tape to the pipe, as shown in
the picture, after insulating the pipe.
Insulating the pipe located inside of the
outdoor unit
• With a pipe insulator, insulate the pipe up to whole service
valve located inside of the outdoor unit.
• Seal the gap between the outdoor unit pipe and the insulator.
Rainwater and dewdrops may soak through the gap between
the pipe and the insulation of the outdoor unit installed on the
outside.
• Separate the cover of the pipe and close it after insulation
work. Only remove a knock-out hole cover where the pipe
will be installed. If the knock-out hole is open unnecessarily,
it must be closed. If not, small animals such as squirrels and
rats may get into the unit through the hole and the unit may
be damaged.
H/P
H/R
