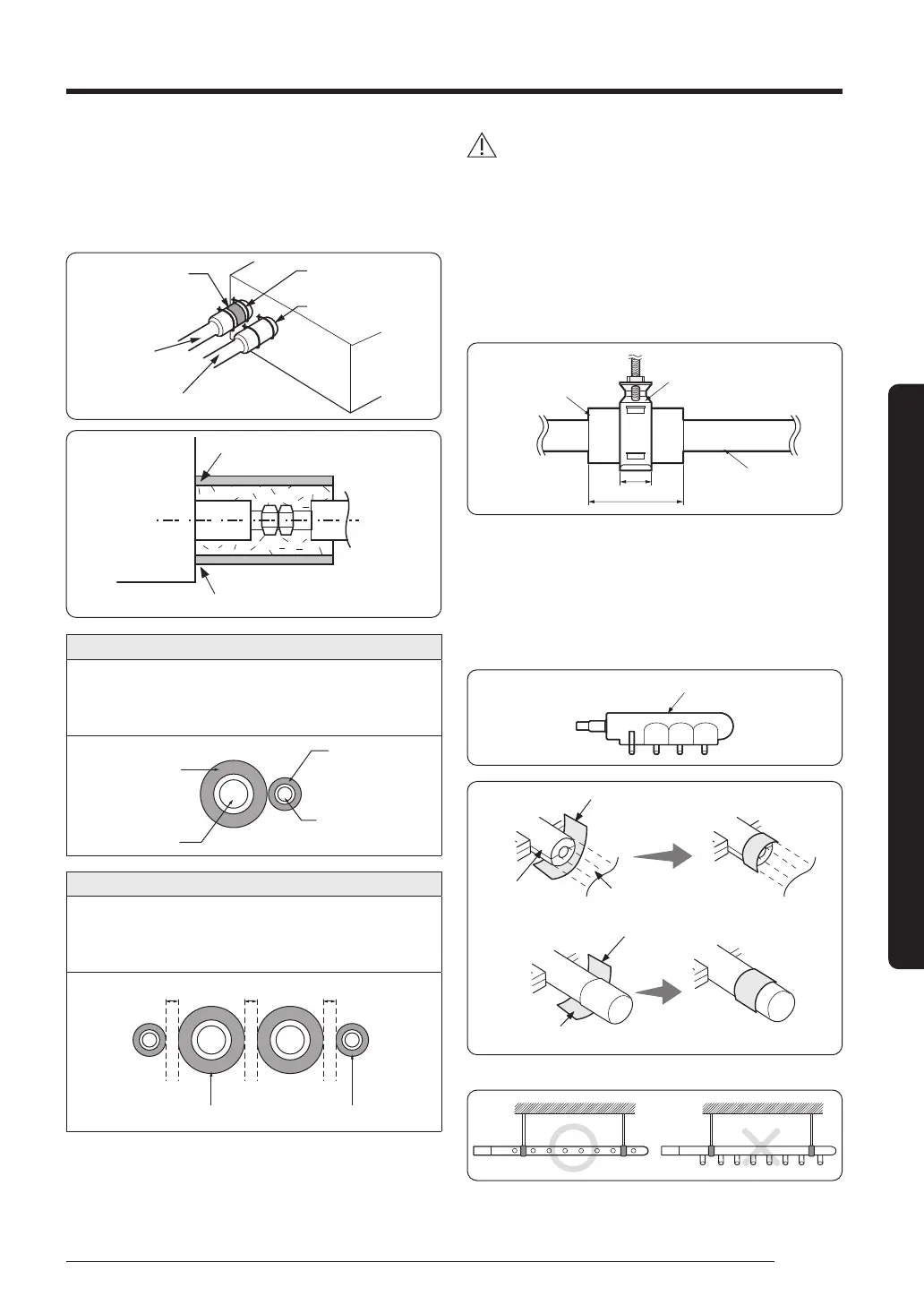

Installation Procedure
Insulate the refrigerant pipe
• Make sure to insulate the refrigerant pipe, branch joint,
distribution header, and the connection part of the pipes.
• If you insulate the pipes, condensed water will not fall from the pipes.
• Check if there are any cracks on the insulation at the bent part
of the pipe.
Insulator
Clamp
Liquid side pipe
Gas side
pipe
Insulator
Fix securely without any gap.
Install the insulation to be overlapped
Indoor unit
Insulator
Insulating pipes
• The insulation of the gas and liquid pipes can be in contact with each
other but they should not press excessively against each other.
• When the gas side and liquid side pipes are contacting each other,
increase the thickness of the insulation by one grade.
Gas pipe
Liquid pipe
Insulator
Insulator
Insulating pipes connected behind the EEV kit
• When installing the gas side and liquid side pipes, leave at least
10mm of space.
• When the gas side and liquid side pipes are contacting each other,
increase the thickness of the insulation by one grade.
Gas pipe
10 mm10 mm 10 mm
Liquid pipe
CAUTION
• Install the insulation without any gaps or cracks and use
adhesive on the connection part of it to prevent moisture from
entering.
• Bind the refrigerant pipe with insulation tape if it is exposed to
outside sunlight. (When binding the pipe with finishing tape,
be careful not to reduce the thickness of the insulation.)
• Install the refrigerant pipe respecting that the insulation does
not get thinner on the bent part or hanger of pipe.
• When the thickness of insulation is reduced, reinforce the
reduced thickness with additional insulation.
Insulator for
refrigerant pipe
a x 3
Hanger
Additional Insulator
a
Insulate the distribution header
• Fix the distribution header with a cable tie and cover the
connected part.
• Insulate the distribution header and the welded part and wrap
the connected part with an adhesive insulation tape to prevent
dew formation.
Insulation
Adhesive insulation tape
Insulate the refrigerant
pipe
Insulate the
distribution header
Insulate after welding a stopper
Adhesive insulation tape
• Fix the distribution header with a hanger after insulating it.
