43
English
Installation Procedure

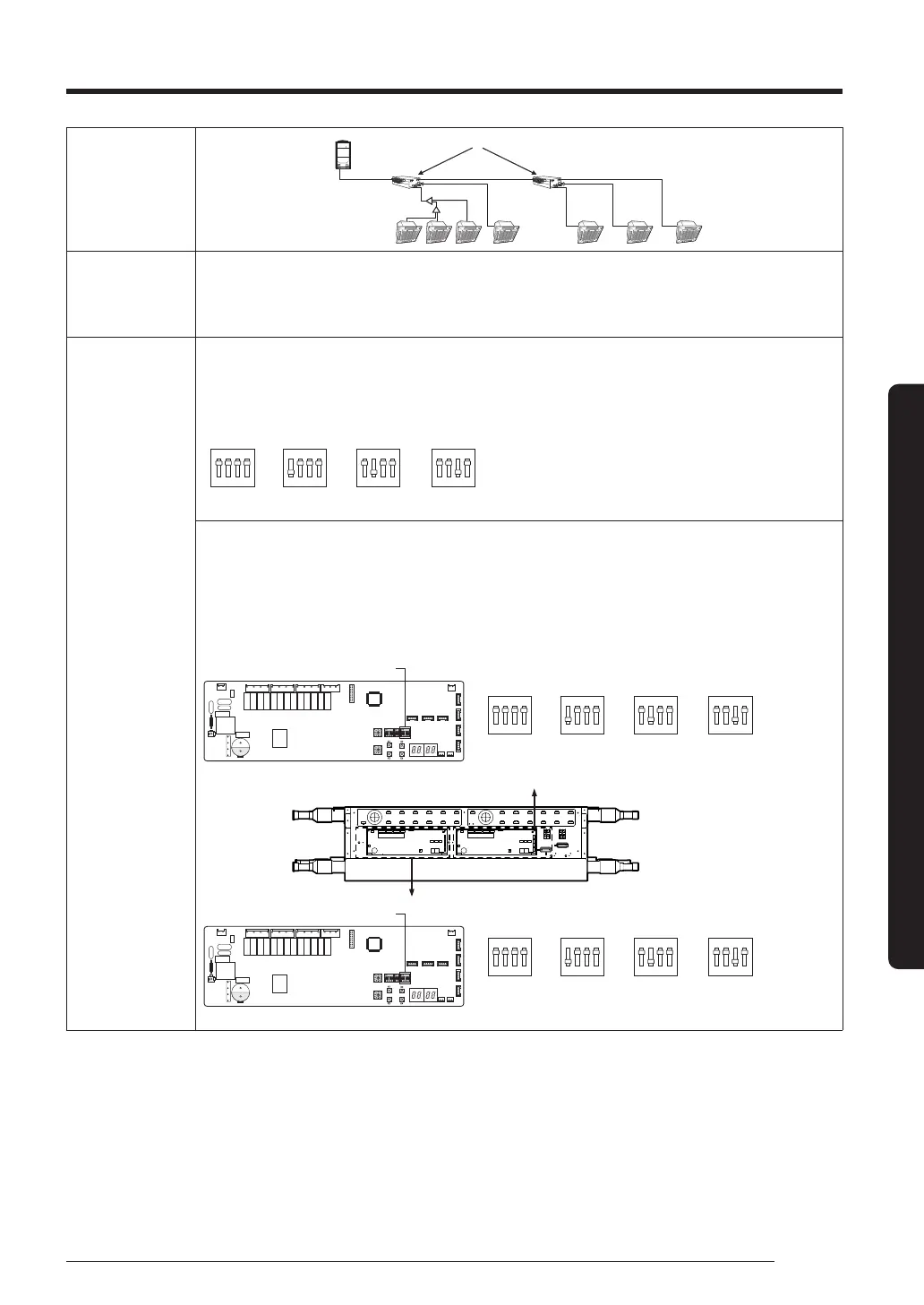

Example installing
(MCU series
connection)
MCU MCU
MCU series connection
Installing indoor units
Under 16.0 kW indoor unit : Don’t use Y-connector 16.0 kW ~ 32.0 kW indoor unit : Use Y-connector at the Gas & Liquid line
If you want to continuous cooling operation under -5 °C, set outdoor ‘Expand operational temperature range for cooling operation (HR only)’, and use
Y-connector on 5.0 ~ 16 kW indoor unit
In case of MCU connection in series, the maximum capacity of indoor units in MCU series connection is the larger value of MCU which are connected
in series. (Example> MCU-S12NEK1N + MCU-S6NEK2N → 85.0 kW)
Using Y-connector
[MCU-S6*, MCU-S4*, MCU-S2*, MCU-S1*]
In case of using Y-connector, it is only connectable for port combination at below connectable port combination for Y-connector : A + B port, C + D
port, E + F port
Non-connectable port combination for Y-connector : B + C port, D + E port, non-continuous port
Set Dip Switch option for using Y-connector
1
ON
2 3 4 1
ON
2 3 4 1
ON
2 3 4 1
ON
2 3 4
S/W Option S/W Option S/W Option S/W Option
Default
Combination of
A+B port
Combination of
C+D port
Combination of
E+F port
[MCU-S12*, MCU-S8*]
In case of using Y-connector, it is only connectable for port combination at below connectable port combination for
Y-connector : [#1-A] + [#1-B] port, [#1-C] + [#1-D] port, [#1-E] + [#1-F] port
[#2-A] + [#2-B] port, [#2-C] + [#2-D] port, [#2-E] + [#2-F] port
Non-connectable port combination for Y-connector : [#1-B] + [#1-C] port, [#1-D] + [#1-E] port, non-continuous port
[#2-B] + [#2-C] port, [#2-D] + [#2-E] port, non-continuous port
Set Dip Switch option for using Y-connector
DIP switch setting for using Y-connector
DIP switch setting for using Y-connector
1
ON
2 3 4 1
ON
2 3 4 1
ON
2 3 4 1
ON
2 3 4
S/W Option S/W Option S/W Option S/W Option
Default
Combination of
A+B port
Combination of
C+D port
Combination of
E+F port
1
ON
2 3 4 1
ON
2 3 4 1
ON
2 3 4 1
ON
2 3 4
S/W Option S/W Option S/W Option S/W Option
Default
Combination of
A+B port
Combination of
C+D port
Combination of
E+F port
<Section #1>
<Section #2>
