Refrigerant pipe installation
English
Installation Procedure

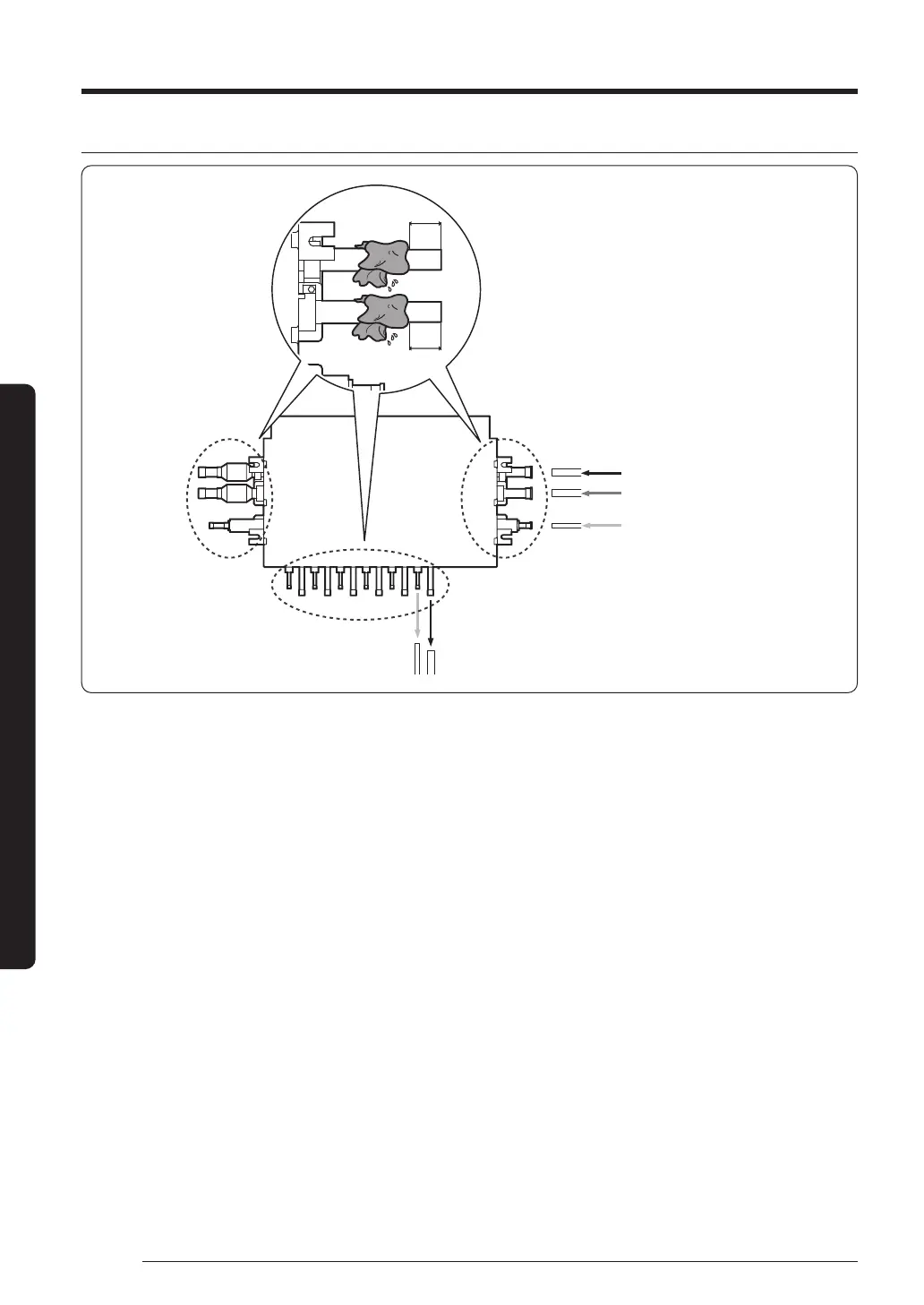

How to connect the pipes
Pipe connection from outdoor unit
← Default installing direction.
Pipe connection to indoor unit
Gas pipe (welding)
Liquid pipe (welding)
Protect with wet towel
when welding
70 mm
Low pressure gas pipe connection
(welding)
High pressure gas pipe connection
(welding)
Liquid pipe connection (welding)
70 mm
※ When installing MCU, use the pattern sheet for installation that is provided with the product.
※ When welding the gas pipes, protect the product with the flame-proof sheet.
※ When connecting the MCU with outdoor units, default direction is set in the MCU.
If installing opposite direction, weld the enclosed copper cap in each high pressure, low pressure and liquid pipes.
