35
English
Installation manual
<Geological condition>
High humidity locations such as shorelines, hot
springs, lake or riversides, and ridges (when part
of the building is covered by earth and sand)
<Operation purpose condition>
Restaurant ceiling, sauna, swimming pool etc.
<Building construction condition>
Ceilings frequently exposed to moisture and
cooling are not covered. For example, pipes
installed at a corridor of a dormitory and studio or
near an exit that opens and closes frequently.
Places (where the pipes are installed) that are
highly humid due to a lack of ventilation.
• Refrigerant pipe before EEV kit and MCU or
without EEV kit and MCU
– You can contact the gas side and liquid
side pipes but the pipes should not be
pressed.
– When contacting the gas side and liquid
side pipe, use 1 grade thicker insulator.
• Refrigerant pipe after EEV kit and MCU
– Install the gas side and liquid side pipes,
leave 10mm of space.
– When contacting the gas side and liquid
side pipe, use 1 grade thicker insulator.

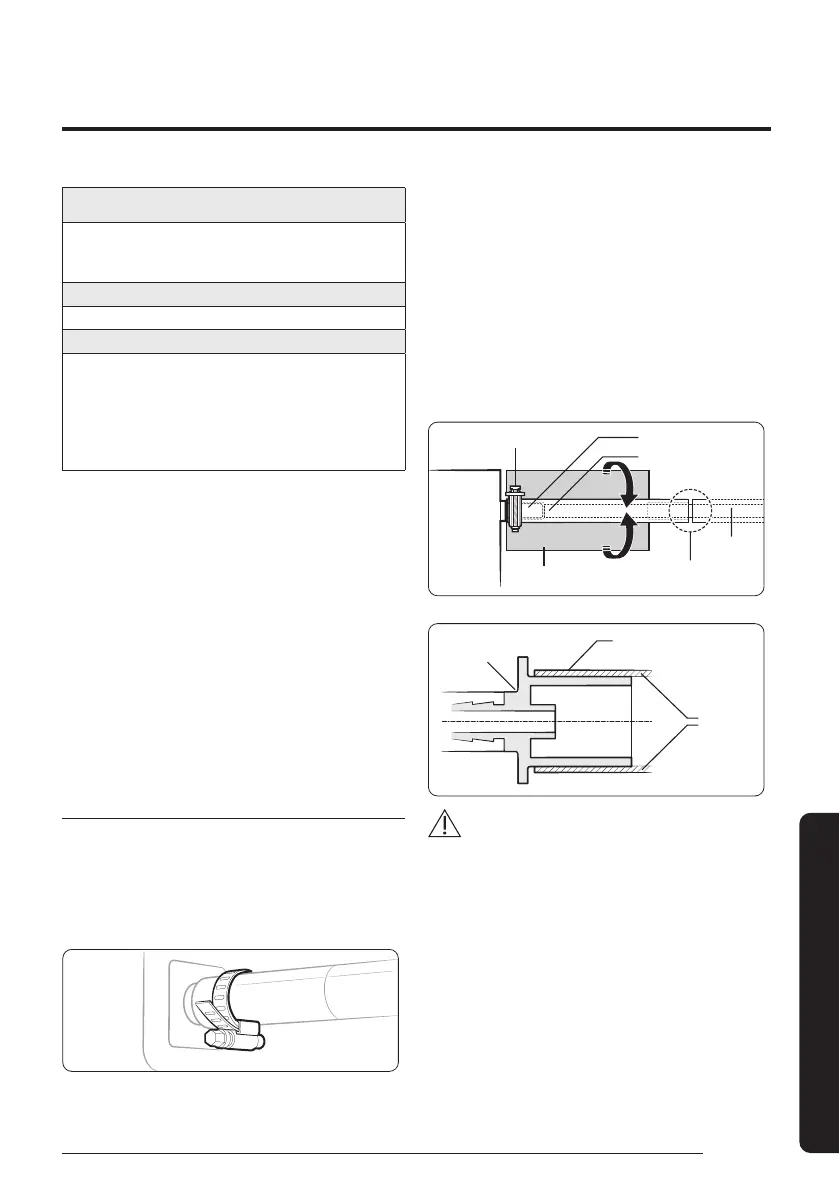

Step 4 Installing the drain hose and
drain pipe
1 Push the supplied drain hose as far as possible
over the drain socket.
2 Tighten the metal clamp as shown in the
picture.
3 Wrap the supplied large sealing pad over the
metal clamp and drain hose to insulate and fix
it with clamps.
4 Insulate the complete drain piping inside the
building (field supply).
If the drain hose cannot be sufficiently set on
a slope, fit the hose with drain raising piping
(field supply).
5 Push the drain hose up to insulation when
connecting the drain hose to drain socket.
Metal clamp
Drain socket
Drain hose
Large seailng pad
Be sure to bond the drain
hose and the main pipe.
Drain pipe
Drain hose
PVC Tube Joint
+ VP25 (OD: 32 mm, ID: 25 mm)
Drain pipe
CAUTION
Check that the indoor unit is level with the ceiling
by using the leveller.
