36
English
Regulatory Notice
Installation manual

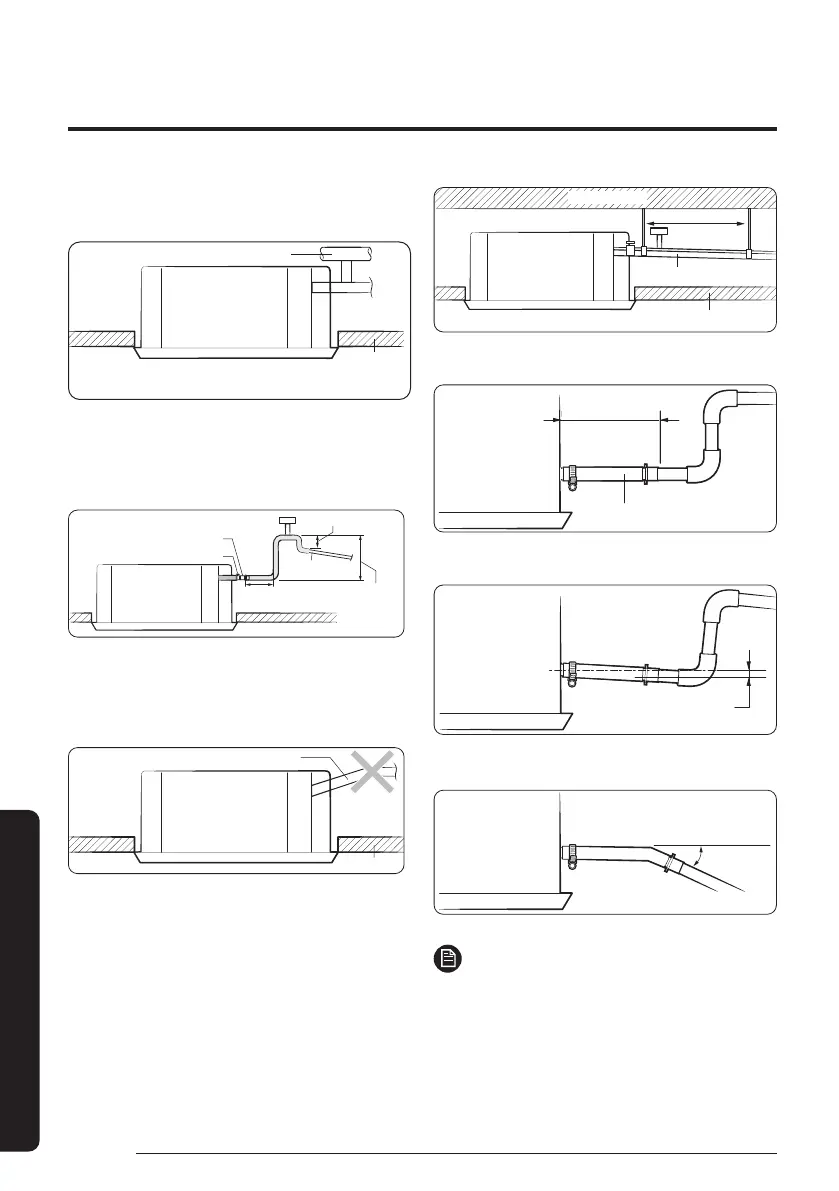

• Install air ventilation to drain condensation
smoothly.
Air ventilation
Ceiling
• If it is necessary to increase the height of the
drain pipe, install the drain pipe straight within
300 mm from the drain hose port. If it is raised
higher than 550 mm, there may be water leaks.
Band joint
300 mm or
less
300 to 550 mm
20 mm or more
1/100 or more
Drain hose
Ceiling
• Do not give the hose an upward gradient beyond
the connection port. This will cause water to flow
backwards when the unit is stopped, resulting in
water leaks.
Under gradient
Ceiling
• Do not apply force to the piping on the unit side
when connecting the drain hose. The hose should
not be allowed to hang loose from its connection
to the unit. Fasten the hose to a wall, frame or
other support as close to the unit as possible.
Support pieces
1 to 1.5 m
1/100 or more
Ceiling
• Install horizontally.
Indoor unit
Be horizontal
Flexible hose
• Max. allowable axis gap.
Indoor unit
Max. 20 mm
• Max. allowable bending angle.
Max. 30˚
Indoor unit
NOTE
• If a concentrated drain pipe is installed, refer to
the figure below.
Installation Procedure
