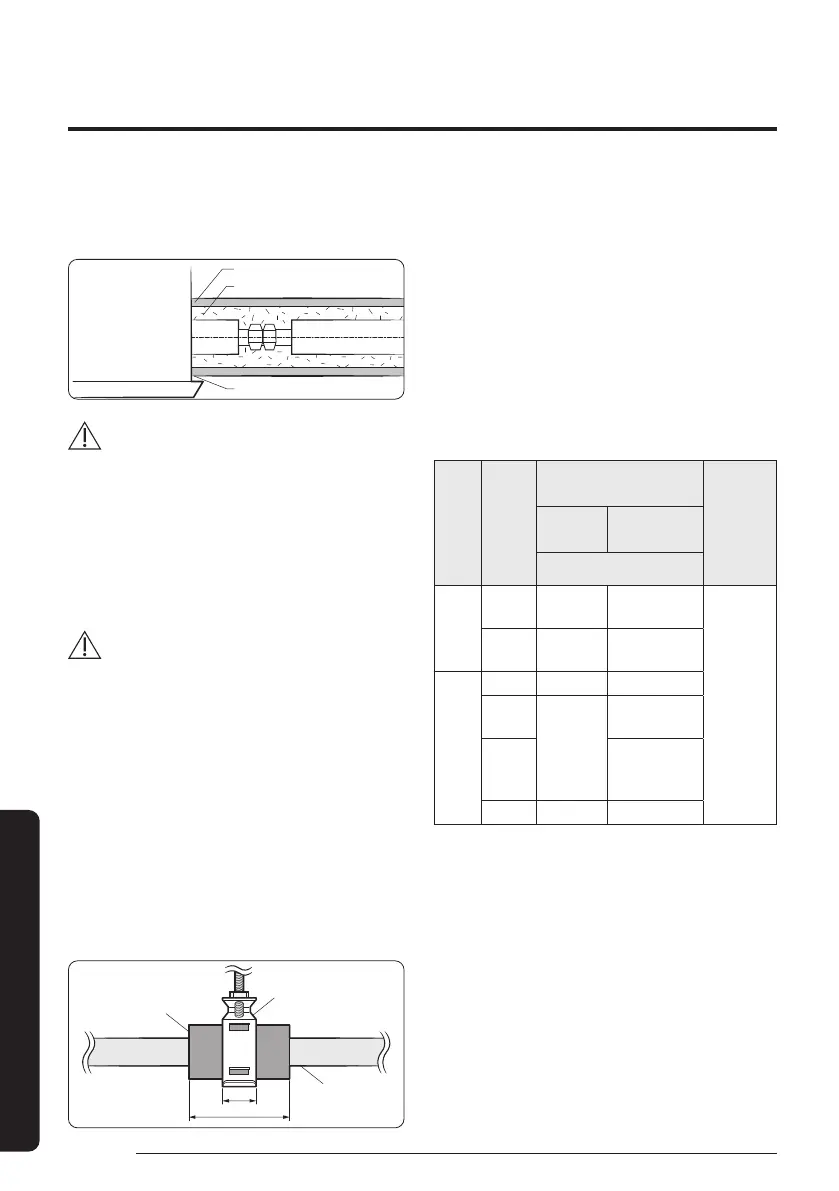

34
English
Regulatory Notice
Installation manual
2 Wind insulating tape around the pipes and
drain hose avoiding compressing the insulation
too much.
Insulation cover pipe
Insulation pipe
Be sure to overlap the insulation.
Indoor unit
CAUTION
• Be sure to wrap insulation tightly without any
gaps.
3 Finish wrapping insulating tape around the
rest of the pipes leading to the outdoor unit.
4 The pipes and electrical cables connecting the
indoor unit with the outdoor unit must be fixed
to the wall with suitable ducts.
CAUTION
• Must fit tightly against body without any gap.
• Make sure that all refrigerant connection
must be accessible for easy maintenance and
detachment.
• Install the insulation not to get wider and use
the adhesives on the connection part of it to
prevent moisture from entering.
• Wind the refrigerant pipe with insulation tape
if it is exposed to outside sunlight.
• Install the refrigerant pipe respecting that the
insulation does not get thinner on the bent part or
hanger of pipe.
• Add the additional insulation if the insulation
plate gets thinner.
a x 3
Hanger
Additional insulation
a
Refrigerant pipe
insulation
5 Select the insulation of the refrigerant pipe.
• Insulate the gas side and liquid side pipe,
noting the insulation thickness that must
differ according to the pipe size.
• Standard: Less than an indoor temperature
of 30°C, with humidity at 85%. If installing in
a high humidity environment, use one grade
thicker insulator by referring to the table below.
If installing in an unfavourable environment,
use thicker one.
• The heat-resistance temperature of the
insulator must be more than 120°C.
Pipe
Pipe size
(mm)
Insulation Type
(Heating/Cooling)
Remarks
Standard
[30°C, 85%]
High humidity
[30°C, over 85%]
EPDM, NBR
Liquid
pipe
Ø6.35 to
Ø9.52
9t ←
Internal
temperature
is higher
than 120°C
Ø12.7 to
Ø50.80
13t ←
Gas
pipe
Ø6.35
13t 19t
Ø9.52 to
Ø25.40
19t
25t
Ø28.58
to
Ø44.45
32t
Ø50.80
25t 38t
• When installing insulation in the places and
conditions below, use the same insulation
that is used for high humidity conditions.
Installation Procedure
