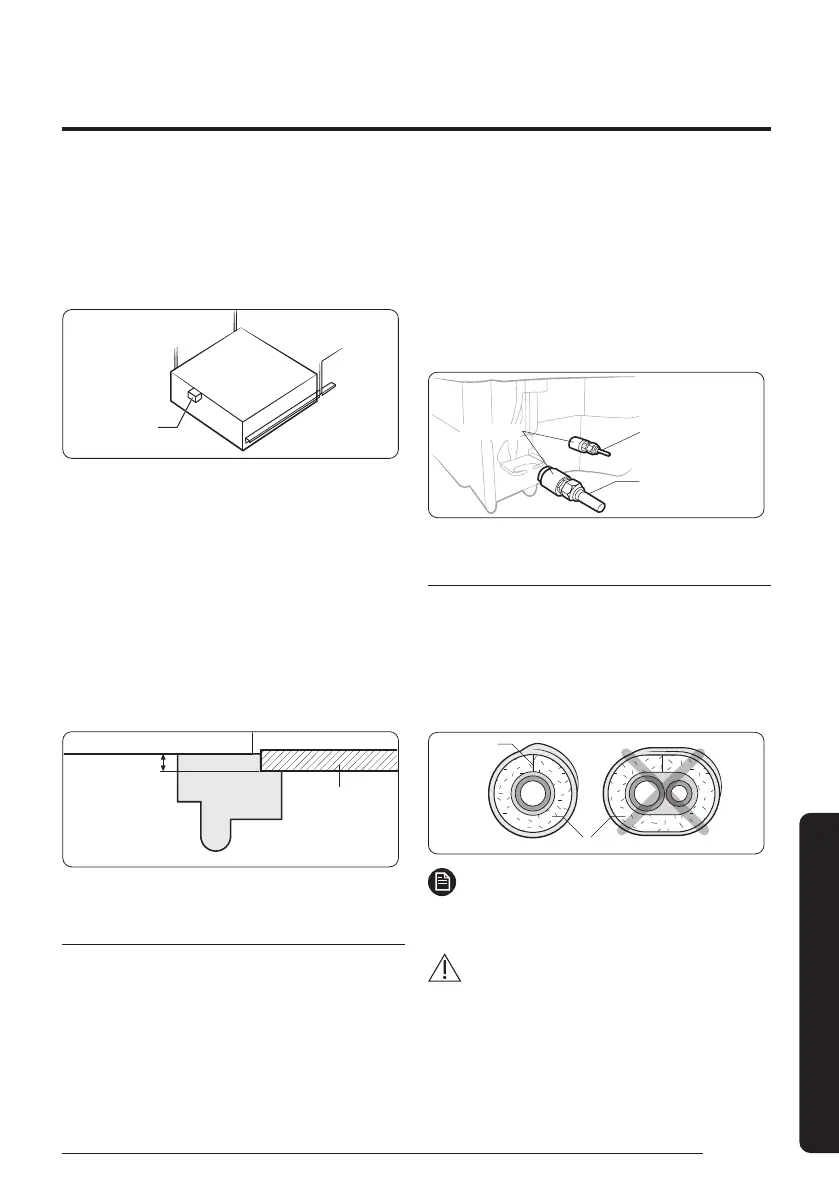

Installation manual
6 Check the level of the indoor unit by using a
leveler.
• A tilt of the indoor unit may cause
malfunction of a built-in float switch and
water leaks.
Level
7 Adjust the unit to the appropriate position,
taking into account the installation area for the
front panel.
• Place the pattern sheet on the indoor unit.
• Adjust the space between the ceiling and
the indoor unit by using a dimension gauge.
• Fix the indoor unit securely after adjusting
the level of the unit by using a leveller.
• Remove the pattern sheet, connect the
other cables. and install the front panel.
Ceiling
Indoor unit
23 mm
Gauge of dimensions
Step 2 Performing the gas leak test
To identify potential gas leaks on the indoor unit,
inspect the connection area of each refrigerant
pipe using a leak detector for R-32.
Before recreating the vacuum and recirculating
the refrigerant gas, pressurize the whole system
with nitrogen (using a cylinder with a pressure
reducer) at a pressure above 0.2 MPa, less than 4
MPa (gauge) in order to immediately detect leaks
on the refrigerant fittings.
Made vacuum for 15 minutes and pressurizing
system with nitrogen.
Liquid side
Gas side
Insulator
Step 3 Insulating the refrigerant pipes
Once you have checked that there are no leaks in
the system, you can insulate the piping and hose.
1 To avoid condensation problems, place
Acrylonitrile Butadien Rubber separately
around each refrigerant pipe.
No gap
NBR
NOTE
• Always make the seam of pipes face upwards.
CAUTION
• The insulation has to be produced in full
compliance with European regulation EEC /
EU 2037 / 2000 requring the use of sheaths
insulation without using CFC and HCFC gases
for heating and the environment.
