32
English
Regulatory Notice
Installation manual
Installation manual

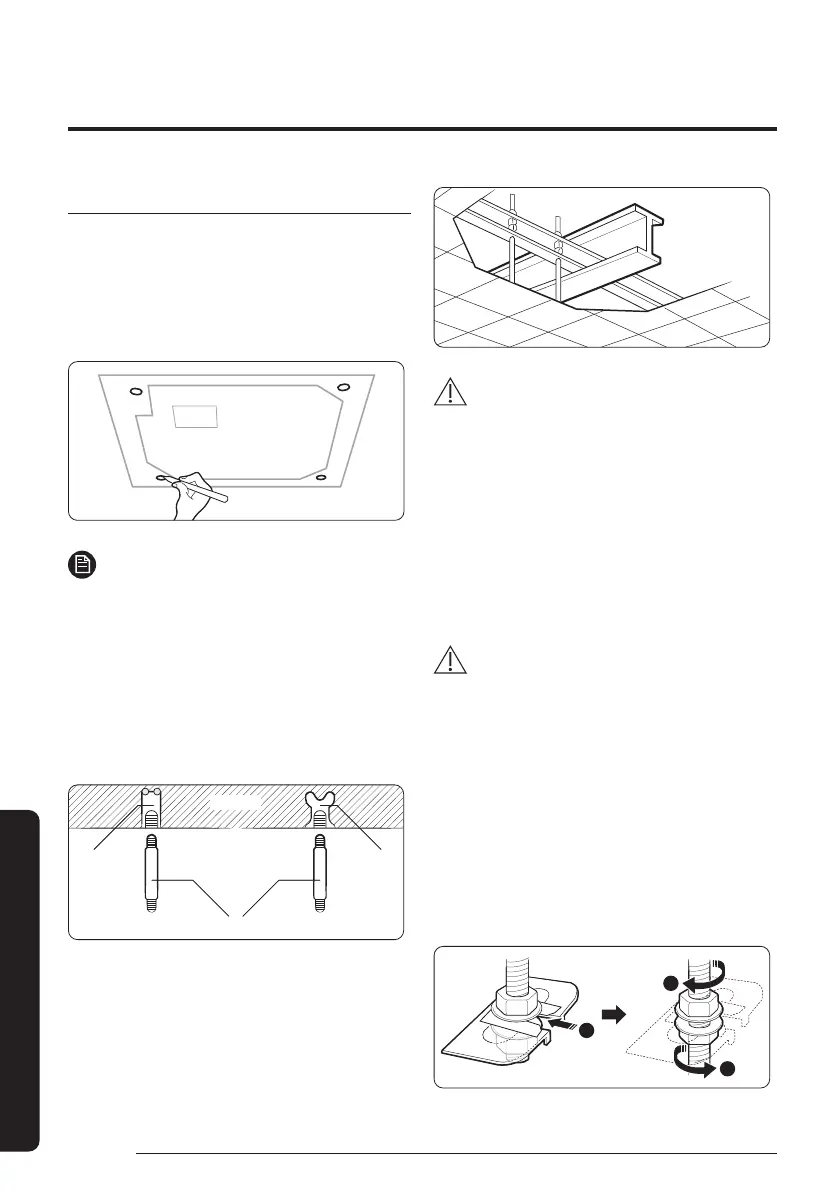

Installation Procedure
Step 1 Installing the indoor unit
When deciding on the location of the air
conditioner the following restrictions must be
taken into account.
1 Place the pattern sheet on the ceiling at the
spot where you want to install the indoor unit.
NOTE
• Since the diagram is made of paper, it may
shrink or stretch slightly due to temperature
or humidity. For this reason, before drilling
the holes, be sure to maintain the correct
dimensions between the markings.
2 Insert bolt anchors, use existing ceiling
supports or construct a suitable support as
shown in figure.
Concrete
Hole in anchor
Hole in plug
Suspension bolt (M8) - field supply
Insert
3 Install the suspension bolts, depending on the
ceiling type.
Ceiling support
CAUTION
• Make sure that the ceiling is strong enough to
support the weight of the indoor unit. Before
hanging the unit, test the strength of each
attached suspension bolt.
• If the length of the suspension bolt is more
than 1.5 m, you are required to prevent
vibration.
4 Screw eight pairs of nuts and washers to the
suspension bolts, making space for hanging
the indoor unit.
CAUTION
• You must install all of the suspension rods.
• It is important to leave sufficient space in the
false ceiling to allow access for maintenance
or repairs to the drainage pipe connection, the
refrigerant pipe connection, or to remove the
unit if necessary.
5 Hang the indoor unit to the suspension bolts
between two nuts. Cut a pad stopper and place
it on the suspension bolts to hold the washer.
Remove the stopper and screw the nuts to fix
the unit.
1
2
2
