English

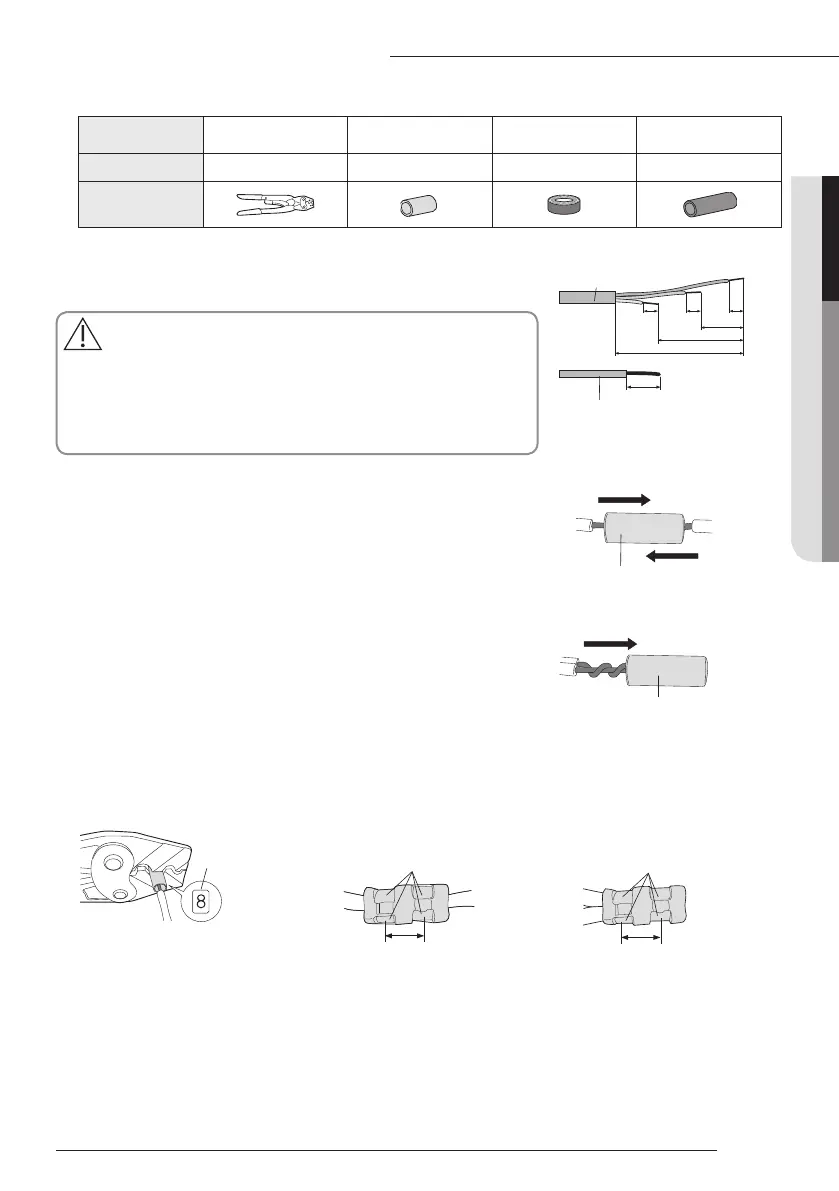

1. Prepare the following tools.
Tools Crimping pliers
Connection sleeve
(mm)
Insulation tape
Contraction tube
(mm)
Spec MH-14 20xØ6.5(HxOD) Width 19mm 70xØ8.0(LxOD)
Shape
2. As shown in the gure, peel off the shields from the rubber and wire
of the power cable.
- Peel off 20 mm of cable shields from the pre-installed tube.
CAUTION
• For information about the power cable specications for indoor
and outdoor units, refer to the installation manual.
• After peeling off cable wires from the pre-installed tube, insert
a contraction tube.
(Unit: mm)
120
60
202020
180
Power cable
20
Pre-installed tube for the power cable
3. Insert both sides of core wire of the power cable into the connection
sleeve.
f Method 1
Push the core wire into the sleeve from both sides.
Connection sleeve
f Method 2
Twist the wire cores together and push it into the sleeve.
Connection sleeve
4. Using a crimping tool, compress the two points and ip it over and compress another two points in the
same location.
- The compression dimension should be 8.0.
- After compressing it, pull both sides of the wire to make sure it is rmly pressed.
Compression
dimension
f Method 1
Compress it 4 times.
5 mm
f Method 2
Compress it 4 times.
5 mm
Extending the power cable
