Installing the wind baffle
Installing the wind baffle
If you operate the cooling operation of air conditioner in the condition where ambient temperature is lower than 23 °F
DB(Dry bulb), or the outdoor unit might be faced with strong wind directly, the wind baffle should be installed to prevent
the outdoor unit fan from operating in reverse way.
࢘
Wind baffle is not supplied with the product.
• AC018BXADCH, AC018/024BXSCCC
AC018BXSCCC AC018BXADCH, AC024BXSCCC

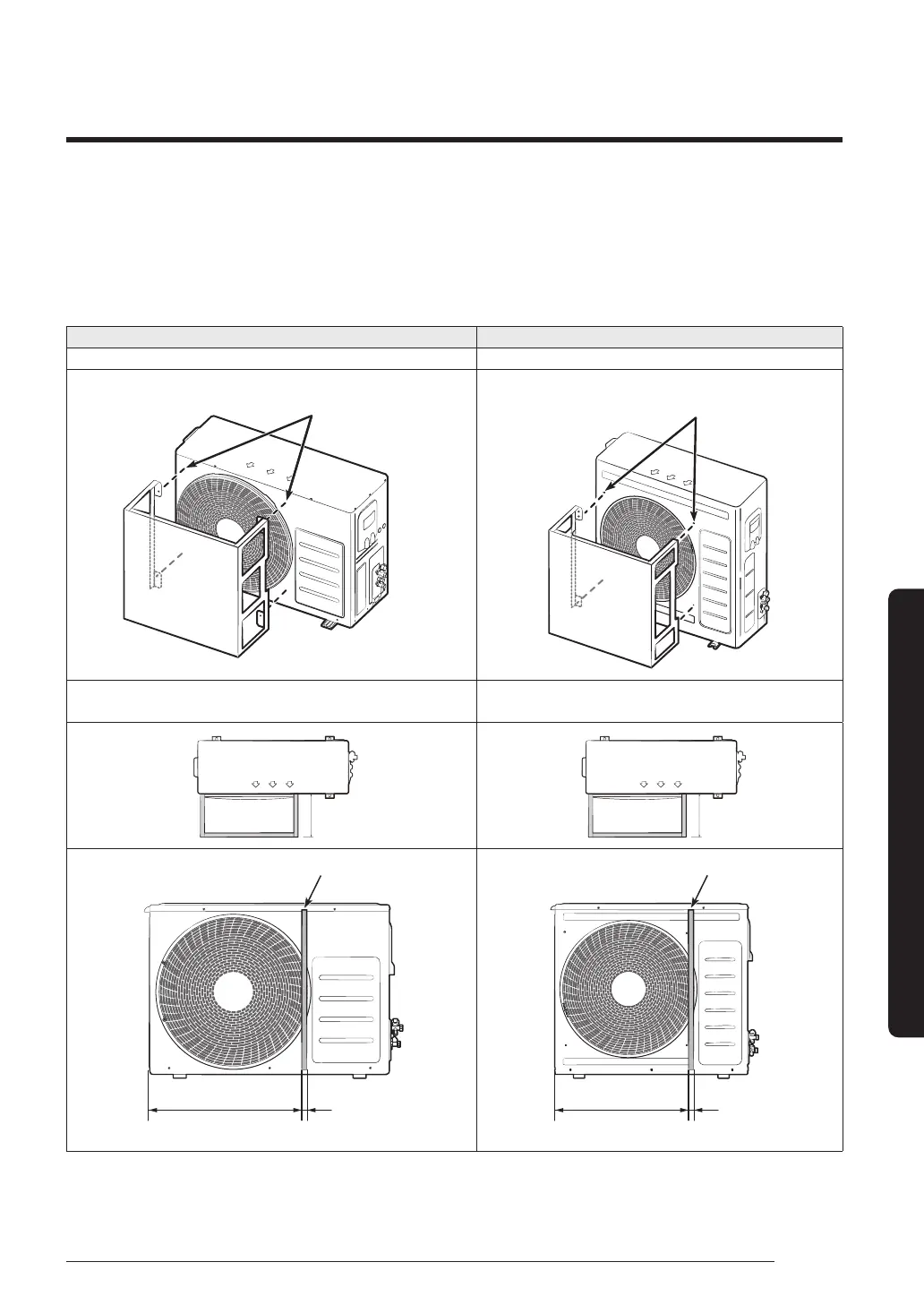

<Front View> <Front View>
Make holes on the front side and
attach the wind baffle using screws.
Make holes on the front side and
attach the wind baffle using screws.
<Top Down View>
“A” – Should be 7 7/8” (200mm) or longer
<Top Down View>
“A” – Should be 7 7/8” (200mm) or longer
"A" "A"
21.89inch (555.9mm)
0.72inch (18.2mm)
Partition
24.19 inch (614.3mm)
0.47 inch (12mm)
Partition
