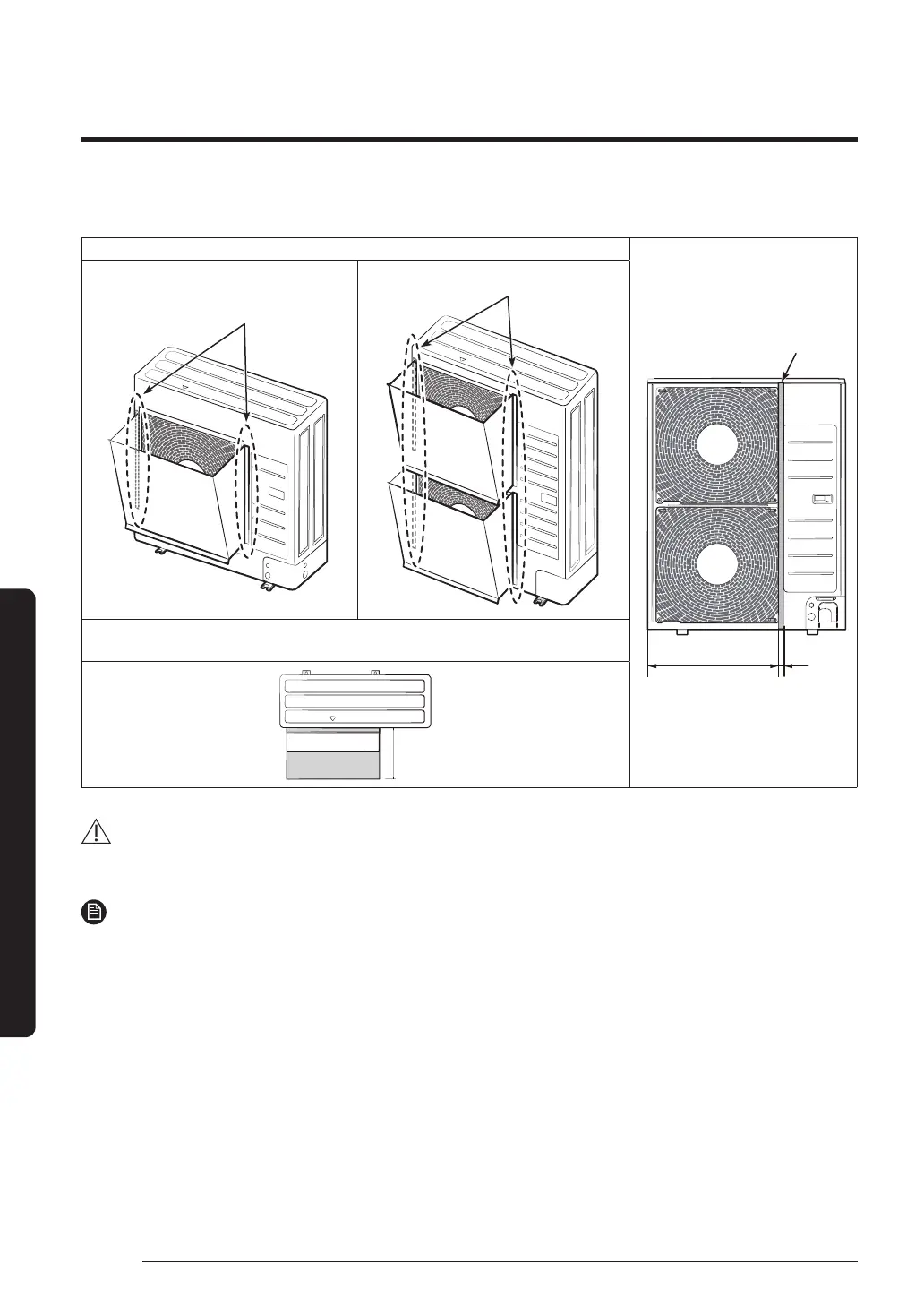

Installing the wind baffle
English
Installing the wind baffle
• AC024/030/036/042/048BXADCH, AC030/036BXSCCC, AC030/036BXSCCH
<Front View>
24.6 inch (624.9mm)
0.6 inch (15.3mm)
Partition
Make holes on both sides and attach the
wind baffle using screws.
Make holes on both sides and attach the
wind baffle using screws.
<Top Down View>
“A” – Should be 7 7/8” (200mm) or longer
"A"
CAUTION
• When attaching the wind baffle using screws, be careful that the screws do not damage the partition and the heat
exchanger.
NOTE
• Install outdoor units with the back surface facing wall side to eliminate the effects of external wind.
