English
Connecting the cable
Two electronic cables must be connected to the outdoor unit.
f The connection cord between indoor unit and outdoor unit.
f The power cable between outdoor unit and auxiliary circuit breaker.
f Specially for Russian and European market, before installation, the supply authority should be consulted to determine the
supply system impendance to ensure compliance.
• During the unit installation make rst refrigerant connections and then electrical connections. If unit is
uninstalled rst disconnect electrical cables, then refrigerant connections.
• Connect the air conditioner to grounding system before performing the electrical connection.
• When installing the unit, you shouldn't use inter connection wire.
CAUTION

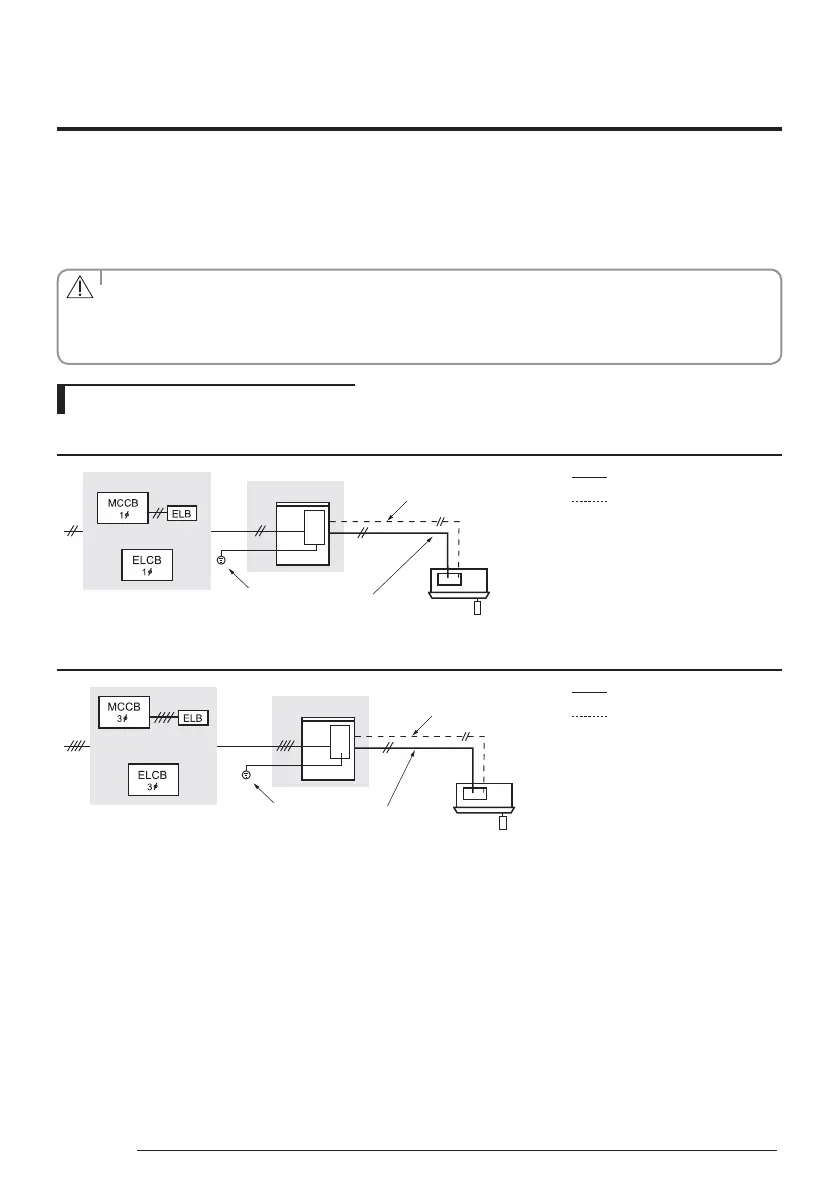

Example of Air Conditioner System
When using ELCB for 1 phase
Indoor Unit
Power cable
Outdoor Unit
Communication cable
Grounding
OR
Power cable
Communication cable
When using ELCB for 3 phase 4 wires
Indoor Unit
Power cable
OR
Outdoor Unit
Communication cable
Grounding
Power cable
Communication cable
❋ If an outdoor unit is installed in a place in danger of an electric leak or submergence, you must install the ELCB.
