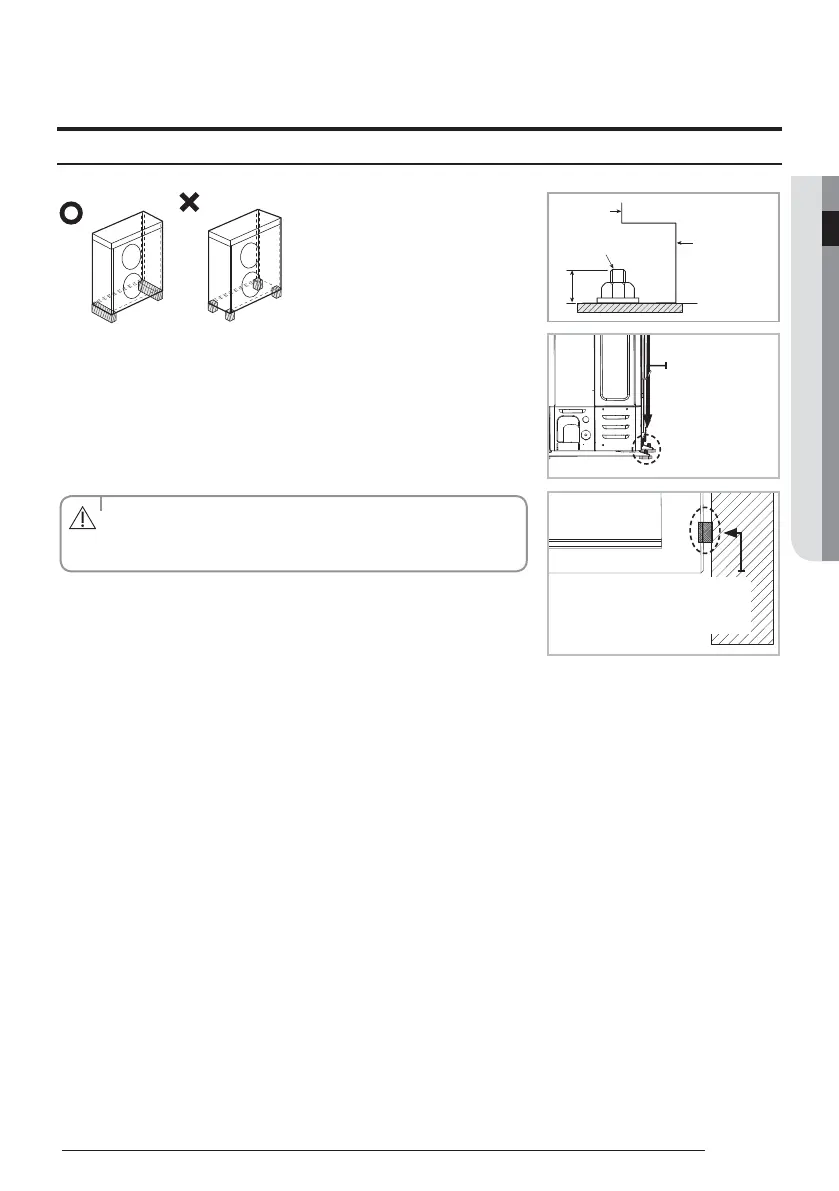

02 INSTALLATION
13
English
Outdoor Unit Support
NN
Anchor bolt
Outdoor
Unit
Base Surface
Outdoor Unit
Support
Soft rubber designed to cut o
vibration from rack to wall.
(not supplied with product)
Designed to
cut o residual
vibration from
outdoor unit to
rack.
(not supplied with
product)
OUTDOOR UNIT INSTALLED ON THE WALL BY RACK
f Ensure the wall will be able to suspend the weight of rack and outdoor unit ;
f Install the rack close to the column as much as possible ;
f Install proper grommet in order to reduce noise and residual vibration
transferred by outdoor unit towards wall.
When installing air guide duct
• Check and make sure that screws do not damage the copper pipe.
• Secure air guide duct on guard fan.
CAUTION
