Installation Procedure
English
Installation Procedure

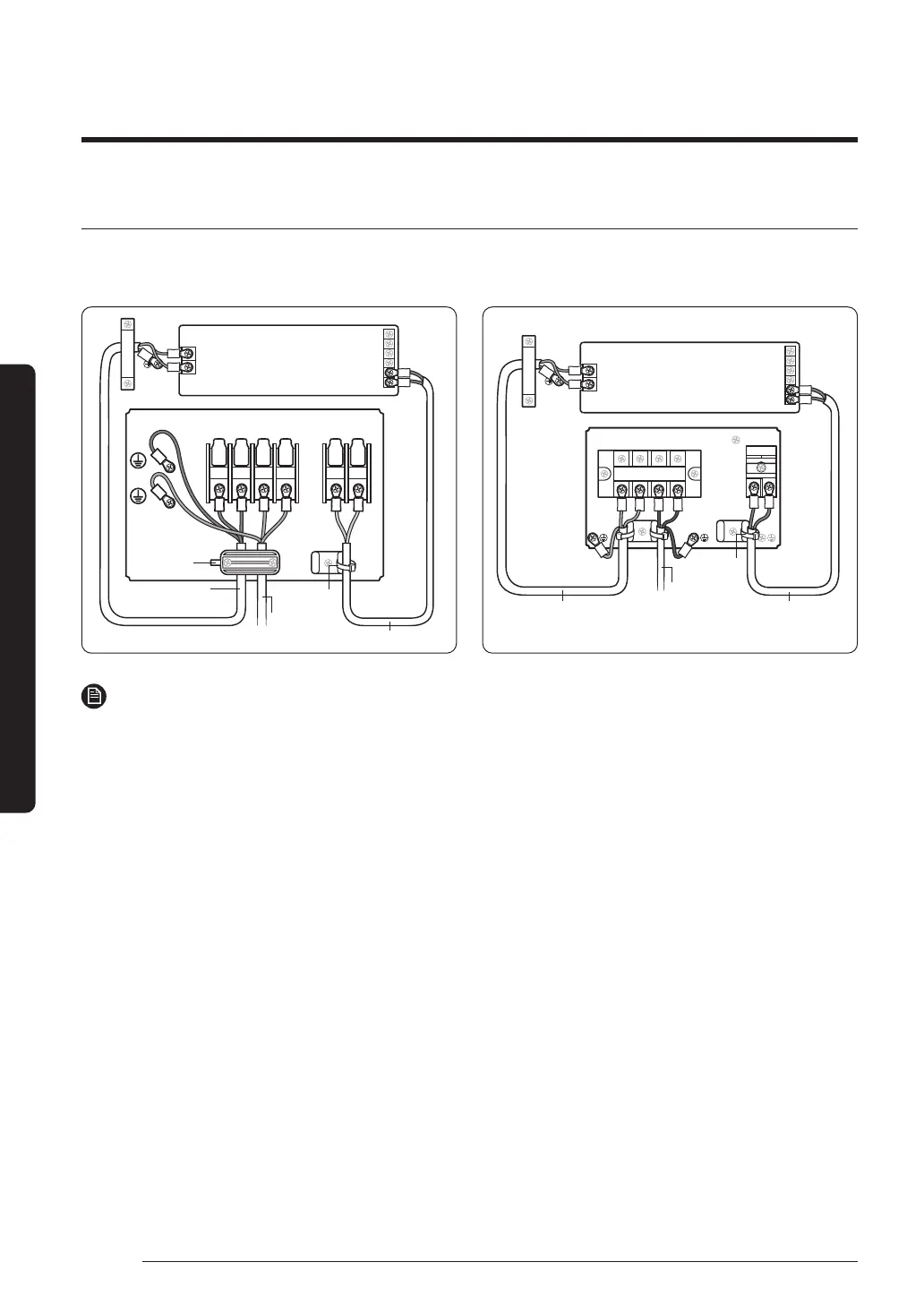

Connecting the outdoor-to-indoor power cable and the communication cable
Indoor unit : 4way CST (AC***TN4PEH)
• AC018/024TXQREH (1-phase) • AC036/048TXQREH (1-phase)
1(L) 2(N ) L N F2F1
LN
F1 F2
Indoor Unit
Outdoor Unit
Cable clamp
Outdoor to indoor
power cable
Cable tie
Main power
cable
Communication cable
1(L) 2(N ) L N
F2F1
LN
F1 F2
Indoor Unit
Outdoor Unit
Outdoor to indoor
power cable
Cable tie
Main power
cable
Communication cable
NOTE
• Lay the electrical wiring so that the front cover does not rise up when doing wiring work and attach the front cover
securely.
• Ground wire for the indoor unit and outdoor unit connection cable must be clamped to a soft copper tin-plated eyelet
terminal with M4 screw hole (NOT SUPPLIED WITH UNIT ACCESSORIES).
