English

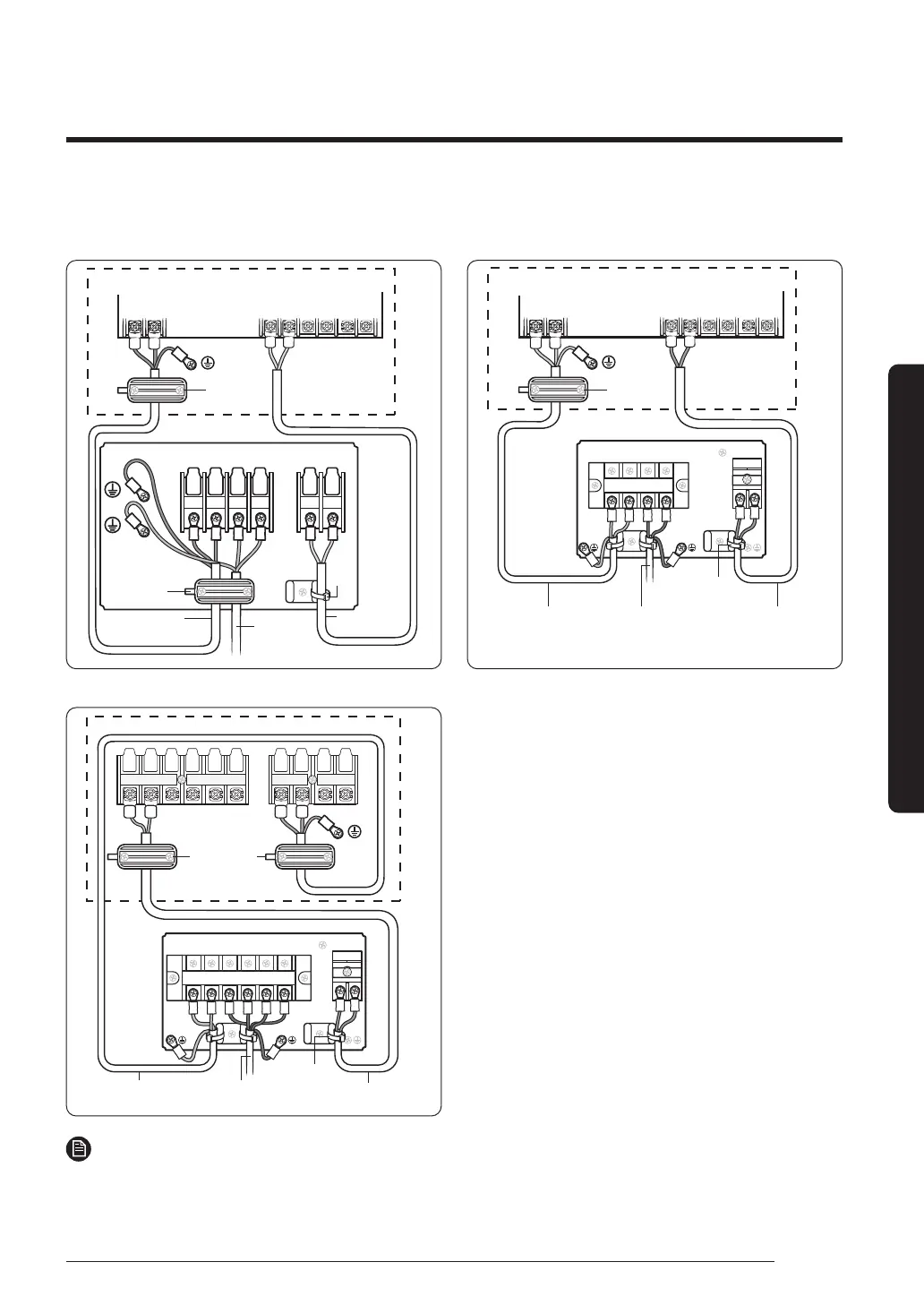

Installation Procedure
Indoor unit: DUCT (AC***TNMPEH)
• AC018/024TXQREH (1-phase) • AC036/048TXQREH (1-phase)
1(L) 2(N) L N F1 F2
L
N
F1
F2
Indoor Unit
Outdoor Unit
Cable clamp
Outdoor to indoor
power cable
Main power
cable
Communication
cable
Cable
tie
Cable clamp
L
N
F1
F2
1(L) 2(N) L N
F1 F2
Indoor Unit
Outdoor Unit
Cable clamp
Outdoor to indoor
power cable
Main power cable Communication cable
Cable tie
• AC060TXQRGH (3-phase)
1(L) 2(N) L1(R) L2(S) L3(T) N
F1 F2
1(L) 2(N) 1 2
V1 V2
F3 F4F2F1
Outdoor Unit
Indoor Unit
Outdoor to indoor
power cable
Main power cable
Communication cable
Cable tie
Cable clamp
NOTE
• Lay the electrical wiring so that the front cover does not rise up when doing wiring work and attach the front cover securely.
• Ground wire for the indoor unit and outdoor unit connection cable must be clamped to a soft copper tin-plated eyelet terminal
with M4 screw hole (NOT SUPPLIED WITH UNIT ACCESSORIES).
