Installation Procedure
3-phase
Model Outdoor unit Input current (Amperes) Power supply
Indoor unit outdoor
rated Voltage range Outdoor unit
Indoor
unit
Total MCA MFA
Hz Volts Min. Max. Cooling Heating
AC060TNMPEH
AC060TXQRGH 50 380 to 415 342 456.5 16.1 16.1
3.8 19.9 19.9 20.0
AC060TNPPEH 1.8 17.9 17.9 20.0
NOTE
1 Voltage range
• Units are suitable for use on electrical systems
where voltage supplied to unit terminal is not
below or above listed range limits
2 Maximum allowable voltage variation between phases is 2%.
3 Wire size & type must comply with the applicable local
and national code.
• Wire size: Based on the value of MCA.
• Wire type:
1-phase: 60245 IEC57(IEC) or H05RN-F(CENELEC)
grade or more
3-phase: 60245 IEC66(IEC) or H07RN-F(CENELEC)
grade or more
4 MFA is used to select the circuit breaker and the ground
fault circuit interrupter (earth leakage circuit breaker).
5 MCA represents maximum input current.
• MFA represents capacity which may accept MCA
• Abbreviations
MCA: Min. Circuit Amps. (A)
MFA: Max. Fuse Amps. (A)
6 This equipment complies with IEC 61000-3-12
provided that the short-circuit power Ssc is greater
than or equal to Ssc (*2) at the interface point between
the user’s supply and the public system. It is the
responsibility of the installer or user of the equipment
to ensure, by consultation with the distribution
network operator if necessary, that the equipment is
connected only to a supply with a short-circuit power
Ssc greater than or equal to Ssc (*2).
Model Ssc [MVA]
AC036TXQREH 0.42
AC048TXQREH 0.43
AC060TXQRGH 3.20

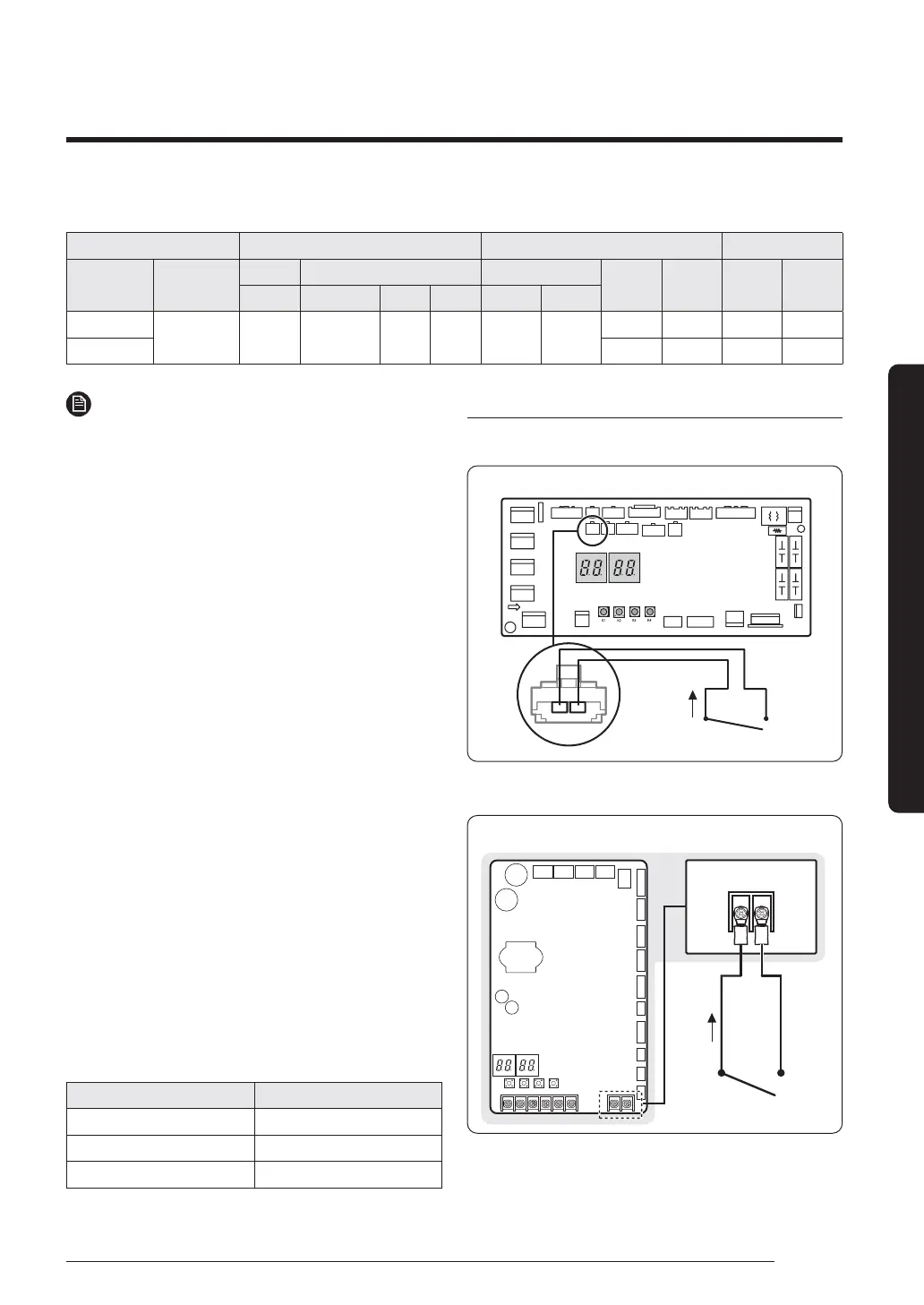

Silence mode controller wiring diagram
• AC018/024TXQREH
CN001
Outdoor unit
CN001
Non-voltage contact
• AC036/048/060TXQR*H
Outdoor unit
ASSY Control out
Non-voltage contact
