Installation Procedure
English
Installation Procedure

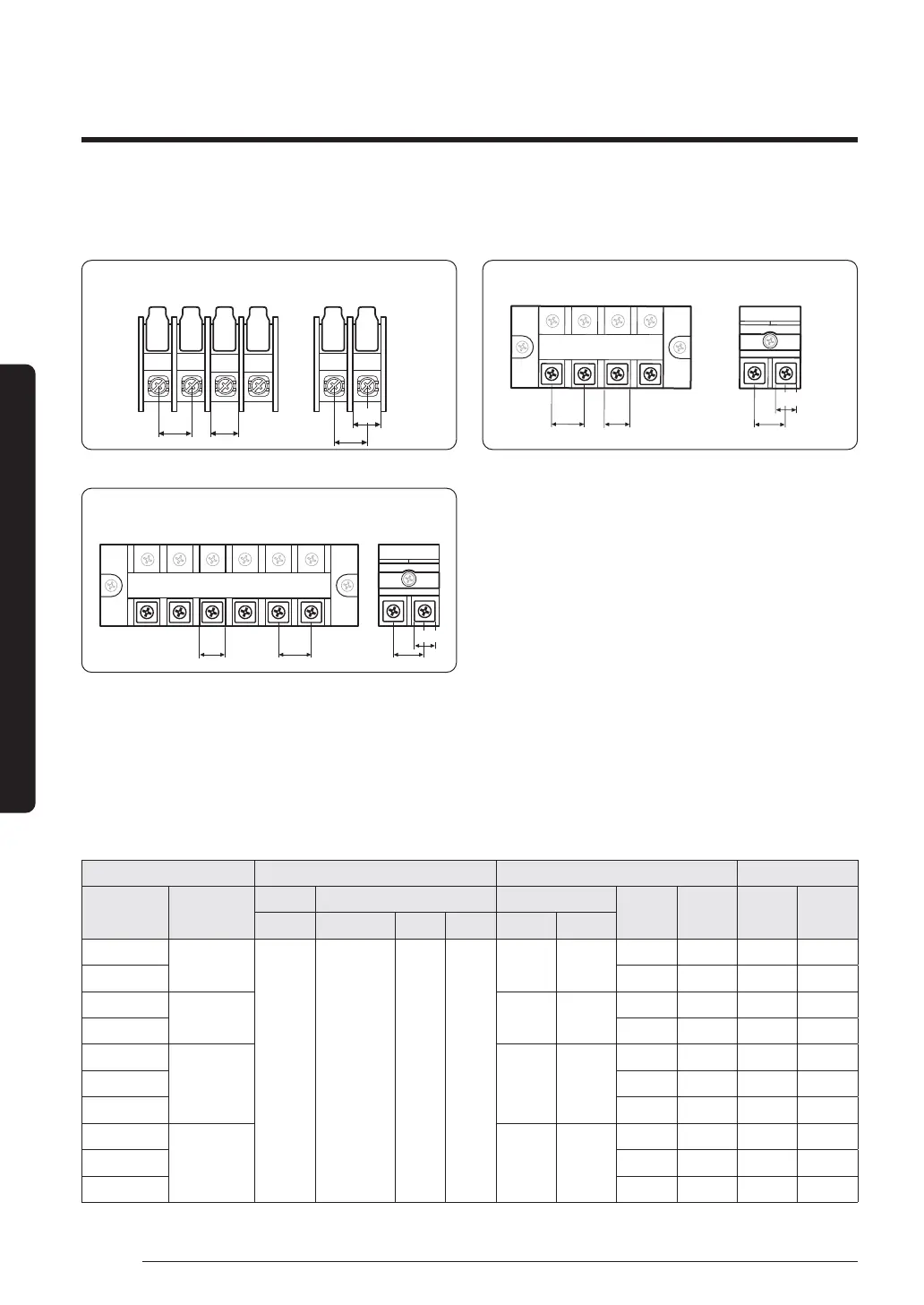

Main power terminal block specifications
• AC018/024TXQREH (1-phase) • AC036/048TXQREH (1-phase)
1(L) 2(N)
N
L
F1 F2
Communication: M4 screwAC power: M4 screw
16.3 12
11.4
10.1
(Unit : mm)
1(L) 2(N)
F1 F2
LN
AC power: M4 screw Communication: M4 screw
15
12
11.4
10.1
(Unit : mm)
• AC060TXQRGH (3-phase)
1(L) 2(N) L1(R) L2(S) L3(T) N
F1 F2
AC power: M4 screw
Communication:
M4 screw
9.95 11.55 10.1
11.4
(Unit : mm)
Main power cable specifications
The power cable is not supplied with air conditioner.
• Select the power supply cable in accordance with relevant local and national regulations.
• Wire size must comply with the applicable local and national code.
• Specifications for local wiring power cord and branch wiring are in compliance with local cord.
1-phase
Model Outdoor unit Input current (Amperes) Power supply
Indoor unit outdoor
rated Voltage range Outdoor unit
Indoor
unit
Tot al MCA MFA
Hz Volts Min. Max. Cooling Heating
AC018TN4PEH
AC018TXQREH
50 220 to 240 198 264
17.5 17.5
1.5 19.0 19.0 20.0
AC018TNMPEH 2.5 20.0 20.0 20.0
AC024TN4PEH
AC024TXQREH 20.0 20.0
1.5 21.5 21.5 25.0
AC024TNMPEH 2.5 22.5 22.5 25.0
AC036TN4PEH
AC036TXQREH 24.0 24.0
1.5 25.5 25.5 30.0
AC036TNMPEH 2.5 26.5 26.5 30.0
AC036TNPPEH 1.8 25.8 25.8 30.0
AC048TN4PEH
AC048TXQREH 32.0 32.0
1.5 33.5 33.5 40.0
AC048TNMPEH 2.5 34.5 34.5 40.0
AC048TNPPEH 1.8 33.8 33.8 40.0
