English
Installation Procedure

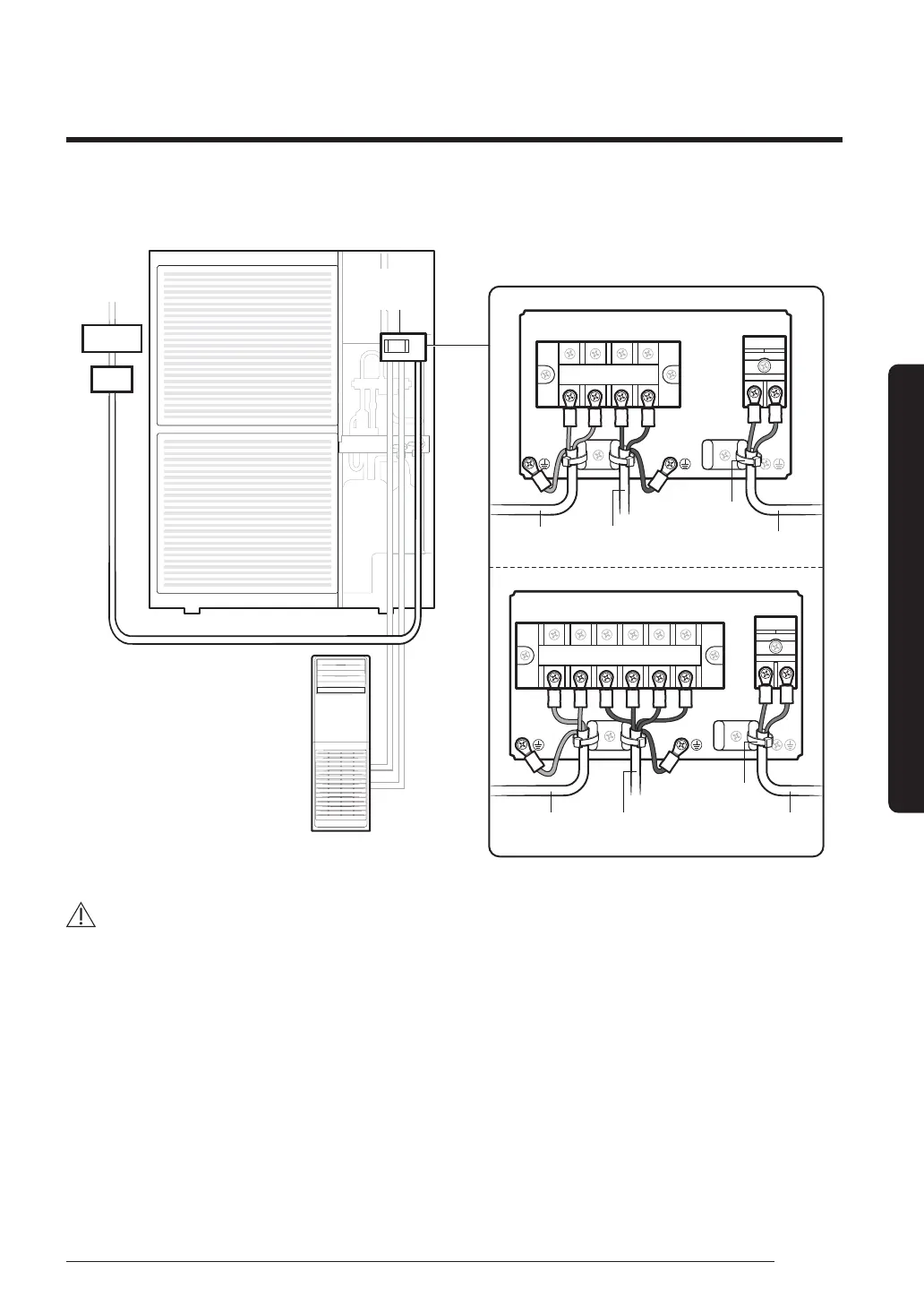

When using ELB for AC036/048/060TXQR*H
1(L) 2(N) L1(R) L2(S) L3(T) N
F1 F2
1(L) 2(N) L N
F1 F2
Power supply
Electrical
component box
Indoor Unit
MCCB
ELB
The appearance of the unit may be different
from the picture depending on the model.
AC036/048TXQREH (1-phase)
AC060TXQRGH (3-phase)
Outdoor-to-indoor
power cable
Outdoor-to-indoor
power cable
3-phase 4-wire main
power cable (AC 380V)
Communication cable
Cable tie
Main power cable
Communication cable
Cable tie
CAUTION
• You should connect the power cable into the power cable terminal and fasten it with a clamp.
• The unbalanced power must be maintained within 2% of supply rating.
If the power is unbalanced greatly, it may shorten the life of the condenser. If the unbalanced power is exceeded over
4% of supply rating, the indoor unit is protected, stopped and the error mode indicates.
• To protect the product from water and possible shock, you should keep the power cable and the connection cord of
the indoor and outdoor units within ducts. (with appropriate IP rating and material selection for your application)
• Ensure that main supply connection is made through a switch that disconnects all poles, with contact gap of a least
ߤࢋ
• Devices disconnected from the power supply should be completely disconnected in the condition of overvoltage
category.
• çʪʪΧʒϑϩɇʀʪϑͱ˙ߦߡͱθͱθʪɵʪϩиʪʪΧͱиʪθʀɇɵʪɇʒʀͱЇʀɇϩͱʀɇɵʪࢋ
ki]_TW`ZZ`hTWYptwhjG⢰㫴G㐘㞬ὤG㢨㬅䏬䑀䇘㏘䇸pxluUGGGXX YWYWTXYTW`GGG㝘㤸GXXa[`aZ`
