Russound AW70V6mk2 70V Surface Mount Indoor/Outdoor Speaker Installation Manual 7

Installing the mounting bracket

The speaker can be installed horizontally or vertically. For a

horizontal installation, install the mounting bracket with its end

"C" slots at the top. Also, when installing the speaker outdoors

in the horizontal position, locate the mounting bracket high

enough so the front of the speaker will point down toward the

listening area.

Note: The bracket must be securely attached to the mounting

surface. For an exterior plywood wall with siding, use rust-

resistant screws long enough to penetrate the siding and

plywood. For a standard interior hollow wall, we recommend

screwing the bracket to the wall studs whenever possible. If the

speaker must be mounted between studs, use a minimum of

two hollow-wall anchors to secure the bracket. For a masonry

wall, use suitable anchors.

Installation on wood

1. Using the mounting bracket as a template, mark the

locations of the mounting screws.

2. Drill pilot holes for the screws.

3. For an exterior wall, apply a ring of caulk or sealant around

each hole.

4. Screw the bracket to the wall or other surface.

Installation on a hollow wall

1. Once you have determined roughly where to mount the

speakers, use a stud nder to locate the wall studs and mark

their location.

2. Using the bracket as a template, mark the mounting screw

locations.

3. If you are attaching the bracket to studs, use a small drill to

make pilot holes for the mounting screws. If you are using

hollow-wall anchors, use a drill of the size recommended by

the anchor manufacturer.

4. Screw the mounting bracket to the wall studs using suitable

screws, or secure the wall anchors in the wall and attach the

bracket to them.

INSTALLING THE BRACKET ON WALL SURFACE

Installation on masonry

1. Using the mounting bracket as a template, mark the

locations of the mounting screws.

2. Use a masonry drill to make pilot holes for the anchors.

3. Insert the suitable masonry anchors into the pilot holes and

attach the mounting bracket with screws.

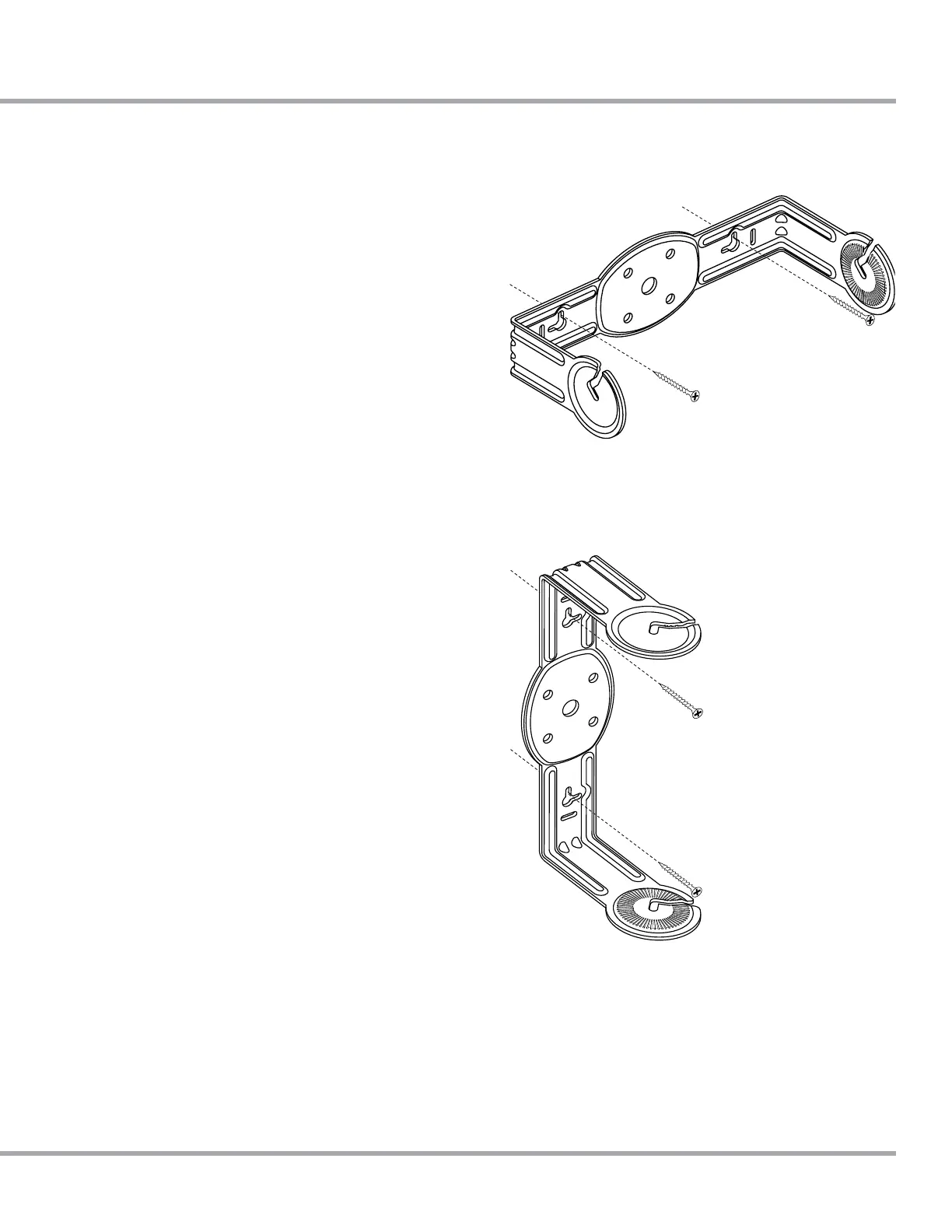

Mounting bracket horizontal position

Mounting bracket vertical position
