6 Russound AW70V6mk2 70V Surface Mount Indoor/Outdoor Speaker Installation Manual

WIRING INFO - 6 OHM OPERATION

Speaker cable

The amount of wire needed varies with speaker placement.

Label speaker wires with left, right, and location.

Use Russound AW series speaker cable or any reputable brand

of 16 to 12 gauge multi-stranded wiring for amplier- to-

speaker connections.

Wire is measured in gauges: the greater the number, the

smaller the wire. The gauge of wire needed is determined by

the distance between the amplier/receiver and the speakers.

The longer the run, the heavier the gauge needed. Use the

following chart as a guide:

Length Minimum Gauge

0' to 100' 16

50' to 150' 14

100' to 200' 12

The standard colors on the terminals are red Positive (+) and

black Negative (-). If the wire has transparent insulation, one

conductor will be copper-colored (+) and the other silver-

colored (-). If the wire has an opaque insulation, the conductors

are dierentiated by a series of ribs or grooves, a stripe, or

dotted line on one conductor. Use and mark these as the

Positive (+) conductor.

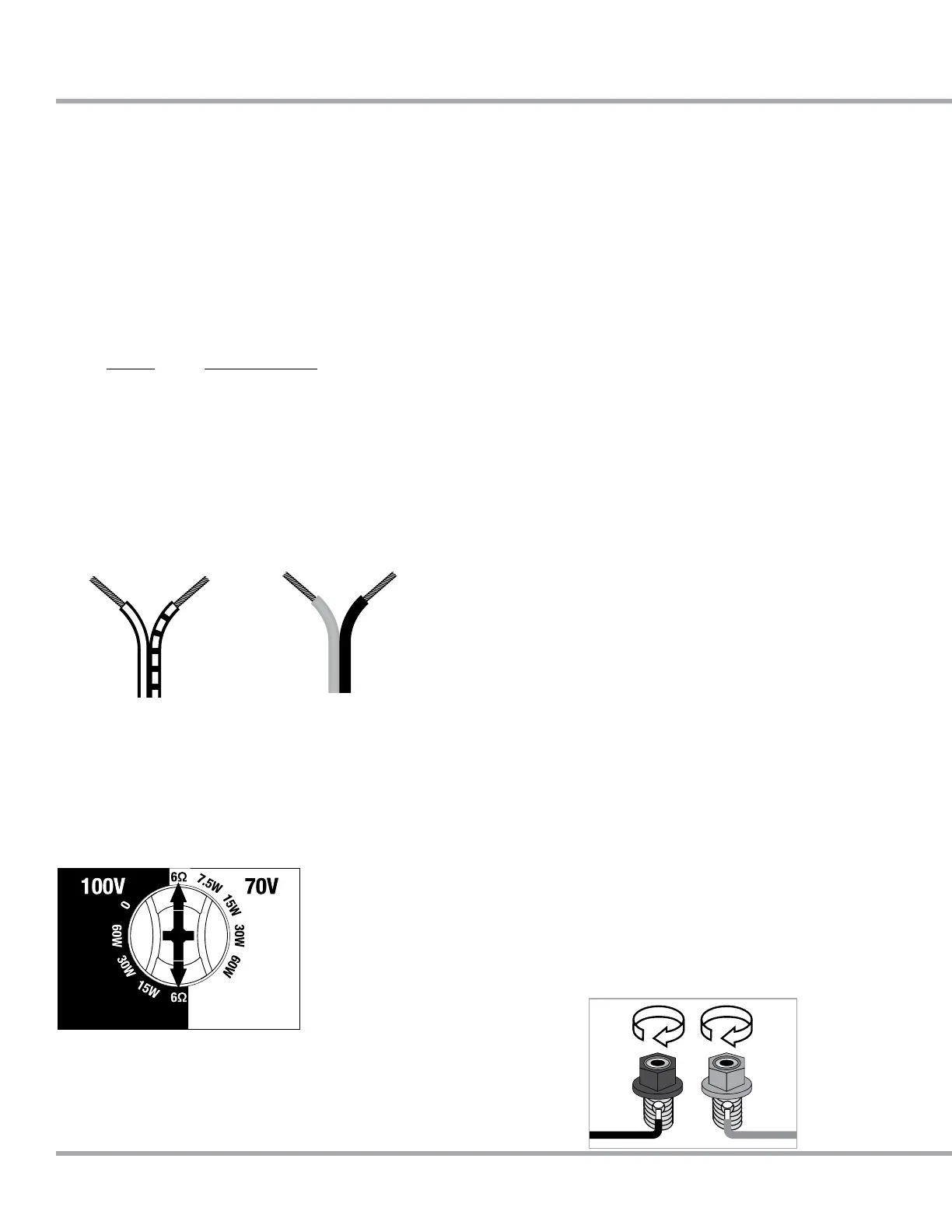

Typical usage of speaker wire conductors

-

+

-

+

Connecting the speaker

1. Strip 1 to 2 inches (2.5 to 5 cm) o the end of the cable

jacket. Then strip ½ inch (1.3 cm) of insulation o each wire.

2. Twist the wire strands together so there are no strands

separated from the bundle.

3. Connect the wires to the speaker terminals, being sure to

observe proper polarity. For standard speaker cable with red

and black wires, connect the red wire to the red positive (+)

terminal and the black wire to the black negative (–) terminal.

Note: Some speaker cables may have other ways of

designating polarity. Cable with a clear jacket has a copper-

colored wire for positive and a silver-colored wire for negative.

In a cable with white and black wires, the white is positive and

the black is negative. Cable with both wires the same color may

have grooves, ribs, or stripes on the positive wire.

4. Check to make sure there are no stray strands of wire

outside the terminals. If there are, remove the wire, twist the

strands together, and reconnect the wire to the terminal.

Tap Setting Knob

When using the AW70V6mk2 speakers with a low impedance

system (such as with a 4Ω or 8Ω amplier or receiver), make

sure that the tap setting switch is set to the 6Ω position. This

is the only appropriate setting when using the AW70V6mk2

speakers with a low impedance amplier.

Prewiring

Run a separate 2-conductor stranded copper speaker cable of

at least 16 AWG (1.5 mm) from the amplier to each speaker. Be

sure to use cable with the appropriate re resistance rating for

the application.

When running a speaker cable parallel to an AC power cable,

keep them at least 12 inches (30 cm) apart to minimize

electromagnetic interference. If the speaker cables must cross

AC wiring, cross them at right angles.

Leave about 2 feet (0.6 m) of cable at each end for connecting

to the speakers and amplier. Label the cables so you will

know which cable connects to each keypad or amplier output

channel.

• Avoid running speaker wires close to house electrical wiring

for any distance. If you have to run them parallel, leave two

feet between the wiring. Speaker wires should cross AC

lines at a 90° angle.

• The entire path between speakers and amplier should

be clear and unobstructed. Conrm the placement for the

wall port close to the intended location of the amplier or

receiver.

• Label speaker wires at each end with left and right and

location.

Impedance matching for ampliers and speakers

If you intend to use more than one pair of speakers at a time it’s

important to consider both the impedance of the speakers and

the capabilities of the amplier or receiver. Not all ampliers or

receivers can safely operate two sets of speakers at once.
