Russound AW70V6mk2 70V Surface Mount Indoor/Outdoor Speaker Installation Manual 5

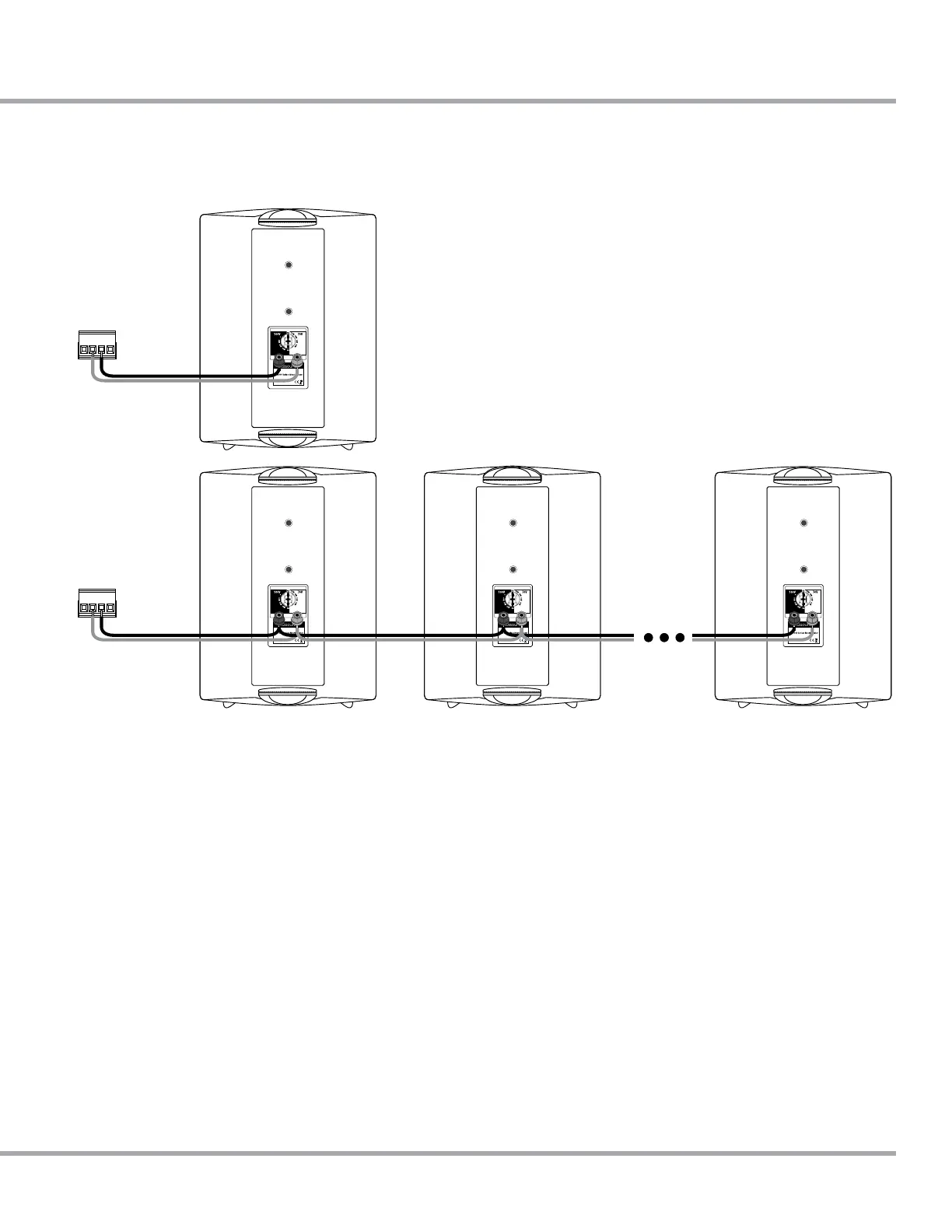

WIRING INFO - 70V/100V OPERATION

color may have grooves, ribs, or stripes on the positive wire to

identify it.

5. Check to make sure there are no stray strands of wire outside

the terminals. If there are, remove the wire, twist the strands

together, and reconnect the wire to the terminal.

6. At the nal loudspeaker, the only wires connected will be

the ones coming from the previous loudspeaker (or from the

amplier if there is only one speaker in the system).

AW70V6mk2

Russound

200 International Drive, Suite 155

Portsmouth, NH 03801 USA

AW70V6mk2

Russound

200 International Drive, Suite 155

Portsmouth, NH 03801 USA

AW70V6mk2

Russound

200 International Drive, Suite 155

Portsmouth, NH 03801 USA

AW70V6mk2

Russound

200 International Drive, Suite 155

Portsmouth, NH 03801 USA

Amplier

Speaker Out

70V COM

Amplier

Speaker Out

70V COM

Optional

Additional

Speakers

Adjust the Tap Settings

The AW70V6mk2 speakers have the following tap settings

available:

70V: 7.5W, 15W, 30W, 60W

100V: 15W, 30W, 60W

6Ω (bypasses the internal transformer)

The tap settings will aect the overall volume of the

loudspeaker in the system. When designing a 70V/100V

system, care must be taken not to exceed the power rating of

the amplier or dangerous clipping may occur. Clipping is the

most common cause of damage to loudspeakers and should

be avoided at all times. The standard rule is to design a system

that leaves 20% of the amplier’s rated power as a reserve. For

example, with a 300-watt amplier, speakers should never be

set with taps that total higher than 240-watts. The ampliers

total load is determined by adding the wattage of each

speaker. When thicker wire or exceptionally long wire runs are

used, there is an additional component of current loss due to

the cable that can become signicant and must be considered

in the calculation. For our example with a 300-watt amplier,

here are the approximate number of speakers that could be

used if each speaker used the following tap settings:

Example: 300-Watt Amplier (saving 20% for overhead, means

240 usable watts maximum)

Tap Settings and maximum number of speakers (depending on

wire gauge and length)

7.5W: Max of 28-32 speakers

15W: Max of 14-16 speakers

30W: Max of 7-8 speakers

60W: Max of 3-4 speakers

For a 70V/100V system, most installations are designed to

blanket an area using more loudspeakers at a lower tap setting

rather than using fewer speakers at a higher tap settings. This

is done to avoid hot spots where very loud sound is heard in

certain areas and less in others. It is much more common for

70V speakers to be set at their lowest tap setting than at their

highest, but each installation may require adjustments due to

the application or environment.

You can adjust the tap setting at any time by turning the tap

setting knob to the new position, but make sure not to exceed

the amplier’s total available wattage when doing so.
