8 Russound AW70V6mk2 70V Surface Mount Indoor/Outdoor Speaker Installation Manual

INSTALLING THE BRACKET ON POLE

Installing the mounting bracket on a pole

The speaker can be installed horizontally or vertically on a pole

with up to 1" (2.54 cm) inner diameter with two standard 5/16

x 1-3/8 x 1/2" U-bolts with 5/16-18" threads. For a horizontal

installation, install the mounting bracket with its end "C" slots

at the top. Also, when installing the speaker outdoors in the

horizontal position, locate the mounting bracket high enough

so the front of the speaker will point down toward the listening

area.

Installation on pole

1. Pass two standard U-bolts behind the pole and slide bracket

over ends.

2. Attach bracket with lock washers and bolts, and tighten.

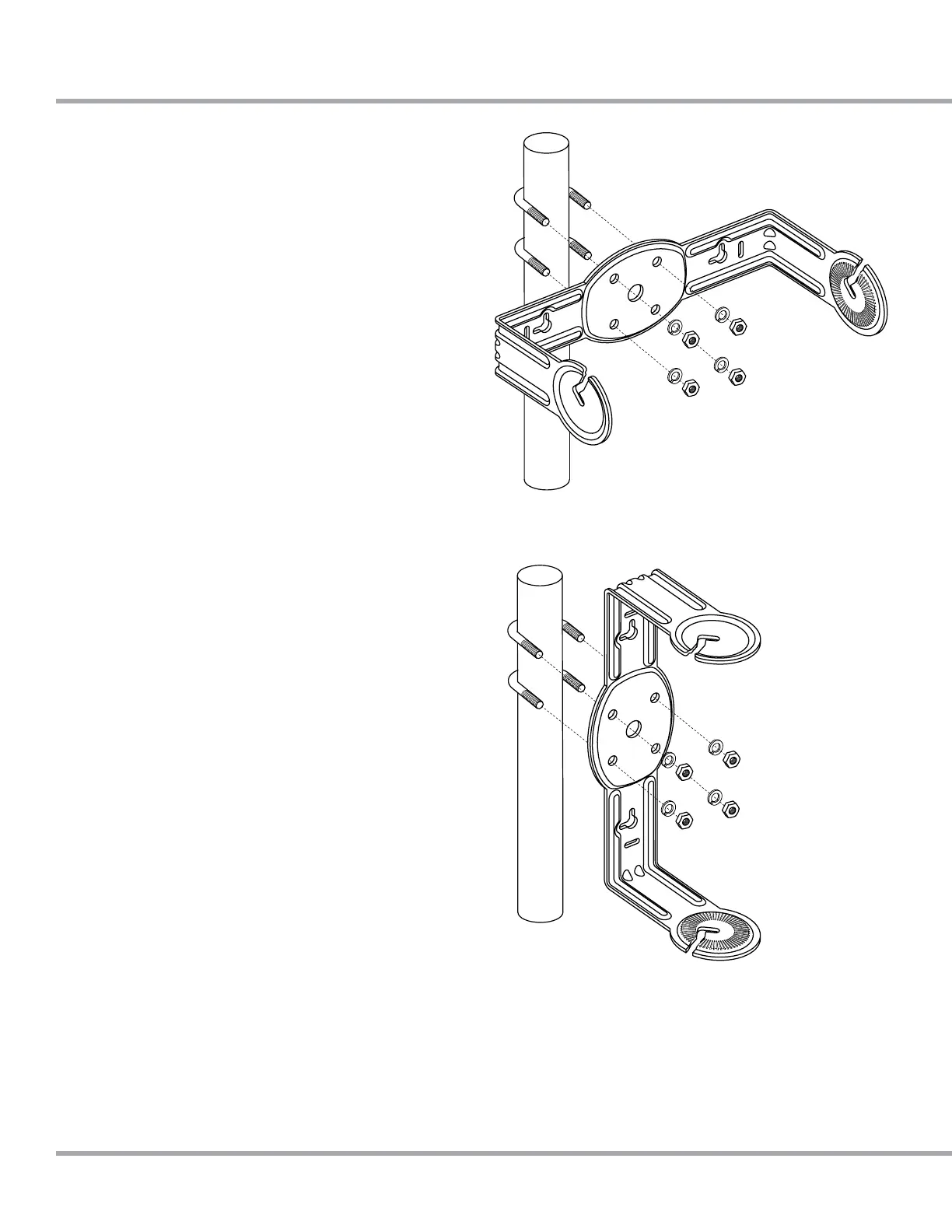

Mounting bracket horizontal position

Mounting bracket vertical position

Installation on in-ground pole

The speaker can be mounted on an in-ground pole with buried

cable. First, consult your local utility companies to learn of

existing buried cables, pipes or lines. Be aware of any local

building code requirements that may be applicable.

1. Drive a 1" (2.54 cm) pipe into the ground at the pre-qualied

location. Determine the length and location for the cable

trench and dig below the frost line. Use either direct buried

speaker cable or cable run through conduit.

2. Pass two standard U-bolts behind the pole and slide bracket

over ends.

3. Attach bracket with lock washers and bolts, and tighten.

4. Leave about 2 feet of cable at the speaker end for

connections and adjustments.
