30 Installation KP Series
Headset Connector
A binaural headset may be connected to the front or rear of the unit for use along with or in place of the front/rear panel
speaker and a separate microphone. Headphones may be connected for use with a separate microphone.
Female Headset Connector
For a female headset connector, the set screw access hole is located on the bottom-right side of the unit.
Male Headset Connector
For a male headset connector, the set screw access hole is located on the right-side of the unit.
IMPORTANT: The right-side rack ear must be removed to expose the set screw access hole.

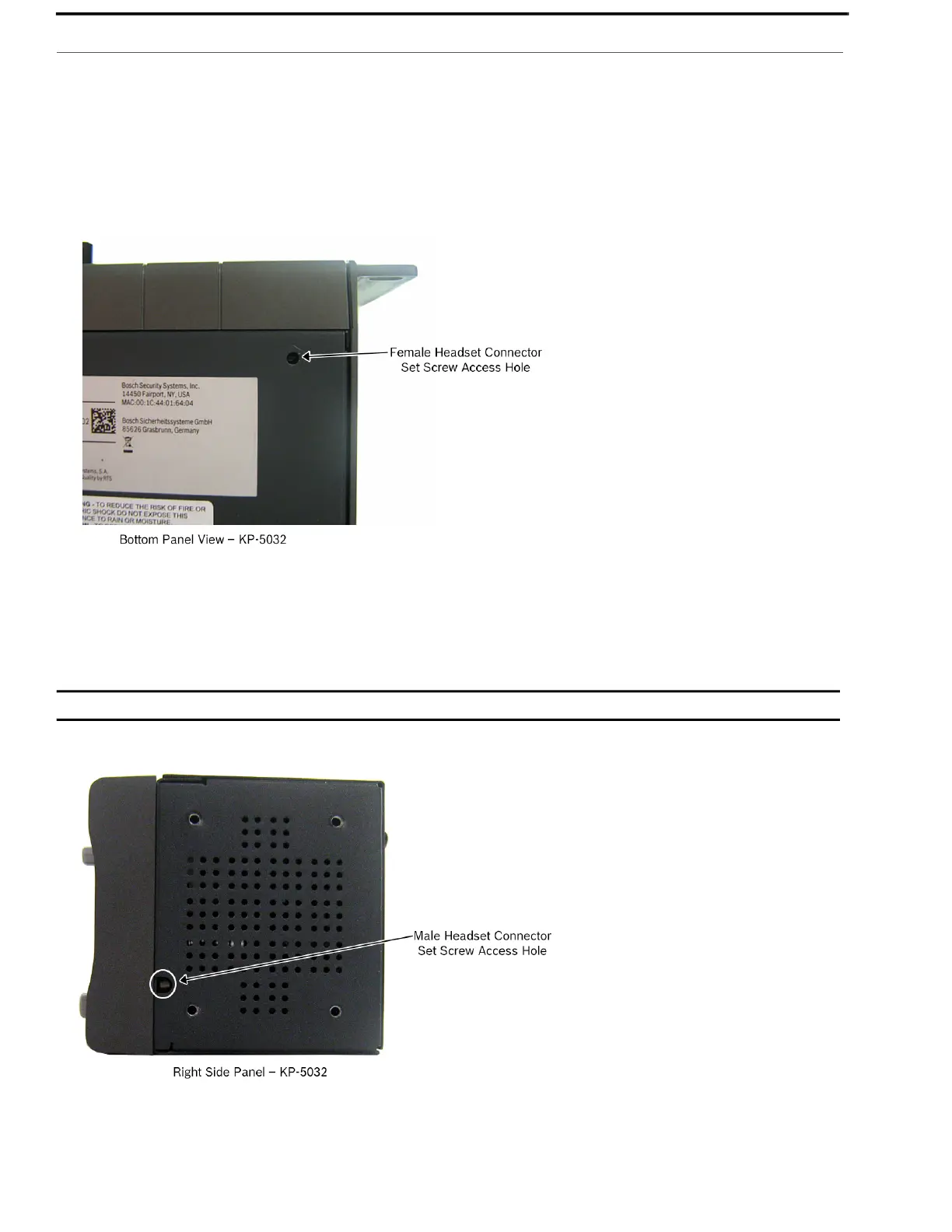

FIGURE 6. Female Headset Connector Set Screw Access Hole
FIGURE 7. Male Headset Connector Set Screw Access Hole
