KP Series Installation 23
KP-4016/4016PB Installation
IMPORTANT: For information on different power supply mounting options, see “Power Supply Mounting Options” on
page 297.
To install the KP-4016, do the following:
1. On the rear panel, plug the 24VDC power connector (A) of the power supply into the power connector on the back
panel of the unit.
2. Connect an RJ-12 or RJ-45 (568B or USOC) cable (B) with RTS cabling to the J8 FRAME connector on the rear
panel.
OR
Connect a CAT-5e cable (C) to either J11 or J12 ETHERNET connector on the rear panel.
NOTE:
• If using the optional J13 fiber connector, connect a fiber connector (D) to the OPTICAL fiber
connector on the rear panel.
• The KP-Series panels can have both AIO and Ethernet connected simultaneously, an the user can switch
between the connections using the menus.
3. Once the unit is cabled, plug the power supply power cord into the wall outlet or a power strip.

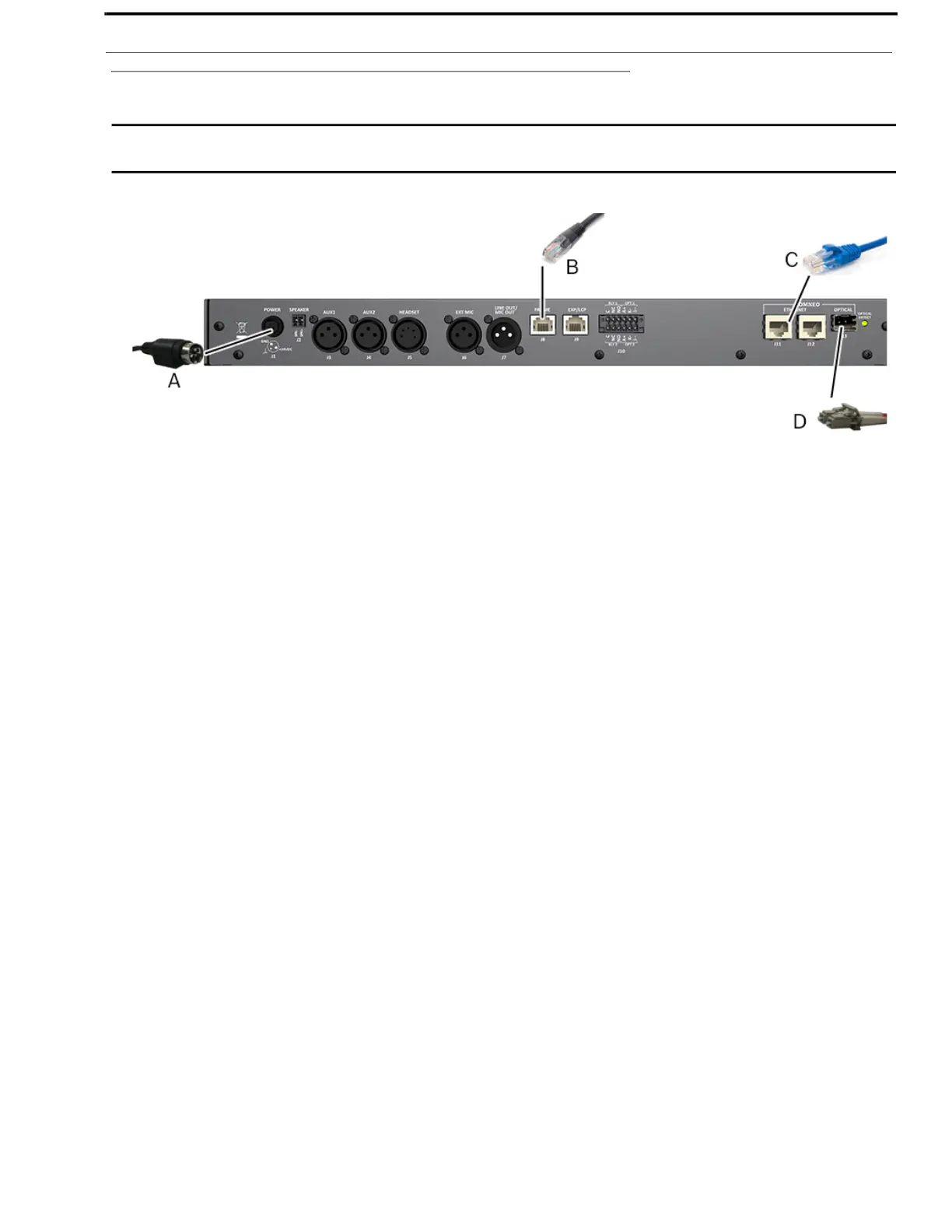

FIGURE 5. KP-4016/4016BP Installation
