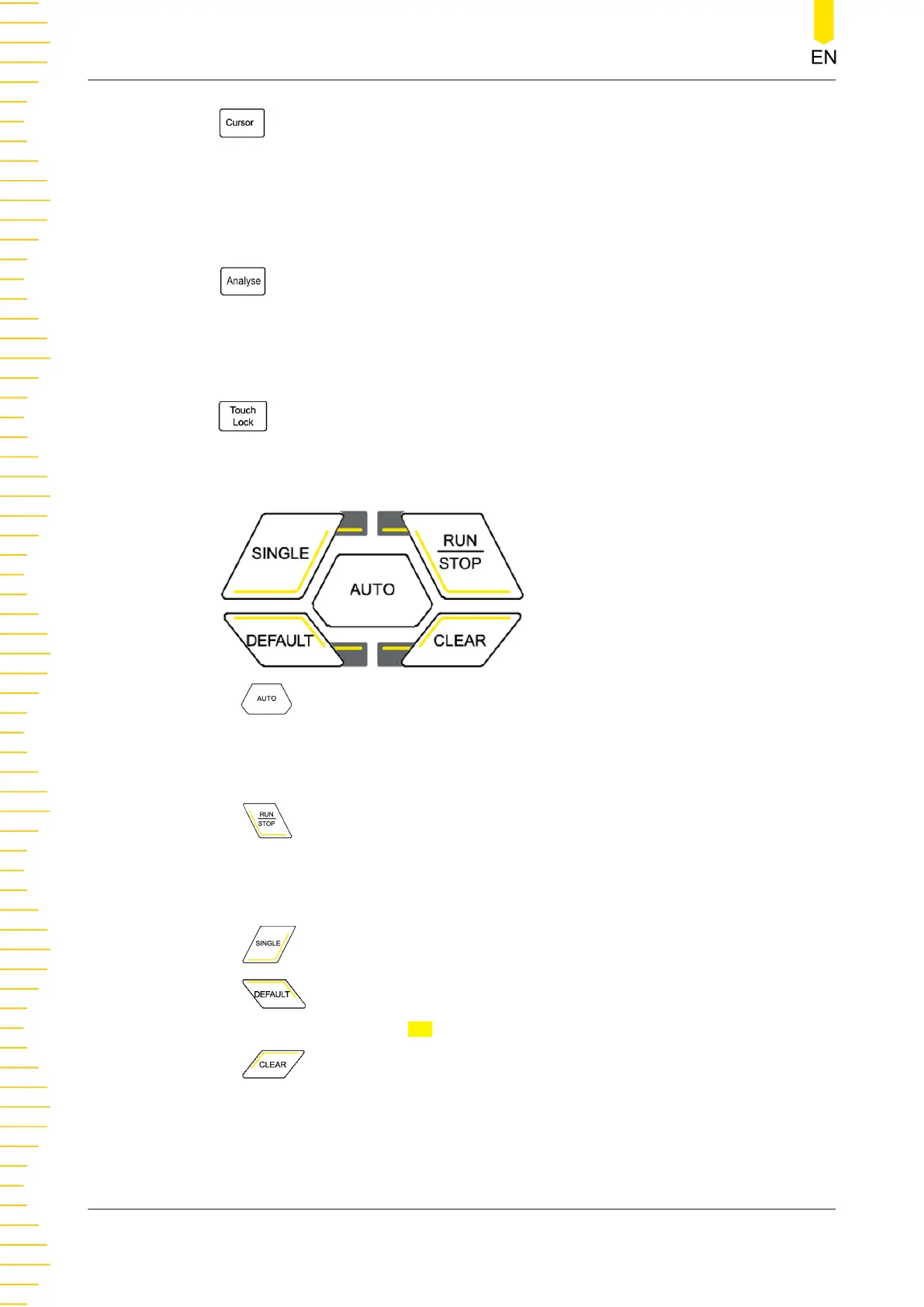

: press this key to enter the cursor measurement interface. The measurement
results are displayed in the result list. The oscilloscope provides three cursor
modes: Manual, Track, and XY. XY mode is only available when the XY function is
enabled.
5. Analyse Key
: press this key to enter the "Analyse" interface. You can click or tap "DVM",
"Counter", "UPA", "Record", and "Pass/Fail" to enter the specified function
interface.
6. Touch Lock Key
: press this key to disable the touch screen. Once disabled, press this key
again to enable the touch screen.
7. Common Operation Keys
- : waveform auto setting key. Press this key to enable the waveform auto
setting function. The oscilloscope will automatically adjust the vertical scale,
horizontal time base, and trigger mode according to the input signal to realize
optimal waveform display.
-
: runs or stops the instrument. Press this key to set the operating state of
the oscilloscope to "RUN" or "STOP". In the "RUN" state, the backlight of the
key is illuminated in green. In the "STOP" state, the backlight of the key is
illuminated in red.
-
: single trigger key. Press this key to set the trigger mode to "Single".
- : default setting key. Press this key, and then a prompt message is
displayed. Click or tap
OK to restore the instrument to its default settings.
- : Clear key. Press this key to clear all the waveforms on the screen. If the
oscilloscope is in the "RUN" state, new waveforms will continue being
displayed.
8. Quick Operation Key (Related to quick operation setting)
Quick Start
MHO2000 User Guide
24
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
