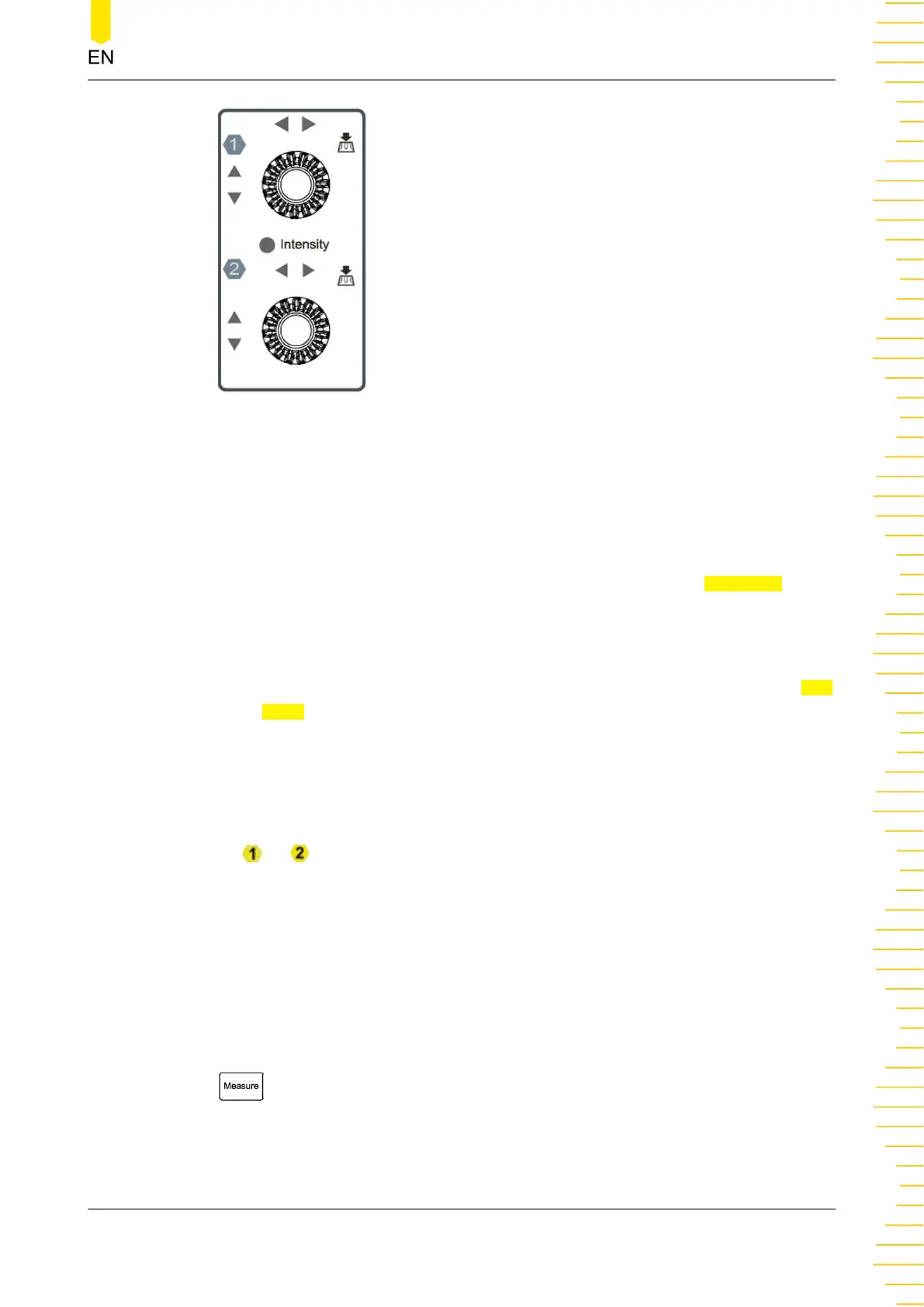

- Non-menu Operation:
In non-menu-operation mode, rotate knob 1 to adjust the brightness of
waveform display. When a cursor, decoding, Math waveform, or reference
waveform is added on the screen, rotate the multifunction knob (knob 1 and 2)
to move the cursor, adjust the decode threshold (knob 1) and decode result
display position (knob 2), adjust the vertical scale (knob 1) and vertical offset
(knob 2) of the math/reference waveform. You can click or tap
Flex Knob on the
toolbar at the upper-right of the screen to set the priority.
- Automatic: Cursor > (Math/Ref/Decode) > Intensity (default priority).
- Manual: all non-menu operation items are listed at the lower part of the Flex
Knob menu. You can select one of them as the current item for the
multifunction knob to adjust.
- Menu Operation:
When operating on the menu, you can rotate the multifunction knob 1 or 2 to
adjust the value in the menu. When you click or tap the input field and then the
or icon is displayed in the input field, it indicates that you can use the
specified knob to set the value. The LED indicator of the corresponding knob is
illuminated. At this point, you can rotate the knob to adjust the value or press
down the knob to restore the parameter to the default value.
When using the virtual numeric keypad or selecting from the drop-down list,
you can rotate the knob to navigate through the keypad or select the item from
the drop-down list, then press down the knob to select an item.
3. Measure Key
: press this key to enter the "Measure" interface. You can set the
measurement source, select the measurement item, etc.
4. Cursor Key
Quick Start
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
23
