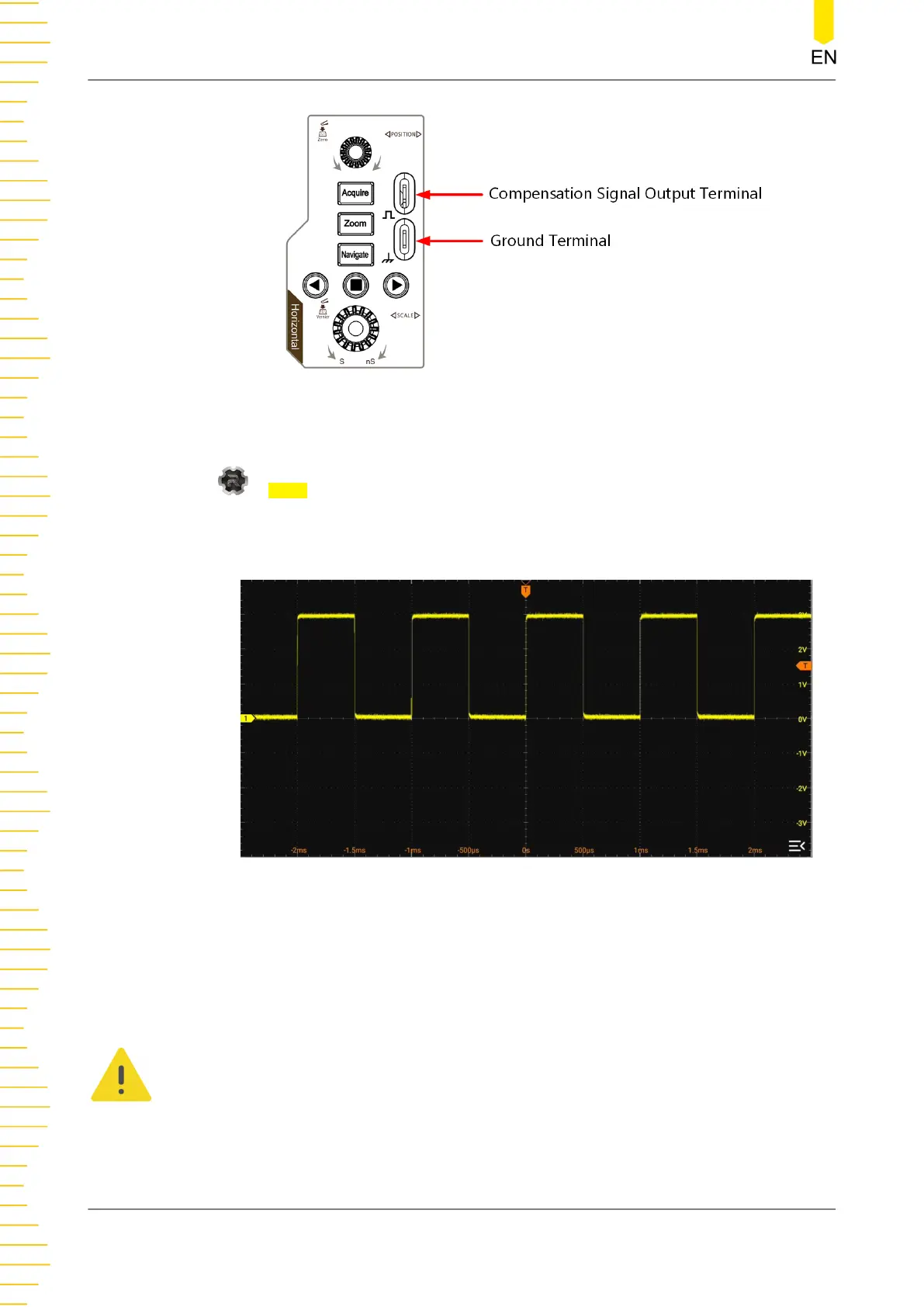

Figure 4.12 Use the Compensation Signal
4. Set the probe ratio based on the attenuation of the probe, and then click or tap
> Auto.
5. Observe the waveform on the display. In normal condition, you should see a
square waveform as shown in the figure below.
Figure 4.13 Square Waveform Signal
6. Use the same method to test other channels. If the square waveforms actually
shown do not match that in the figure above, please perform
Probe Compensation
introduced in the next section. If no waveform is displayed on the screen, perform
the above steps again.
WARNING
To avoid electric shock when using the probe, please make sure that the insulated wire of
the probe is in good condition. Do not touch the metallic part of the probe when the
probe is connected to high voltage source.
Quick Start
MHO2000 User Guide
20
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
