4.4.8 Probe Compensation
When used for the first time, the oscilloscope probe must be compensated to match
the input characteristics of the oscilloscope channel to which it is connected. The
non-compensated or poorly compensated probe may cause measurement errors. The
compensation procedure is as follows:
1. Perform step 1, 2, 3, and 4 in
Function Inspection
.

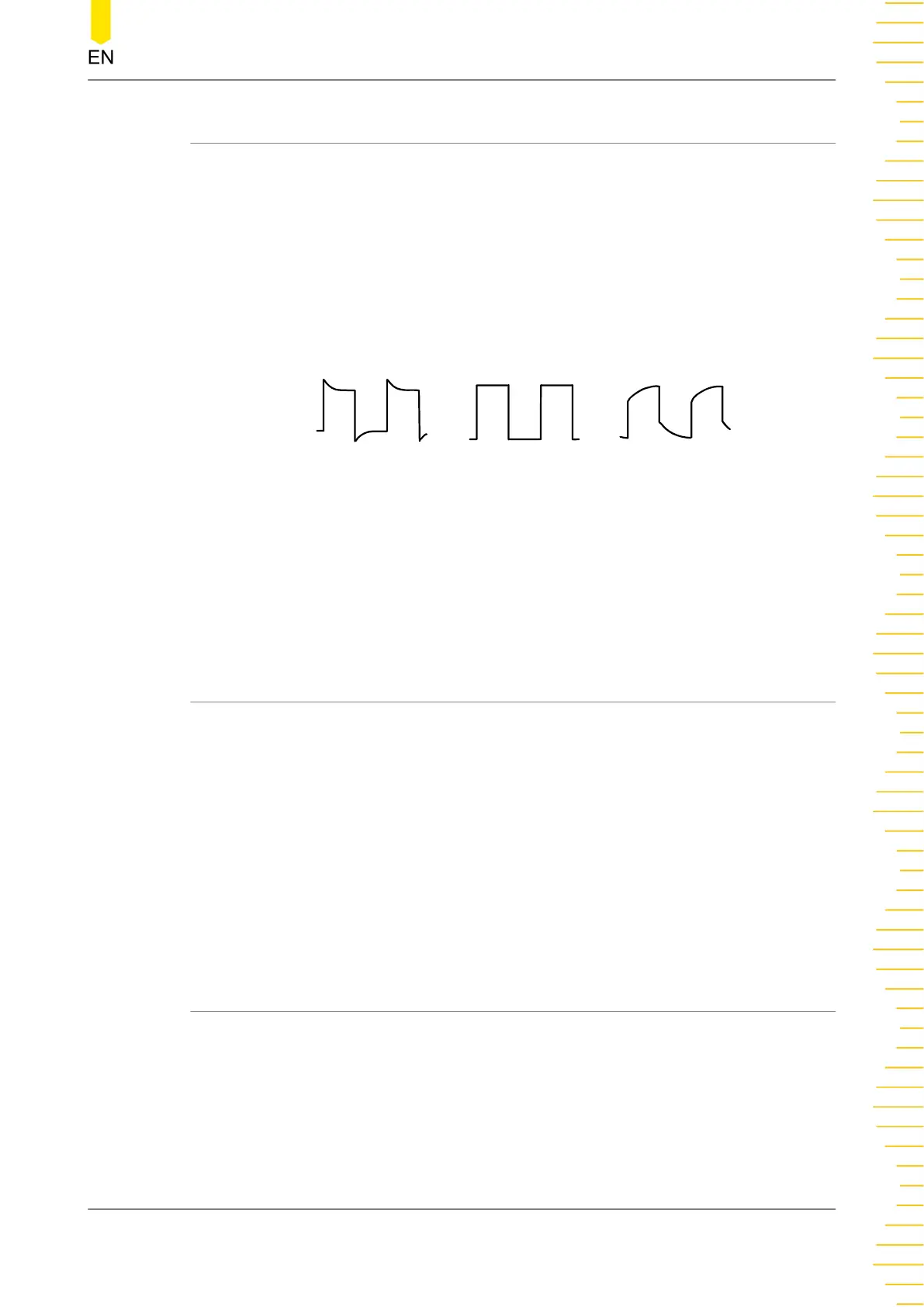

2. Check the displayed waveforms and compare them with waveforms shown in the
figure below.
Over compensated Under compensatedPerfectly compensated
Figure 4.14 Probe Compensation
3. Use the probe compensation adjustment tool provided in the accessories to adjust
the low-frequency compensation adjustment hole on the probe until the displayed
waveform is consistent with the "Perfectly compensated" waveform shown in the
figure above.
4.5 Product Overview
The MHO2000 series is a high-resolution digital oscilloscope designed for the vast
mainstream digital oscilloscope market to meet the design, debugging, and test
demands. It is developed based on RIGOL's brand new self-developed Centaurus
technical platform. Its 2 GSa/s sample rate, 1,000,000 wfms/s waveform capture rate
(in fast recording mode), 500 Mpts memory depth, 12-bit resolution, excellent noise
floor and vertical measurement accuracy can meet the test demands for higher
accuracy. Besides the enhancement of the hardware specifications, the MHO2000
series digital oscilloscope also supports AFG, digital signal analysis, and Bode plot. It
is powered by battery pack, convenient to operate and control to meet demands of
various complex test scenarios.
4.5.1 Front Panel
This document takes MHO2034 as an example to introduce the MHO2000 series.
Quick Start
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
21
