The following section illustrates the waveform effects of the frequency sweep signal
of the Sine waveform when you make a different choice in persistence time.
• Min
Enables you to view waveform changing in high refresh rate.
• Variable Persistence
Enables to view glitches that change relatively slowly or glitches with lower
occurrence probability after a certain amount of persistence time that you set.
The persistence time can be set to 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, or 10 s.
• Infinite
In this mode, the oscilloscope will never clear the previous acquisitions of the
waveforms while acquiring the new waveforms. The previous acquisitions of the
waveforms will be displayed in relatively low-brightness color and the newly
acquired waveforms will be displayed in normal brightness and color. You can
use infinite persistence to measure noise and jitter and to capture events that
occur infrequently.
23.3 Waveform Intensity
In Display menu, drag the slide bar of Wave Intensity to set the brightness of
waveforms. The default is 50%, and the range available is from 1% to 100%.

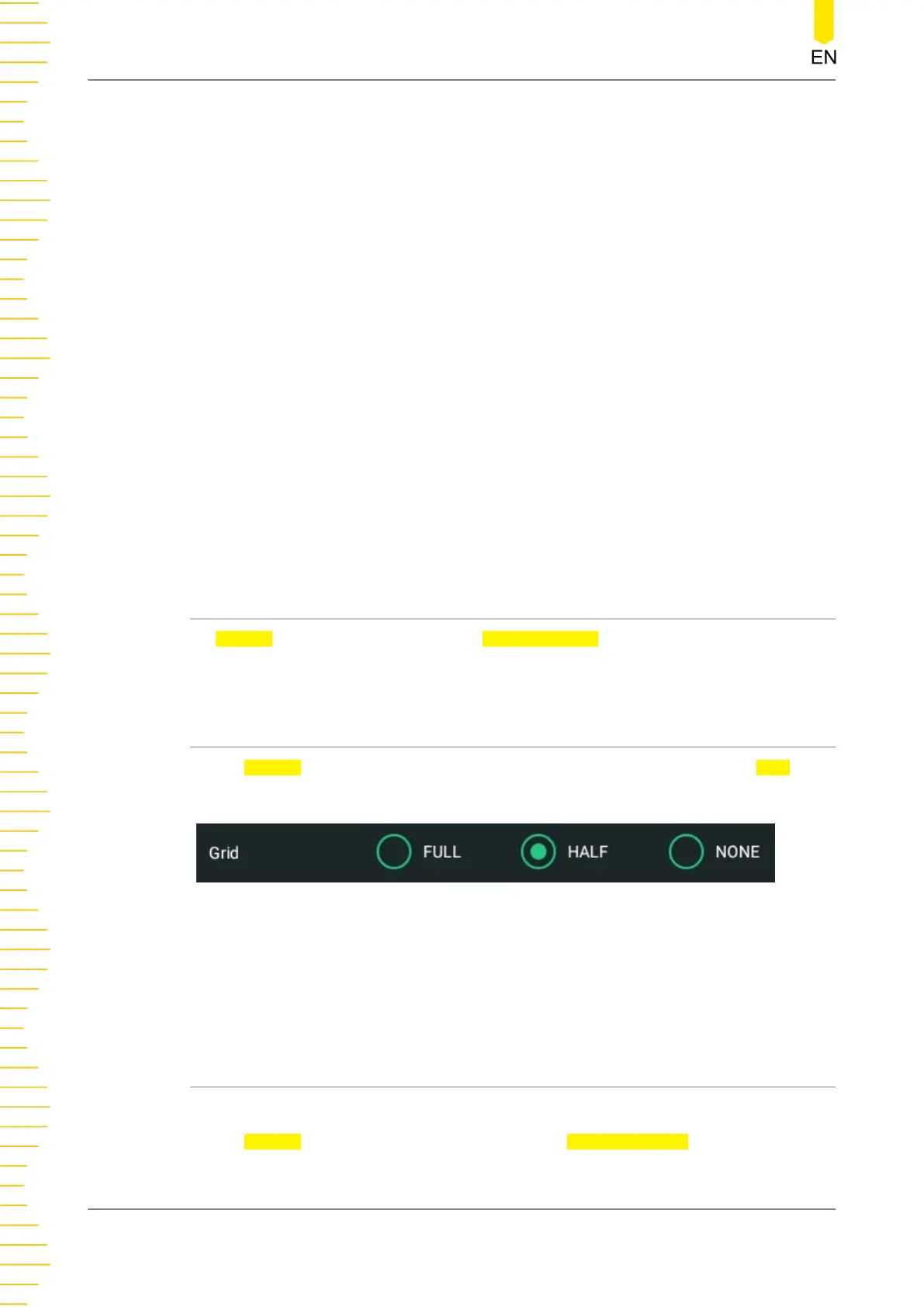

23.4 To Set the Screen Grid
In the Display setting menu, click or tap "FULL", "HALF", or "NONE" for the Grid
menu.
• FULL: turns the background grid and main coordinates on.
• HALF: turns the main coordinates off, with the background grid on.
• NONE: turns the background grid and main coordinates off.
23.5 Display Setting
Grid Brightness
In the Display setting menu, drag the slide bar of Grid Brightness to set the grid
brightness. The default is 50%, and the range available is from 0% to 100%.
Display Control
MHO2000 User Guide
268
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
