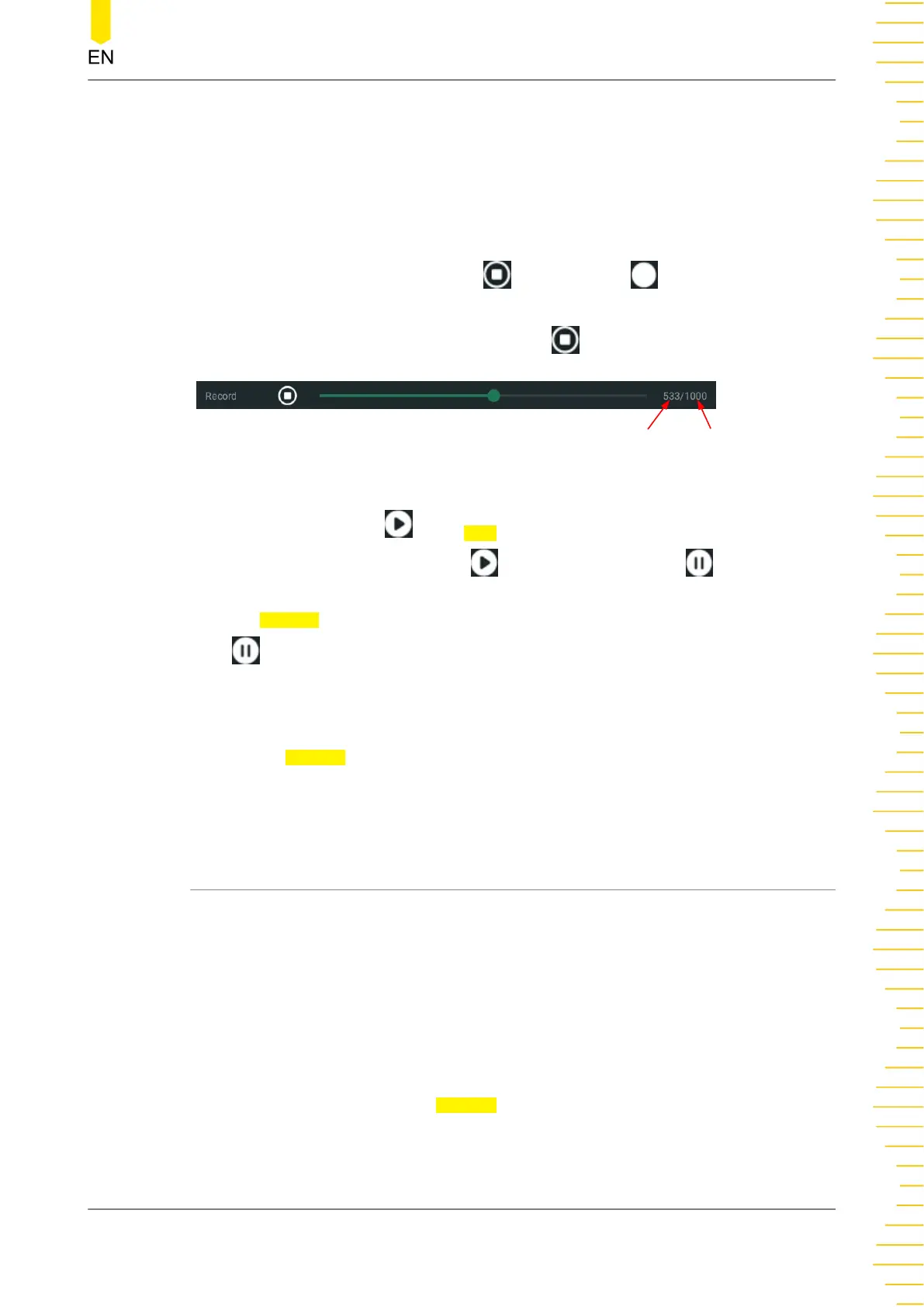

• The figure at the right side of the recording progress bar shows the number of
currently recorded frames and the total number of frames that can be recorded
(Number of Currently Recorded Frames/Total Number of Frames that can be
Recorded). During the recording, the current recording information updates in a
real-time manner on the screen, and the number of currently recorded frames
changes constantly.
• After the recording is completed,
turns out to be and recording stops
automatically.
• During recording, you can also click or tap
to suspend recording manually.
Currently Recorded Frames
Total Frames
Play Operation
Click or tap the play icon in the Play menu to start to play the recorded
waveforms. The play icon turns from to the pause action icon . For details
about playing, refer to descriptions in
Play Options
. During waveform playing, the
value of Current changes dynamically. During playing, you can also click or tap the
icon again to suspend playing manually. ΔT indicates the time interval between
the current frame played and the first frame.
Storage
Click or tap
Storage, then it goes to the storage interface. For the detailed operation,
refer to descriptions in
To Save the Wave
to save the recorded waveforms based on
the settings.
21.2 Record Options
During the waveform recording, the oscilloscope records the waveforms of the
currently enabled channel at a specified interval until you manually stops the
recording operation or the number of recorded frames has reached the set value.
Before recording the waveforms, set the following parameters.
1. Interval
Indicates the time interval between the frames during the recording process.
Click or tap the input field of Interval to set the interval between frames with the
pop-up numeric keypad. You can also rotate the specified multifunction knob
indicated in the field to set the value. The available range is from 10 ns to 1 s.
Waveform Recording and Playing
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
257
