Waveform Recording and Playing
Records the waveforms and plays back the recorded waveforms to make an analysis
of the waveforms.
To enter the waveform recording menu, perform one of the following operations.
• Click or tap the function navigation icon at the lower-left corner of the
screen to open the function navigation menu. Click or tap to select Record to
enter the waveform recording interface.
• Click or tap the Record icon on the quick operation toolbar to enter the
waveform recording interface.
• Press
on the front panel, then the Analyse interface is displayed. Click or
tap Record to enter the waveform recording interface.

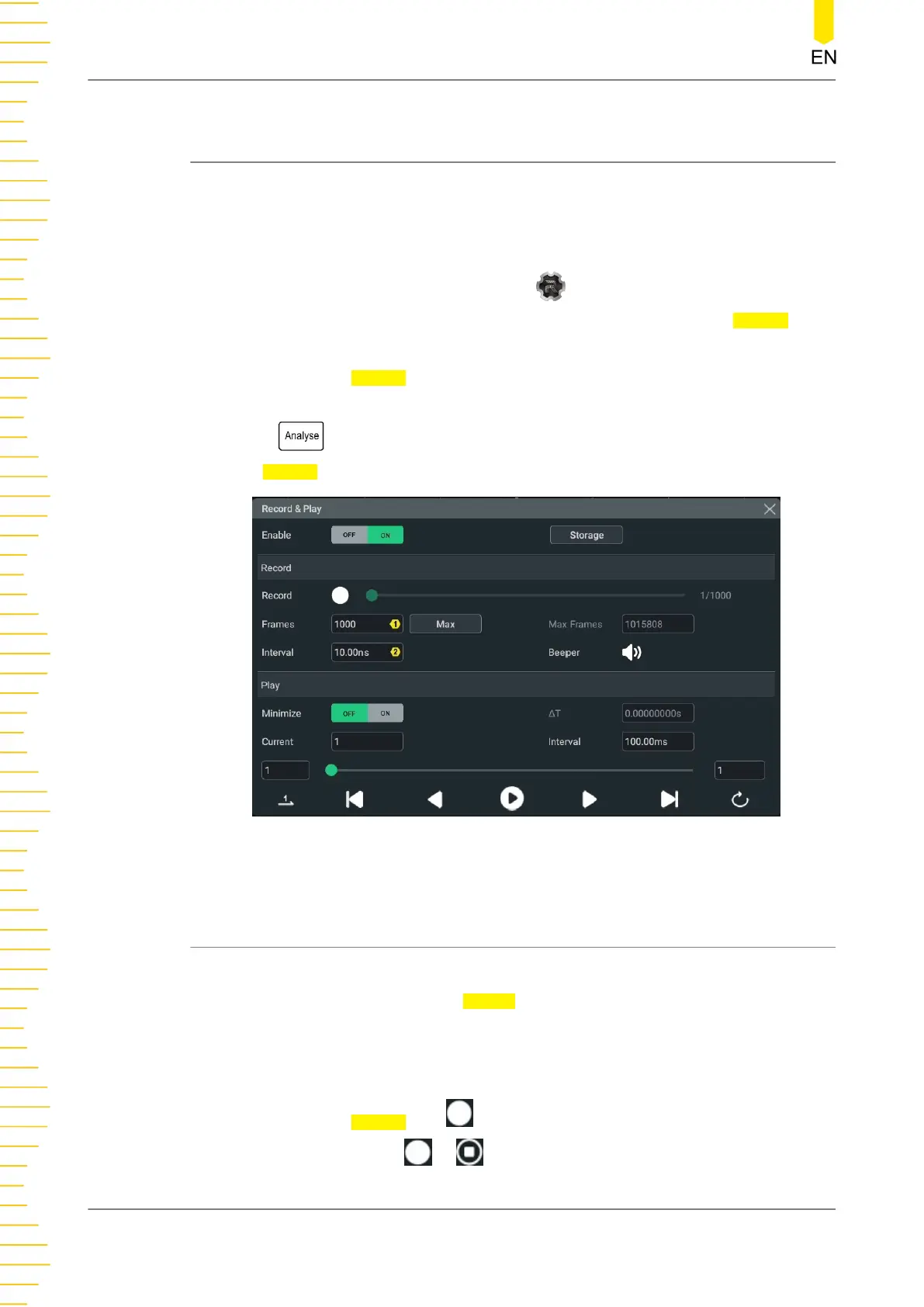

Figure 21.1 Waveform Recording Interface
21.1 Common Settings
Recording Operation
Click or tap the ON/OFF tab for the Enable menu in the Record & Play interface to
enable or disable the waveform recording and playing function. Before recording the
waveform, you can refer to descriptions in
Record Options
to set the waveform
recording parameters.
• Click or tap the Record icon to start recording the waveforms. Then the
record icon turns from to .
Waveform Recording and Playing
MHO2000 User Guide
256
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
