Select the Signal Type
Click or tap the drop-down button of Signal to select a signal type that matches the
CAN bus signal. The available signal types include CAN_H, CAN_L, Rx, Tx, and Diff.
• CAN_H: indicates the actual CAN_H bus signal.
• CAN_L: indicates the actual CAN_L bus signal.
• Rx: indicates the Receive signal from the CAN bus transceiver.
• Tx: indicates the Transmit signal from the CAN bus transceiver.
• Diff: indicates the CAN differential bus signals connected to the source channel
by using a differential probe. Connect the probe's positive lead to the CAN_H
bus signal and connect the negative lead to the CAN_L bus signal.
Specify the Standard Signal Rate
Click or tap the drop-down button of
Baud to select the preset baud rate from the
drop-down list. The available baud rates include 10.0 kbps, 19.2 kbps, 20.0 kbps, 33.3
kbps, 38.4 kbps, 50.0 kbps, and etc. You can also click or tap User to set a user-
defined baud rate.

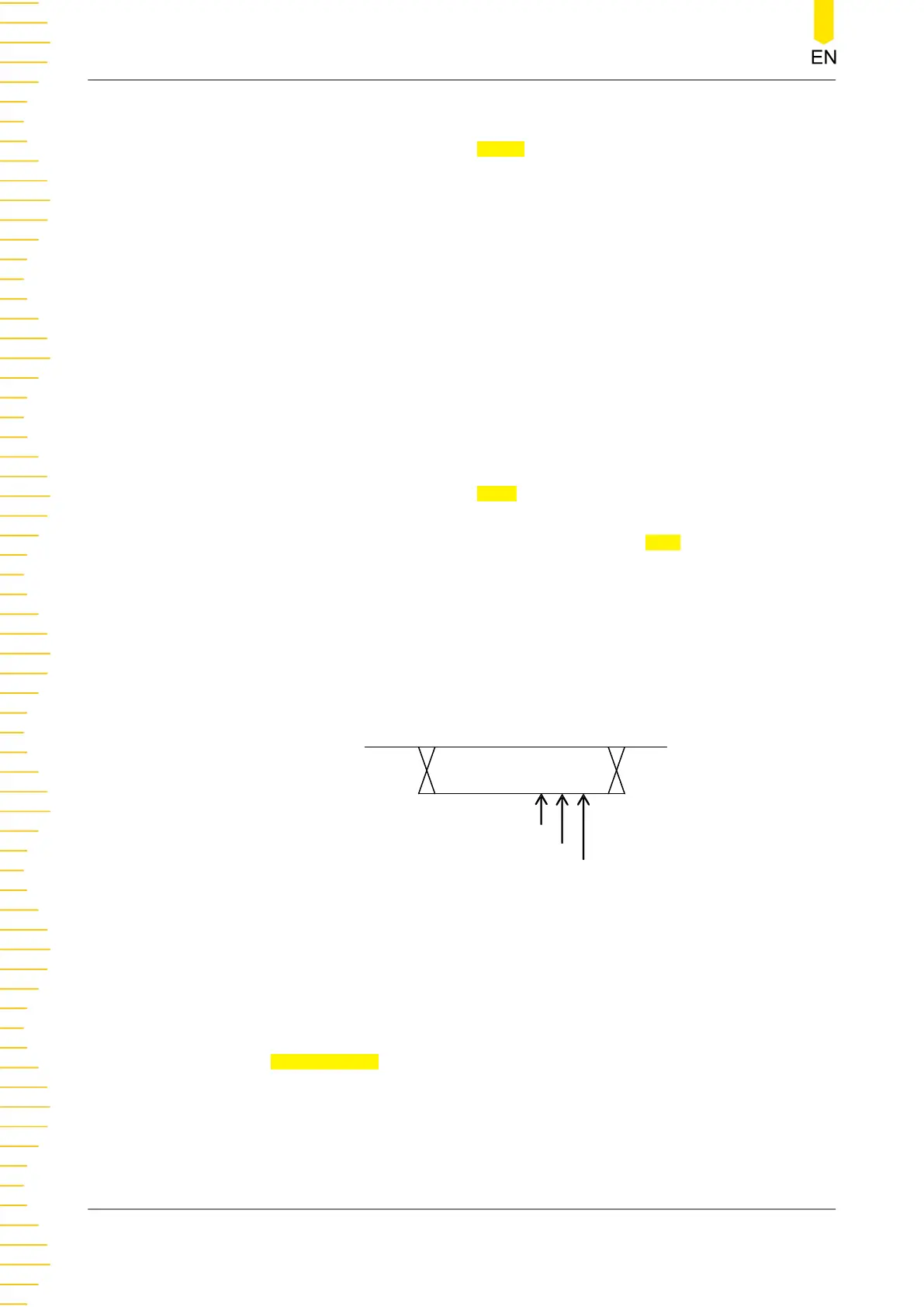

Sample Position
Sample position is a point within a bit’s time. The oscilloscope samples the bit level
at this point. The sample position is represented by the proportion of "the time from
the start of the bit to the sample point" to the "bit time", as shown in the figure
below.
One Bit
60%
70%
80%
Figure 19.14 Sample Position
Set the CAN-FD Baud
CAN-FD baud rate is a dedicated setting for the CAN-FD decoding. It is available only
when the MHO2000-AUTOA option has been installed. Click or tap the drop-down
button of
CAN-FD Baud to select the variable baud rate from the drop-down list. The
available baud rates include 1 Mbps, 2 Mbps, 3 Mbps, 4 Mbps, and etc.
Set the FD Sample Position
FD sample position a dedicated setting for the CAN-FD decoding. It is available only
when the MHO2000-AUTOA option has been installed. Click or tap the input field of
Protocol Decoding
MHO2000 User Guide
238
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
