FD Sample Position to set the sample position of the CAN-FD decoding with the
pop-up numeric keypad. You can also use the specified knob to set it. The settable
range is from 10% to 90%.
19.5.2 Display-related Setting
In the Decode menu, set the following display-related parameters.
Set the Display Format
Click or tap the drop-down button of Format to select the display format of the bus
data and that of the event table. The available formats include "Hex", "Dec", "Bin",
and "ASCII".
Set the Label Display
Click or tap the ON/OFF tab for Label to enable or disable the label display of the
decoding bus. When enabled, the bus label will be displayed at the upper-left side of
the bus (when the bus display is enabled). The label shows the current bus type.
19.5.3 Event Table
When the event table is enabled, the event table window of the specified decoding is
displayed on the screen. The decoding information is shown in the event table.
Line No.
Frame ID
Data Length Code Decoded Data
CAN Bus
Cyclic Redundancy Check

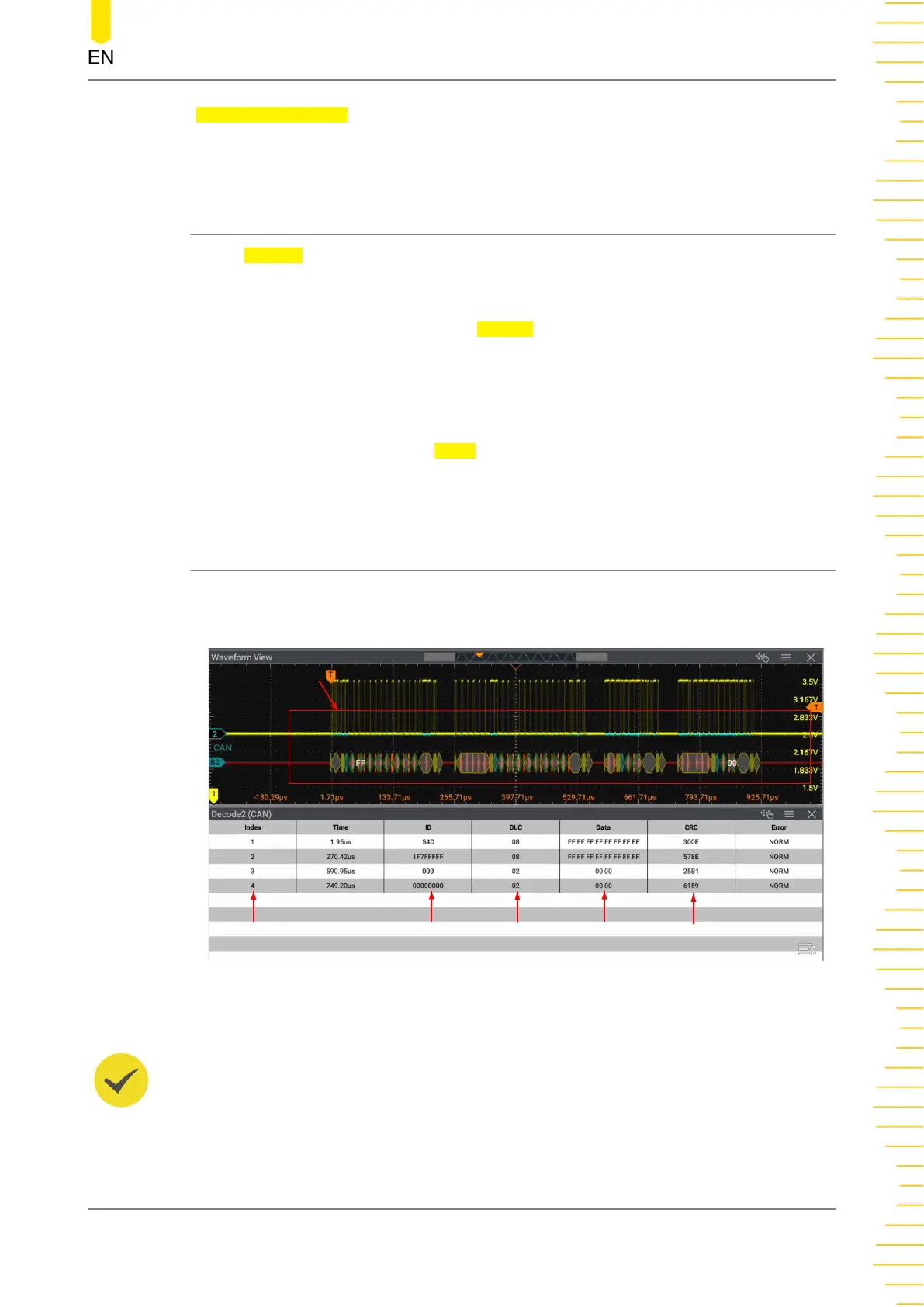

Figure 19.15 CAN Decoding Event Table
TIP
• When you adjust the horizontal time base, the waveform displayed on the screen will also
change, and the total number of lines containing the decoding information in the event
table will also be changed.
Protocol Decoding
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
239
