In the Decode menu, click or tap the drop-down button of Bus Type to select CAN,
then configure the parameters for CAN decoding.Wherein, CAN-FD Baud and FD
Sample Position are available when you have installed the MHO2000-AUTOA option.
The CAN-FD Baud is the baud rate of the CAN-FD bus.

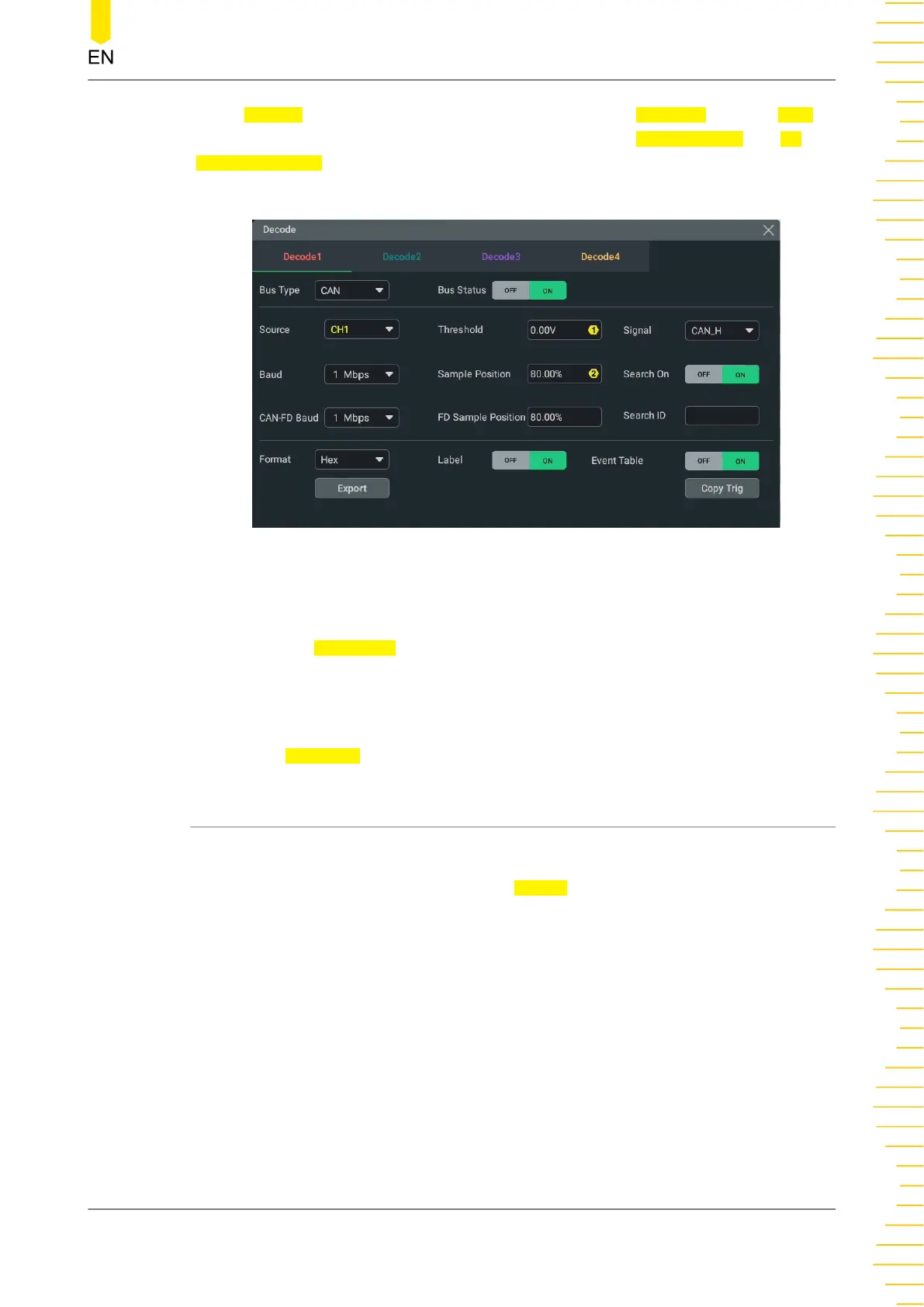

Figure 19.13 CAN Decoding Menu
Bus Status
Click or tap the Bus Status on/off switch to enable or disable the bus decoding.
Quickly Apply Trigger Settings to Decoding
Copy trig indicates applying the trigger settings to the specified decoding setting.
Click or tap
Copy Trig to apply the trigger settings to the specified decoding setting.
19.5.1 Signal Configuration
Set the Source and the Threshold
• Click or tap the drop-down button of Source to select the desired source from
the drop-down list. The sources include analog channels, digital channels, and
Math1-Math4.
• When an analog channel or Math1-Math4 is selected as the source, you can set
the threshold for the specified channel with the pop-up numeric keypad. You can
also use the specified multifunction knob to set the threshold.
When you modify the threshold, a dotted line displaying the current threshold
level is displayed on the screen. It disappears in about 2 s after you stop
modifying the threshold.
Protocol Decoding
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
237
