RS232 Bus
TimeLine No. Tx/Rx Data Error

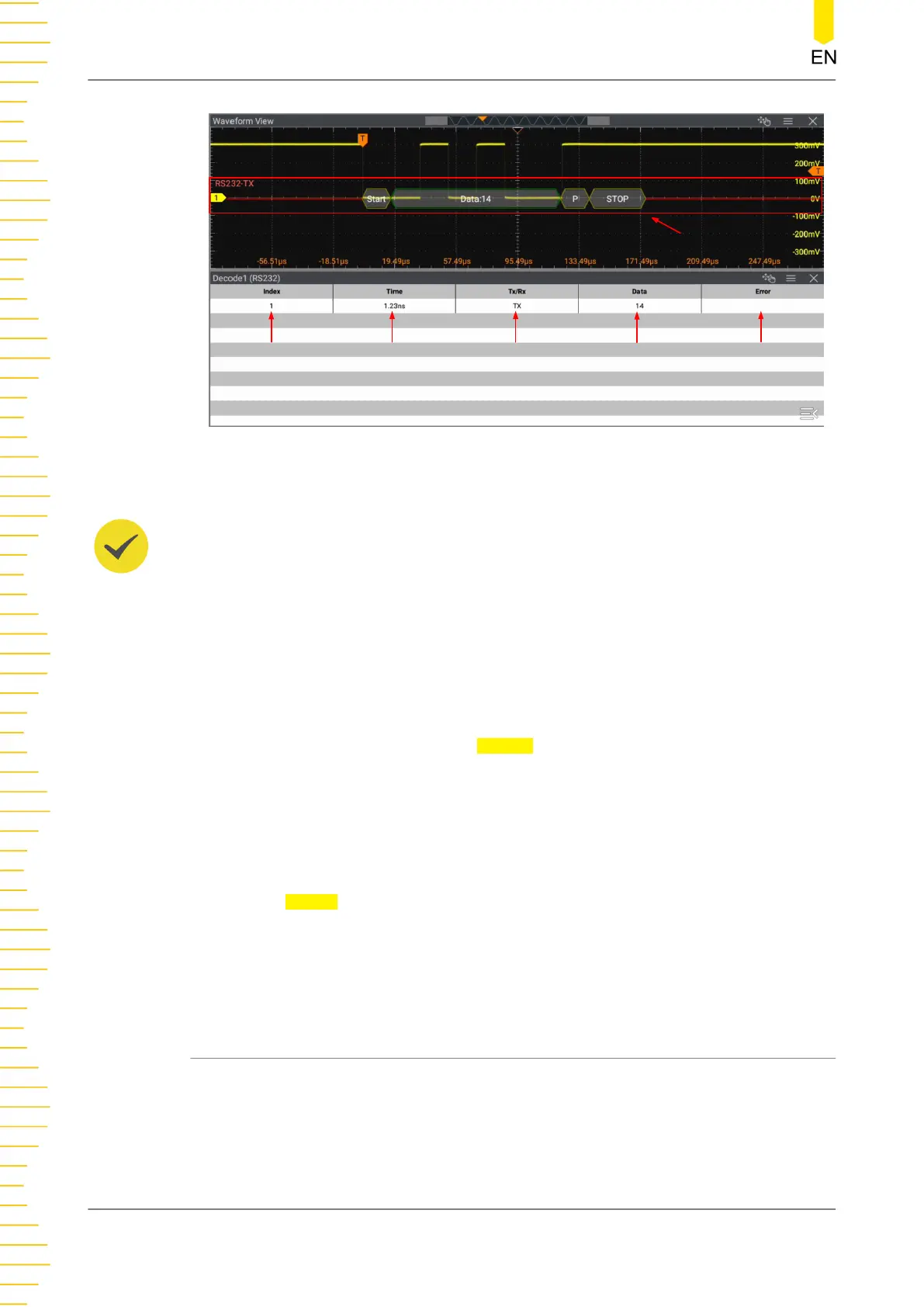

Figure 19.6 RS232 Decoding Event Table
TIP
• When you adjust the horizontal time base, the waveform displayed on the screen will also
change, and the total number of lines containing the decoding information in the event
table will also be changed.
• The displayed decoded data information in the bus is related to the value of the
horizontal time base. Reducing the horizontal time base can help you view the detailed
information.
Set the Event Table Format
Click or tap the drop-down button of Format to select the display format of the event
table. The available formats include "Hex", "Dec", "Bin", and "ASCII".
Export
When the operating status of the instrument is STOP, you can export the time and
corresponding decoding data from the current event table.
Click or tap
Export to enter the file export interface. You can export the data list to
the internal memory or the external USB storage device (when detected) in "*.csv"
format. The detailed export operation is similar to the save operation, you can refer to
relevant descriptions in
To Store and Load
.
19.3 I2C Decoding
I2C serial bus consists of the clock line (SCL) and the data line (SDA).
SCL: samples SDA on the rising or falling edge of the clock.
SDA: indicates the data channel.
Protocol Decoding
MHO2000 User Guide
228
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
