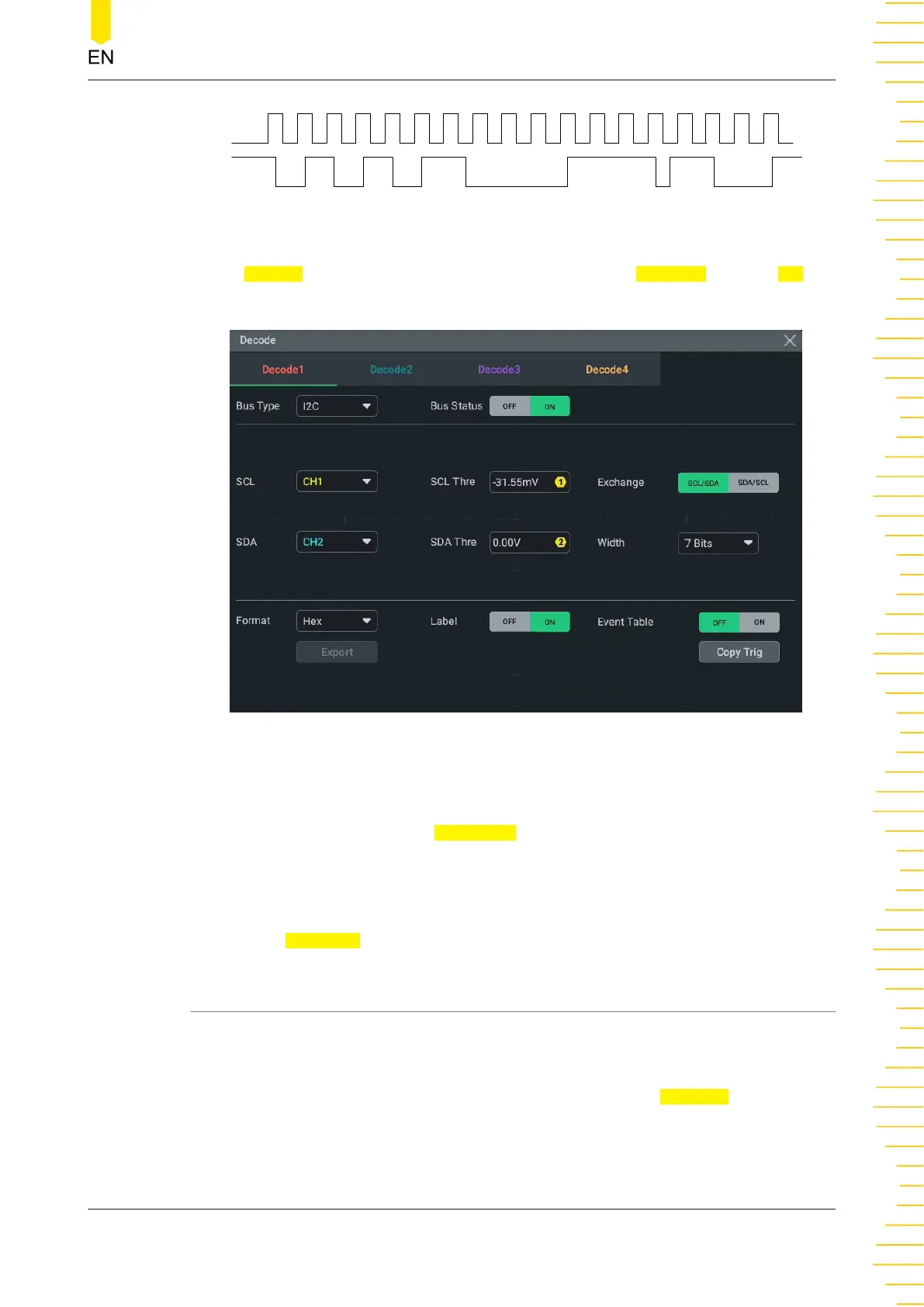

SCL
SDA
Figure 19.7 I2C Serial Bus
In the Decode menu, click or tap the drop-down button of Bus Type to select I2C,
then configure the parameters for I2C decoding.
Figure 19.8 I2C Decoding Menu
Bus Status
Click or tap the ON/OFF tab for Bus Status to enable or disable the bus decoding.
Quickly Apply Trigger Settings to Decoding
Copy trig indicates applying the trigger settings to the specified decoding setting.
Click or tap
Copy Trig to apply the trigger settings to the specified decoding setting.
19.3.1 Source Setting
Set the Clock Channel and Data Channel
• You can select the analog channel or the digital channel as the clock source.
When the source is set to an analog channel, you can set SCL Thre with the pop-
up numeric keypad. You can also use the specified multifunction knob to set the
threshold.
Protocol Decoding
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
229
