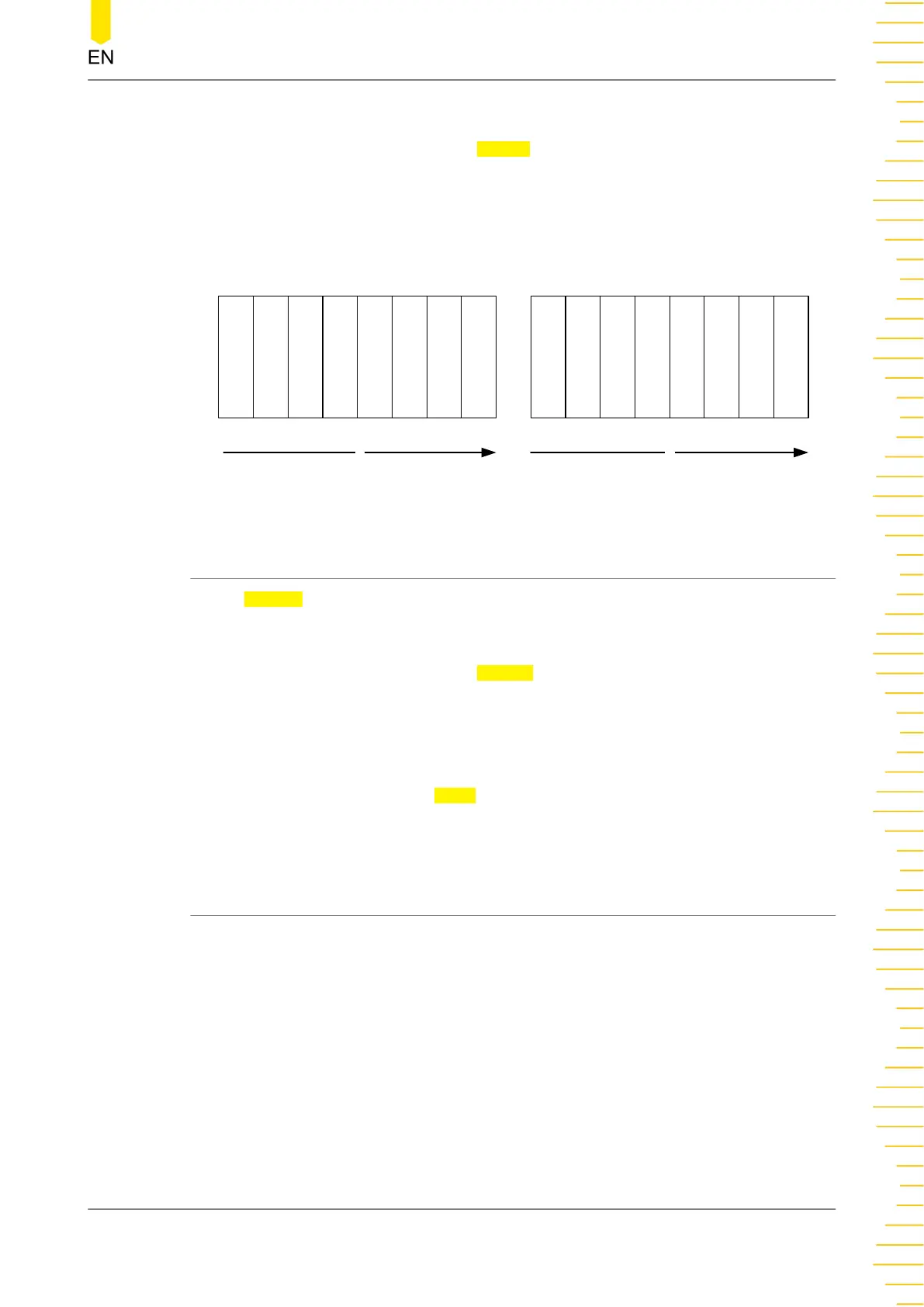

Endian
Click or tap the drop-down button of Endian to select the desired endian.
• LSB: indicates Least Significant Bit transmission sequence, i.e. the lowest bit of
the data is transmitted first.
• MSB: indicates Most Significant Bit transmission sequence, i.e. the highest bit of
the data is transmitted first.
bit0
bit1
bit2
bit3
bit4
bit5
bit6
bit7
bit7
bit6
bit5
bit4
bit3
bit2
bit1
bit0
t
t
LSB MSB
19.2.3 Display-related Setting
In the Decode menu, set the following display-related parameters.
Set the Display Format
Click or tap the drop-down button of Format to select the display format of the bus
data and that of the event table. The available formats include "Hex", "Dec", "Bin",
and "ASCII".
Set the Label Display
Click or tap the ON/OFF tab for Label to enable or disable the label display of the
decoding bus. When enabled, the bus label will be displayed at the upper-left side of
the bus (when the bus display is enabled). The label shows the current bus type.
19.2.4 Event Table
When the event table is enabled, the event table window of the specified decoding is
displayed on the screen. The decoding information is shown in the event table.
Protocol Decoding
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
227
