you can use the specified multifunction knob indicated in the input field to set the
value.

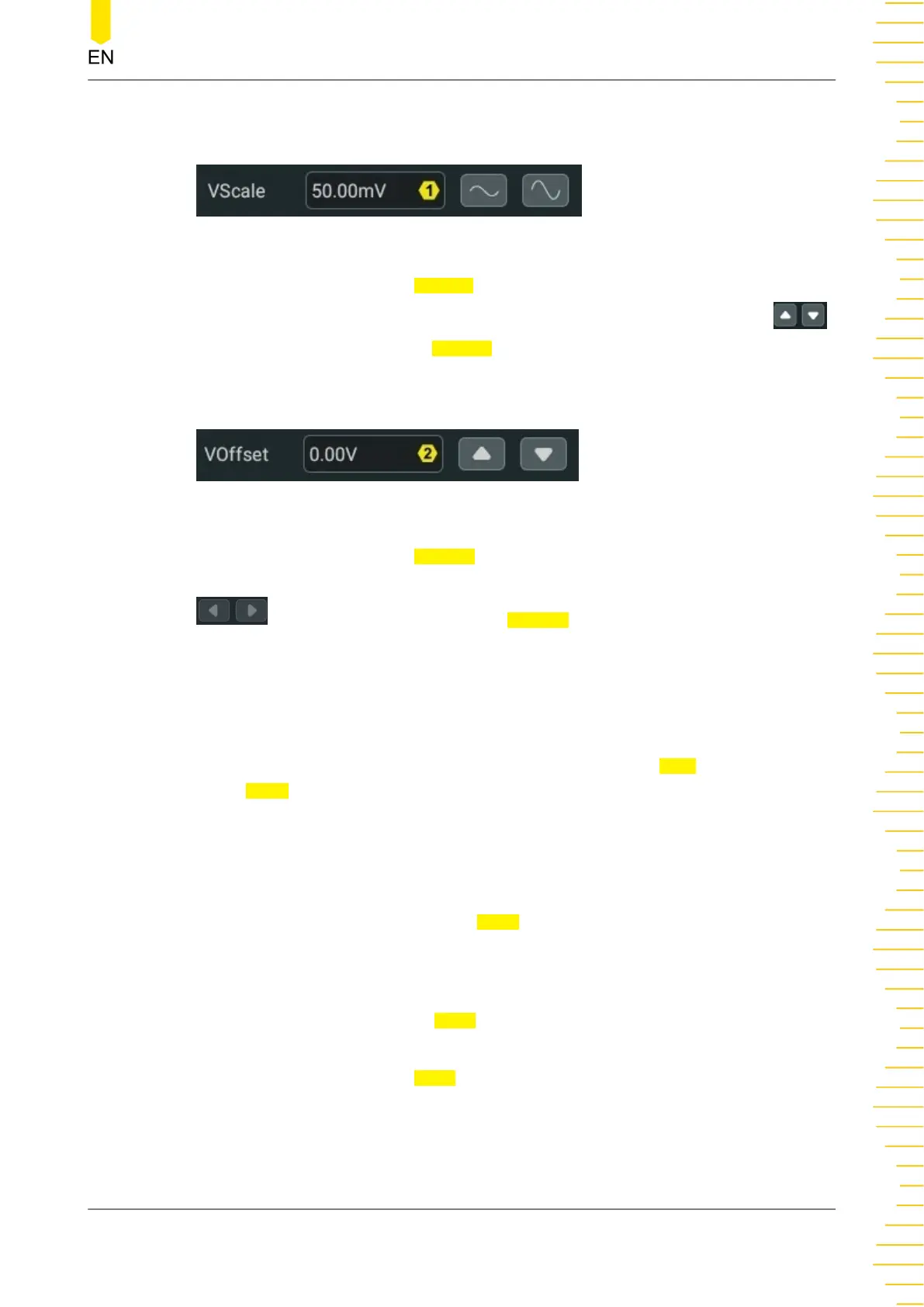

Modify the Vertical Offset
Click or tap the input field of
VOffset to set the vertical offset of the reference
waveform with the pop-up numeric keypad. You can also click or tap the icon
at the right of the input field of VOffset to increase or decrease the vertical offset.
Also, you can use the specified multifunction knob indicated in the input field to set
the value.
Horizontal Offset
Click or tap the input field of HOffset to set the horizontal offset of the reference
waveform with the pop-up numeric keypad. You can also click or tap the icon
at the right of the input field of HOffset to increase or decrease the
horizontal offset. Also, you can use the specified multifunction knob indicated in the
input field to set the value.
Reset the Reference Waveform
After you have done the save operation for the reference waveform and you want to
restore the reference waveform to the position prior to its last
Save operation, Click
or tap Reset.
Set the Reference Waveform Color
This series oscilloscope provides five colors (gray, green, light blue, red, and orange)
to mark the reference waveforms of different channels to distinguish them.
Click or tap the drop-down button of
Color to select the color of the reference
waveform of the channel.
Set the Reference Waveform Label
Click or tap the ON/OFF tab for
Label to enable or disable the label display of the
specified reference waveform.
Click or tap the input field of
Label to set the label of the specified reference
waveform with the pop-up numeric keypad.
Reference Waveform
