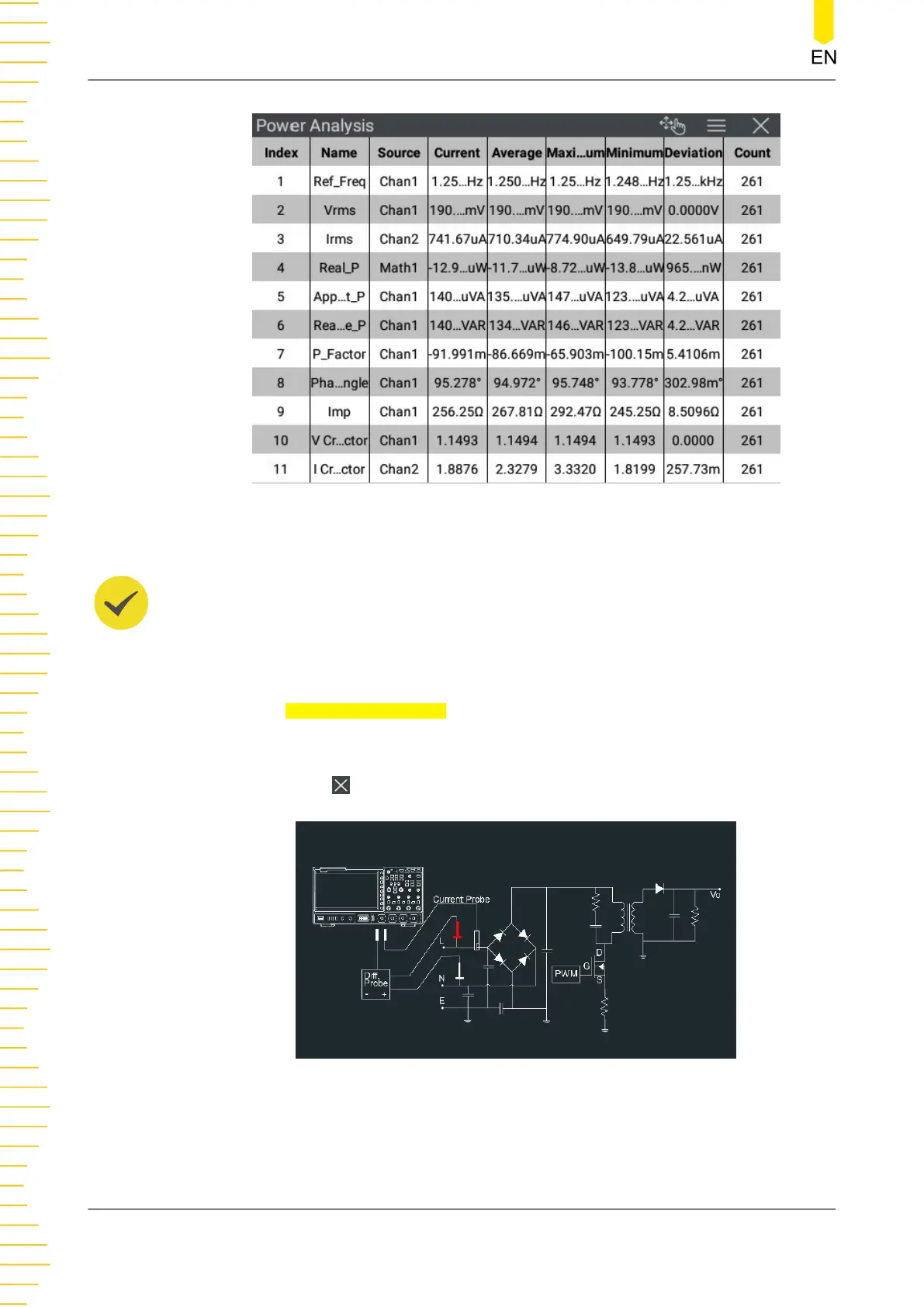

Figure 16.2 Power Quality Analysis Result Display
TIP
When the power quality analysis is enabled, its result is displayed on the screen. Meanwhile,
the multiplication operation is also enabled automatically.
View the Connection Diagram
Click or tap
Connection Diagram, and then the connection diagram of the power
quality analysis is displayed on the screen. Please connect the cables according to the
connection method in the diagram. To close the connection diagram window, click or
tap the close icon
at the upper-right corner of the connection diagram window.
Figure 16.3 Connection Diagram of Power Quality Analysis
Power Analysis (Option)
MHO2000 User Guide
206
